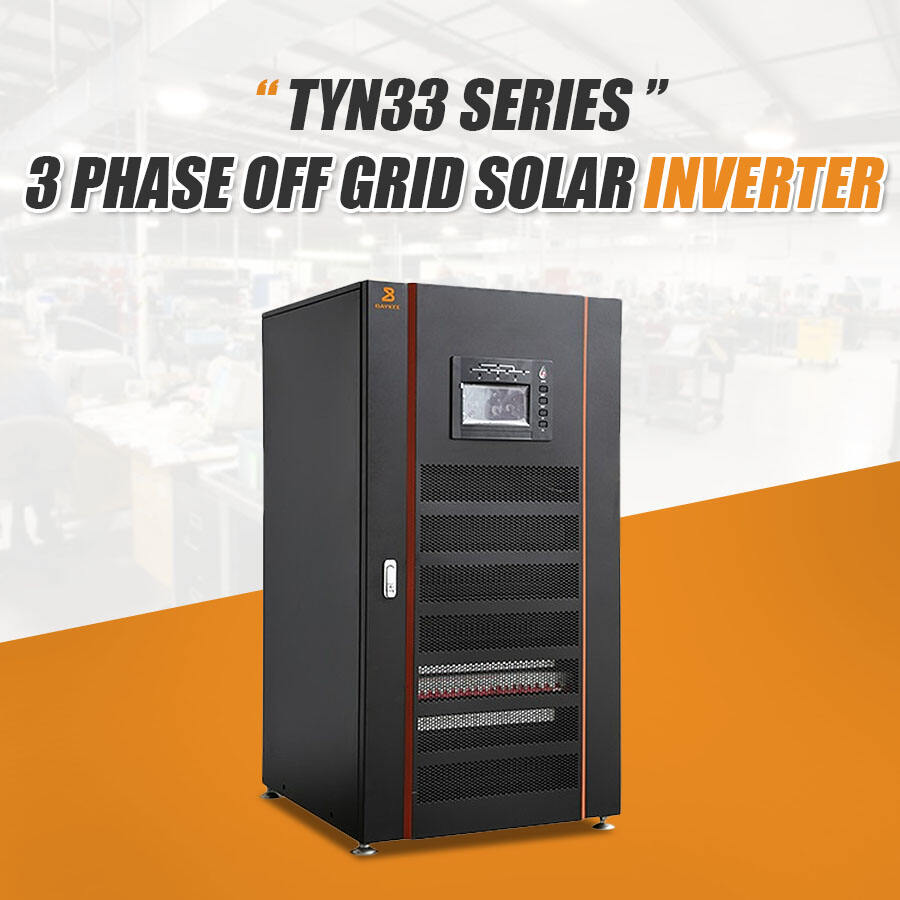

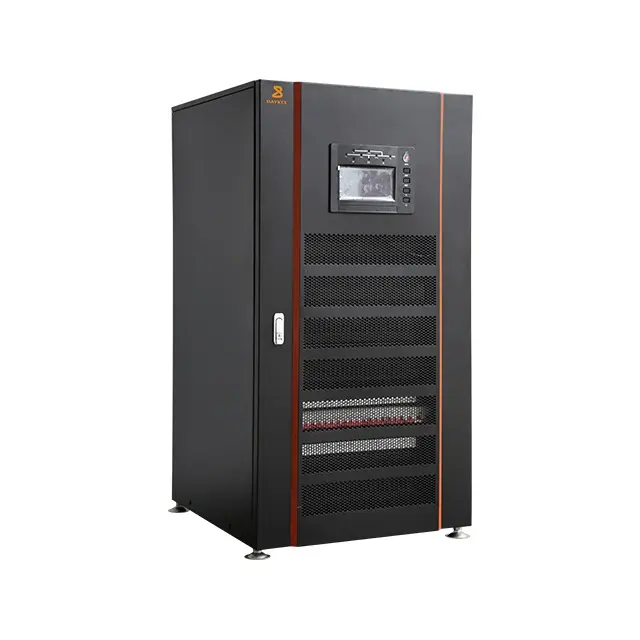

TYN33 Series 3 phase off grid solar inverter
TYN33 Series 3 phase off grid solar inverter consist of MPPT solar Controller (high-power MPPT Controller external installation), charger, rectifier, inverter, static switch, main control circuit and display alarm circuit and so on. Widely applicant in the off grid solar pv system, mean to take use of the solar energy.
The advantage of TYN33 series 3 phase off grid solar inverter
- Pure sine wave output
- Built-in MPPT solar controller
- AC charging mode and solar charging mode, solar chargingpriority.
- two work mode: Solar-Grid-Battery, Solar –battery-Grid, Can choose it by LCD screen
- High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
- Intelligent detecting function.
- Excellent load feature : 0-100% while no need to change to bypass, which make sure the output reliable.
- RS232 and RS485 standard collocation, optional SNMP and dry contact.
- Many protection :Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
- Selectable battery inspection module
PARAMETER
Model.
Speicifications |
TYN33- 10K |
TYN33- 20K |
TYN33- 30K |
TYN33- 40K |
TYN33- 50K |
TYN33- 60K |
TYN33- 80K |
TYN33-100K |
TYN33-120K |
TYN33-160K |
TYN33-200K |
TYN33-300K |
TYN33- 400K |
| Nominal capacity (KVA) |
10 |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
120 |
160 |
200 |
300 |
400 |
| Grid |
Max input current |
21 |
41 |
61 |
81 |
101 |
121 |
162 |
202 |
242 |
323 |
404 |
606 |
808 |
| type |
3 phase +N+G |
| Line-Neutral voltage |
220/230VAC±25% |
| line-line voltage |
380/400VAC±25% |
| Input frequency |
50/60Hz±5% |
| Charge voltage |
432V±1% |
| Charge current |
<20%*Inverter capacity |
| PV |
PV input |
Open circuit voltage: 560VDC~800VDC |
|
MPPT controller output voltage |
438V |
| Maximum output current (A) |
50 |
100 |
150 |
200 |
300 |
500 |
600 |
800 |
1000 |
| Number of PV Input |
1 |
2 |
3 |
4 |
6 |
10 |
12 |
16 |
20 |
| Controller installation mode |
Built-in controller |
External controller |
| Battery |
type |
maintenance free lead-acid battery (other type battery need customize) |
| Battery voltage |
384V (2V battery 192pcs in serial or 12V battery 32pcs in serial) |
| Battery capacity |
According to backup time |
| Battery low voltage protection |
>336V |
| inverter |
inverter output waveform |
Pure sine wave, THD<3%( linear load) |
| Line-Neutral voltage |
220/230VAC±2% |
| line-line voltage |
380/400VAC±2% |
| Input frequency |
50/60Hz ±0.5% |
| Dynamic feature |
inverter output transient dynamic range less than±5%, recovery time <20mS |
| Crest factor |
3:1 |
| Overload protection |
(inverter output) overload 100% delay 10mins protect, overload 110% delay 1mins protect,overload 125% immediate protect |
| inverter effency |
>88% (100% load) |
>90% (100% load) |
| System parameter |
Transfer time |
<0.5ms (inverter--bypass) |
| Rated power |
Nominal capacity*0.8 (KW) |
| protection |
Output shortcircuit,overload,overvoltage,undervoltage, over temperature, etc protection, have audible and visual alarm |
| display |

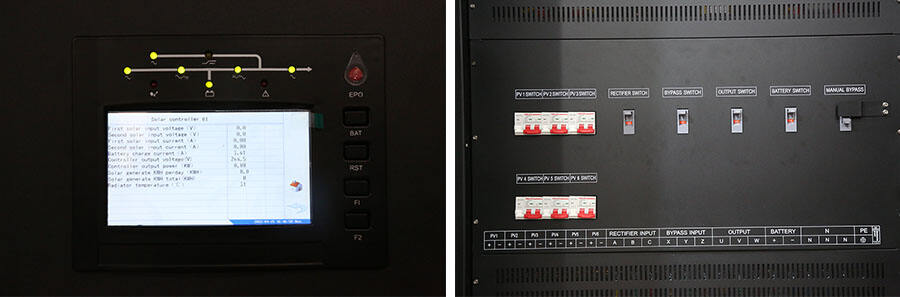

LCD display input and output voltage, output current, the inverter voltage, frequency, output current, battery voltage, PV voltage, PV charging current, temperature mode, flowcharts, current work status, event record and system information |
| Operating environment |
Temperature 0-40C |
|
Relative humidity |
30%一95% |
| Operation altitude (max) |
<1000 meters (per increase 100 meters power decrease 1%, at most 4000 meters) |
| computer communicate interface |
RS232/RS485 |
| Cooling method |
force-air cooling |
| Size WxDxH (unit : mm) |
600x620x1250 |
700x620x1530 |
980* 800* 1800 |
1380*950*1800 |
2000* 1200* 1900 |
| Weight (kg) |
236 |
265 |
342 |
407 |
506 |
800 |
950 |
980 |
1440 |
1760 |
2800 |
3600 |
INFORNMATION

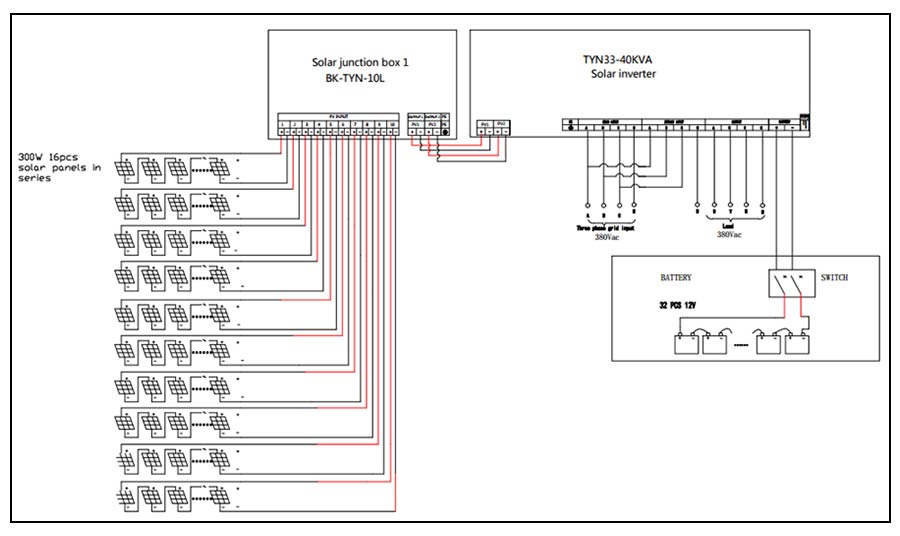

The wire collecting for TYN33-40KVA

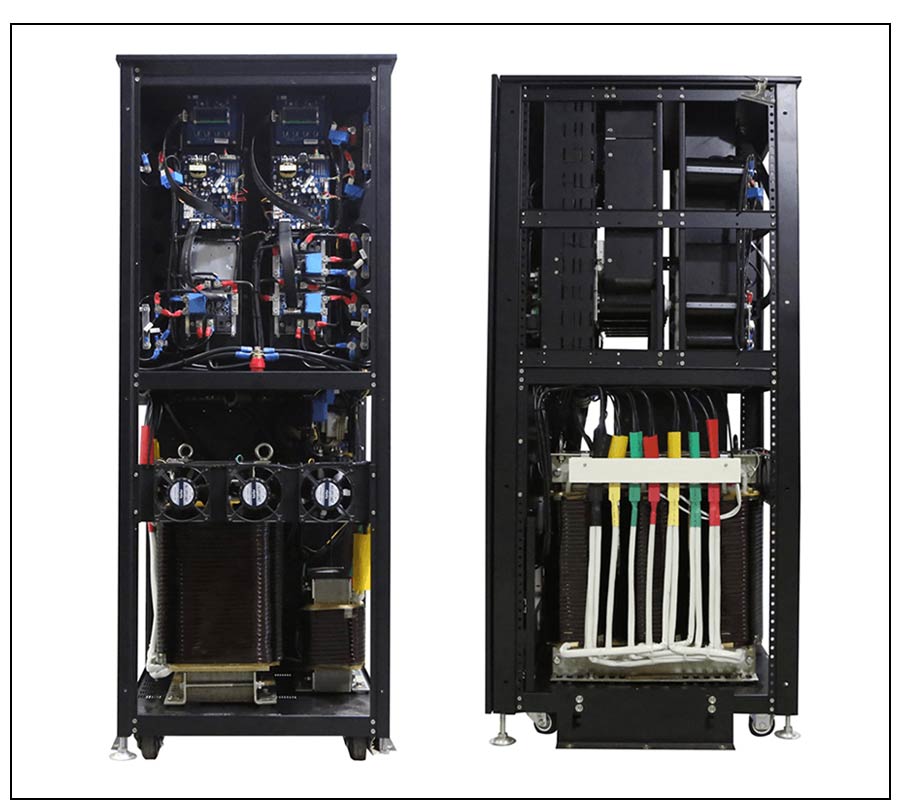

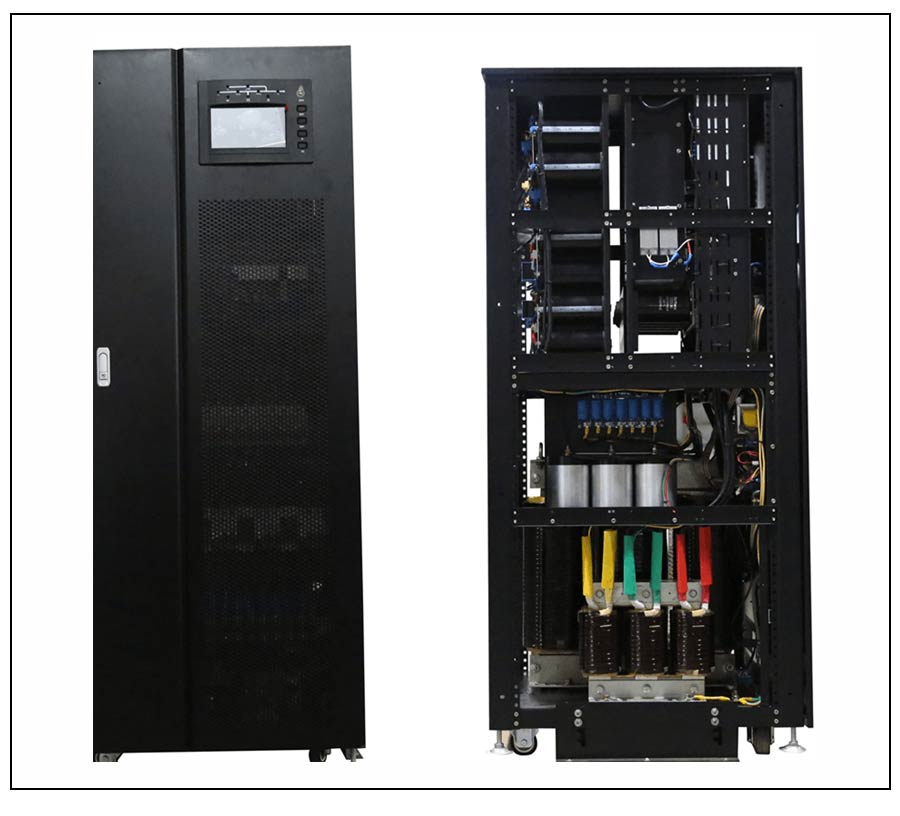

The internal structure of products

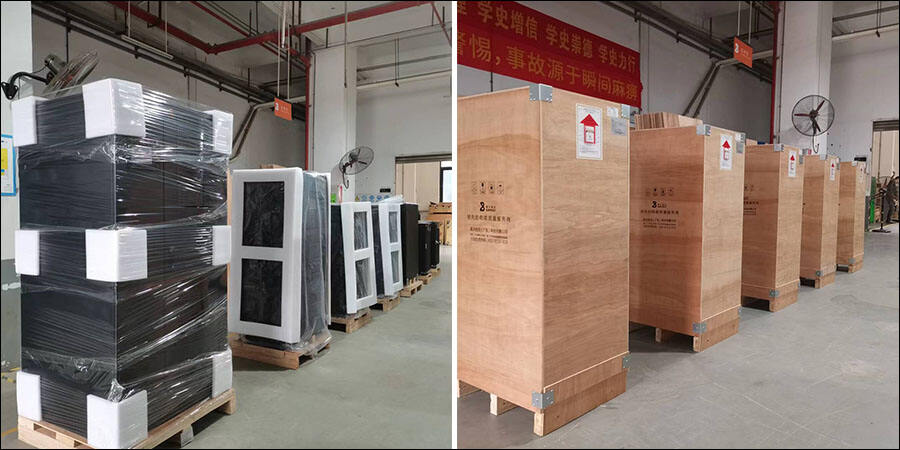

The production and packaging of TYN33 off grid solar inverter.
FAQ
Q: Why choose us?
A: We are China Leading ups&solar system Manufacturer, 11 years experience in producing and marketing
ups & solar products.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Good after-sale service: 2 years warranty and if possible we provide on-site installation and repairing
All of our products have the CE certificate, ISO9001,ISO14001,OHSAS18000,TLC authentication, and Chinese
energy conservation certification
Market covers the 100 cities and countries all over the world. Have branch office in Pakistan, Australia, etc.
If you have some problems about TYN33 series hybrid solar inverter , or want to know more details about 3 phase ups,3 phase ups system,480 volt 3 phase ups,apc 3 phase ups,3 phase ups circuit,etc. Welcome to contact us!
