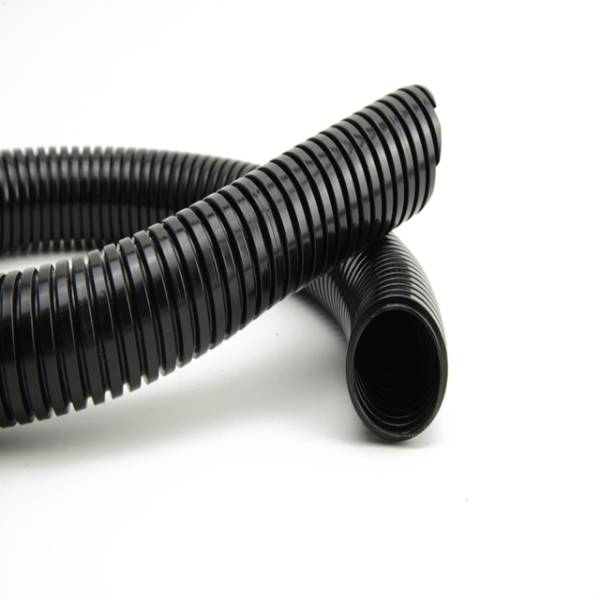

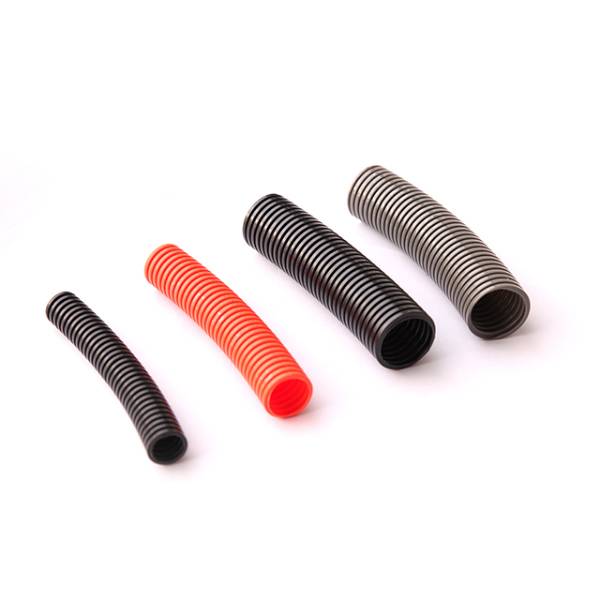

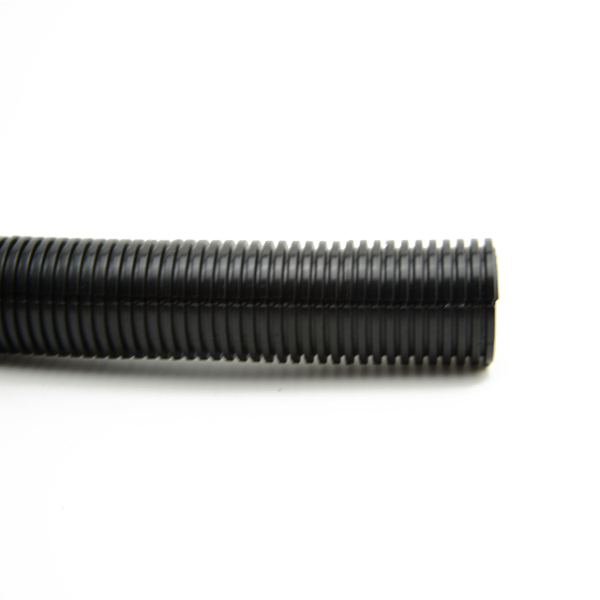

Nylon 12 is commonly known as Polylaurolactam, PA12. The properties of polyamide 12 tubing is Flexible and excellent tenacity, glossy surface, wind resistant, high mechanical strength, resistant to oil, acid and solvents. anti-friction, excellent UV-resistant self-extinguishing, external installation, medium wall thickness free of halogen, phosphor and cadmium, passed RoHS. We have got railway certificates of Japan, France and Germany.
| Material | Polyamide 12 |
| Color | Grey (RAL 7037), black (RAL 9005) |
| Temperature Range | Min-50℃,Max100℃,Short-term150℃ |
| Flame-retardant | V2 (UL94), according to FMVSS 302: self-extinguishing, Type B |
| Properties | Soft and tough, glossy surface, friction resistance, distortionresistance, high impact resistance, high mechanical strength, more uniform force than ordinary pitch hose, hose bending resistance is stronger. Oil resistance, softness and toughness, glossy surface, friction resistance, distortion resistance, high mechanical strength, oil resistance, phosphorus, cadmium resistance. Medium wall thickness, through RoHS test, through Japan, France, Germany railway certification |
| Applications | Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc. |
| Fit with | WQGD, WQGDM tubing connector |

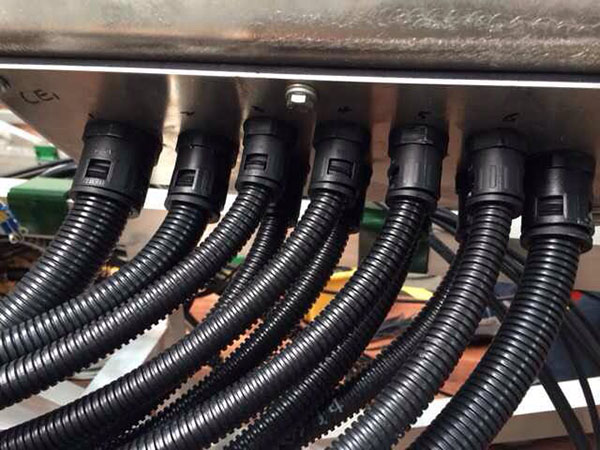

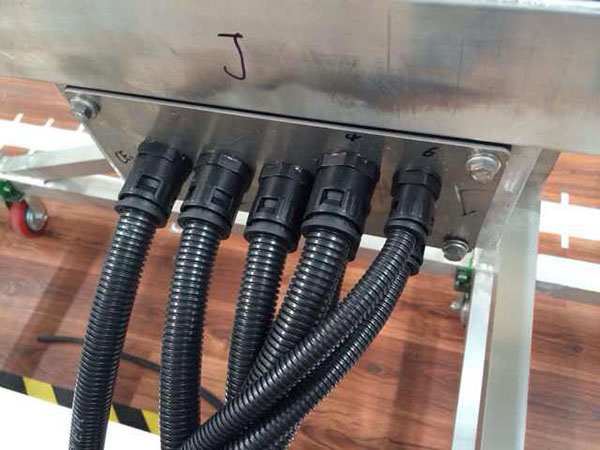

Pushing the tubing into the connector and its assembly is done. Push again until it can not complete its fixing so that it can reach some protection degree.
1. Light weight, can reduce the quality of the vehicle and reduce fuel consumption.
2. Good flexibility and easy layout, which can reduce joints.
3. Good toughness, not easily deformed by external impact.
4. Good resistance to vibration and corrosion.
5. The joint is well sealed and easy to install.
6. Easy extrusion and simple process.
