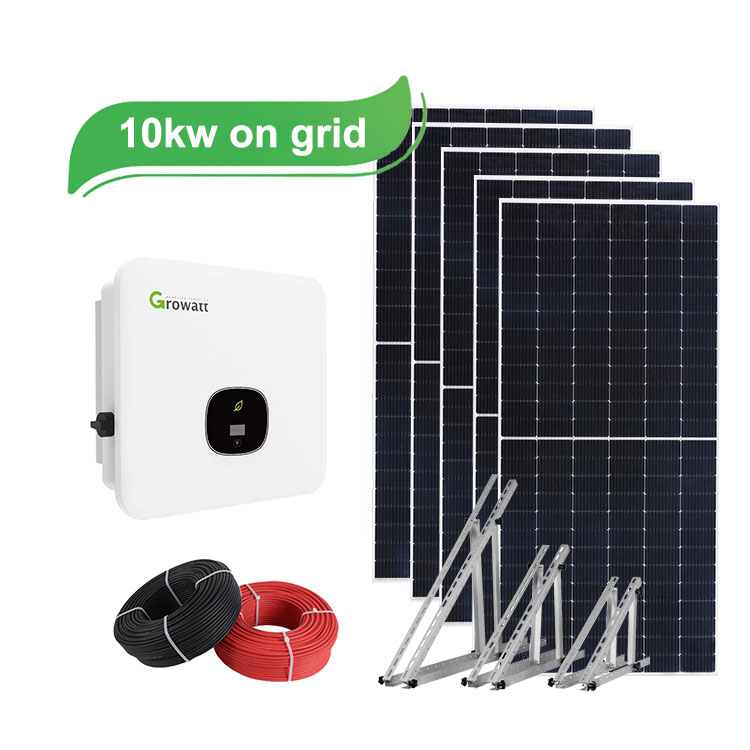

The 10kw on grid solar power system is composed of 10kw solar panels, 10kw grid tied solar inverter, and solar racking. It can generate 35kWh to 55kWh of electricity per day, which is sufficient for the daily consumption of a large family.
In addition, the system is equipped with a smart bi-directional meter, which records the amount of electricity consumed from the utility and the amount of electricity fed back to the utility. This reduces electricity bills.
The 10kw grid tied solar system also has an anti-islanding protection device, which stops the solar inverter immediately when there is a problem with the grid, preventing the current from feeding back into the grid and bringing danger to maintenance personnel. When the utility power returns to normal the inverter will automatically resume normal operation.
| Item | Model | Description | Quantity |
| 1 | 550Watt | Mono solar panel | 20pcs |
| 2 | On Grid Solar Inverter | Power: 10KW | 1set |
| single phase/three phase:230V/380V | |||
| 3 | PV Combiner Box | DC circuit breaker | 1 set |
| 4 | Mounting System | Whole set for roof and ground | 1 set |
| 5 | PV Cables | 4mm2 PV cables | 200m |
| 6 | PV connector | Rated Voltage:1000V | 10 pairs |
10kw on grid solar system price is around $2500. This quote includes the cost of the free plan design and product, but shipping, taxes and system installation are not included. Feel free to contact us for shipping and taxes.
Growatt 10kw Grid Tie Solar Inverter

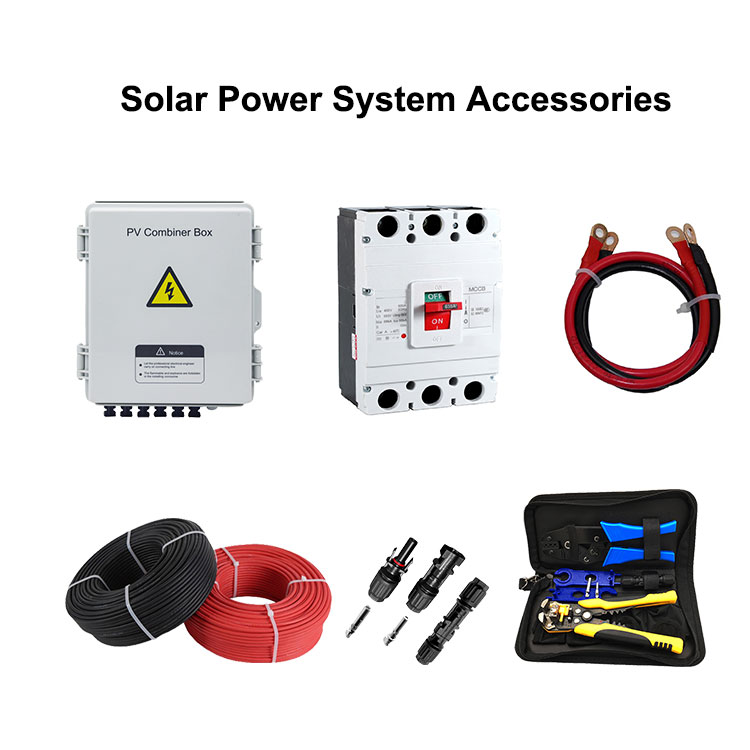

Accessories And Tools

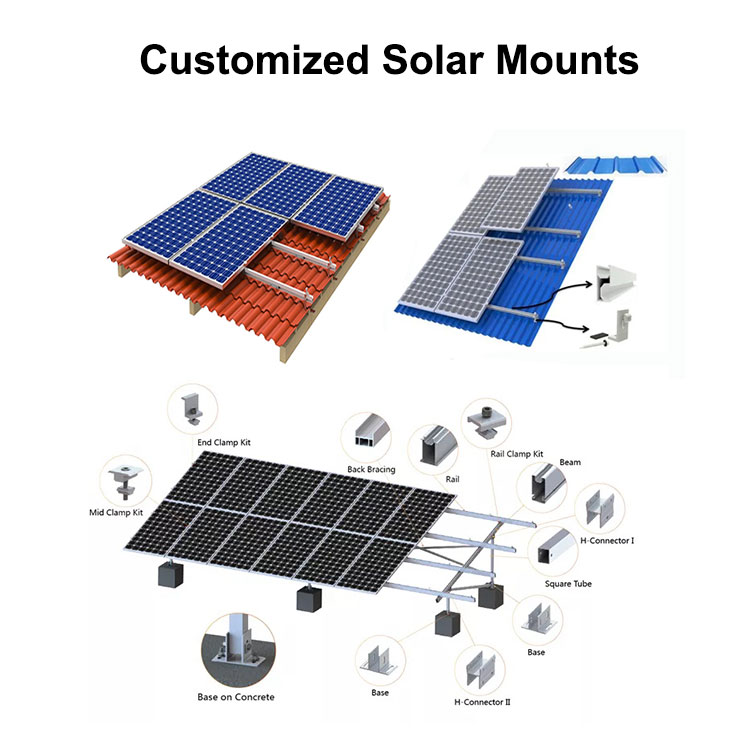

Customized Solar Mounts Design
