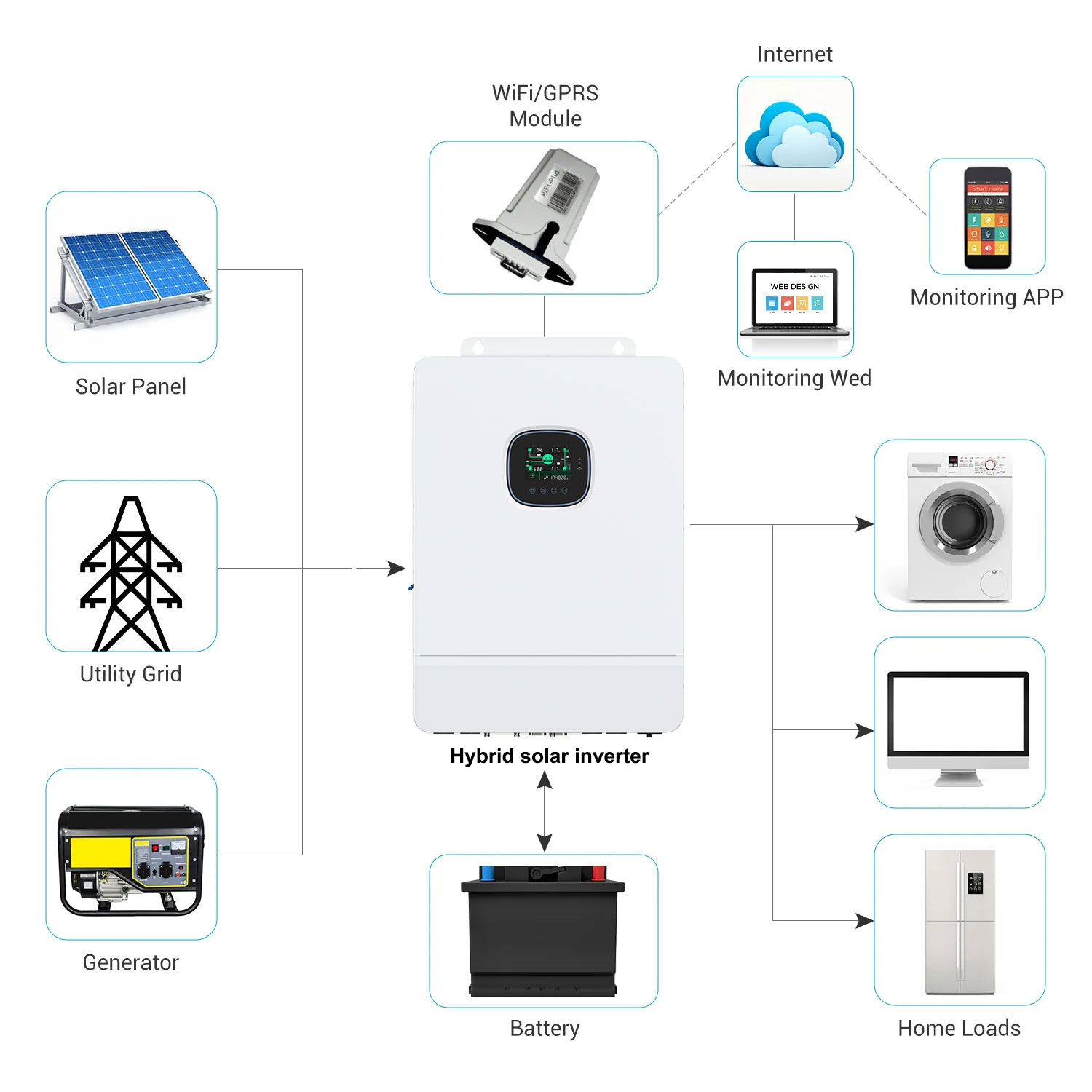

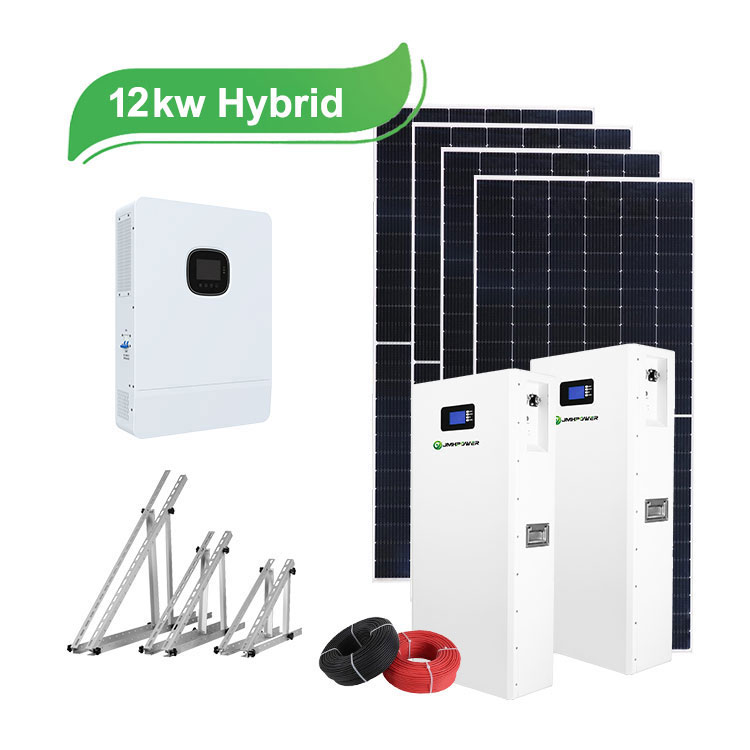

The 12kw hybrid solar power system is composed of 22 pieces 550watt solar panels, 1-piece 12kw 3-phase hybrid inverter, PV mounts and 2 or more 10kWh storage batteries. It can meet the needs of a large home, villa, small factory and other electricity scenarios.
The output of the system is three-phase 380V, which can be adapted to the needs of high-power loads and is in line with the mains.
It should be noted that the capacity of the battery should be calculated according to the power consumption of the place at night.
| Item | Model | Description | Quantity |
| 1 | 550Watt | Mono solar panel | 22pcs |

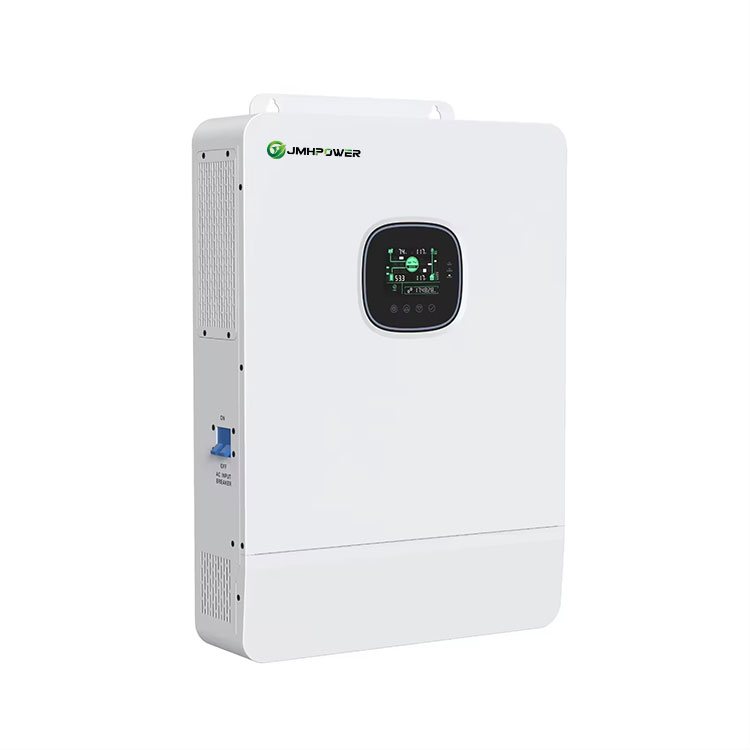

| 2 | Hybrid Solar Inverter | Power: 8KW | 1set |
| Three Phase: 380V/400V | |||
| 3 | Lithium Battery | 48V 184Ah/200Ah | 2pcs or more |
| 4 | Mounting System | Whole set for roof and ground | 1 set |
| 5 | PV Cables | 6mm2 PV cables | 200m |
| 6 | PV connector | Rated Voltage:1000V | 10 pairs |
The price of a 12kw hybrid solar system is around $6000. There are two main factors that determine the price. The first is the size of thesolar batteryyou need, and the second is the type of output, single phase, three phase and split phase output inverters have different prices and lithium battery standards. Welcome to contact us for customized design of PV solutions based on your actual power needs.

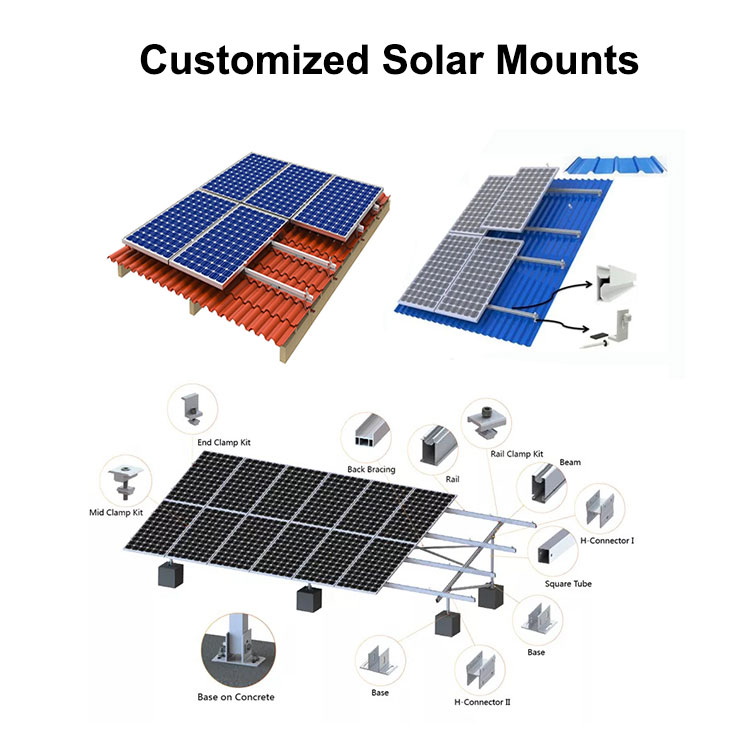

Customized Solar Mounts Design

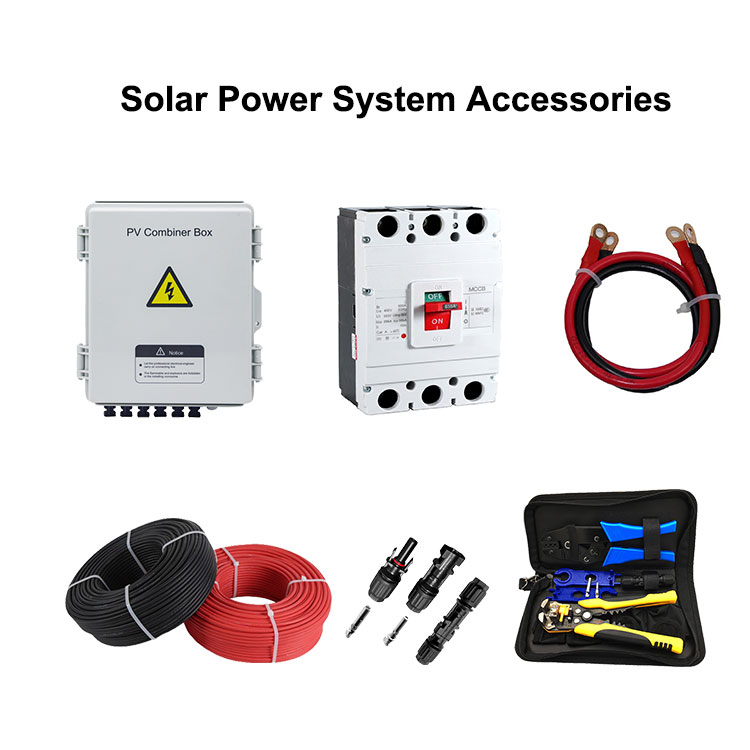

Solar Power System Accessories
