Product Overview

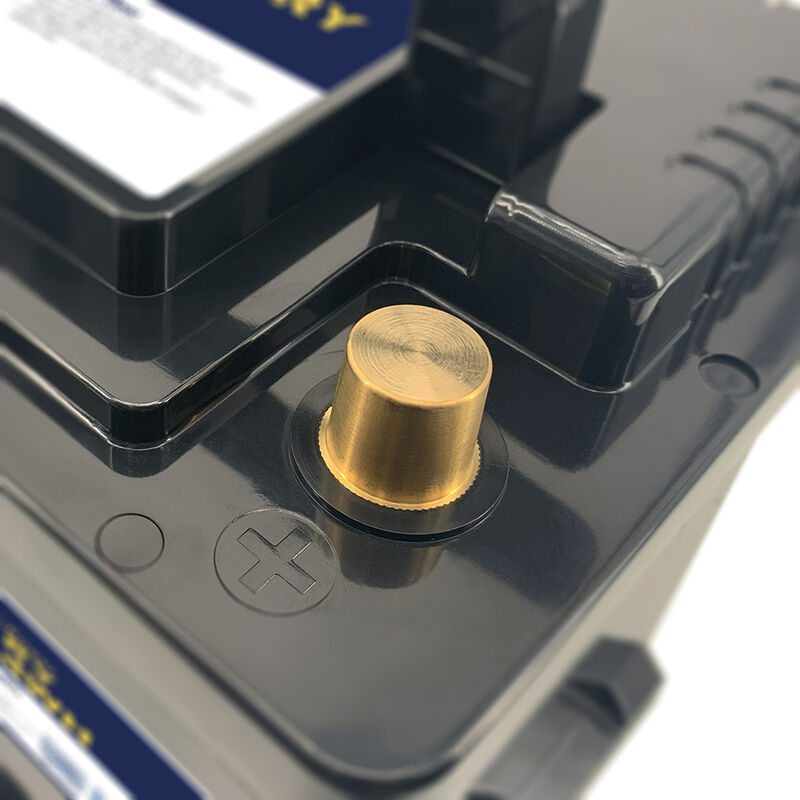

12V 150AH LiFePO4 Lithium Battery with H8 DIN case and smart BMS
- New Grade A prismatic cells to ensure long cycle life and good performance
- Perfect dimension for underseat installation with H8 DIN case size: 353mm x 175mm x 190mm
- Passive & active balancer integrated
- Communication with Victron devices and among batteries in parallel communication is optional
- Maximum discharging current: 200A
- Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS
- Series & Parallel connections are available
- OEM & ODM service are available
- Bluetooth monitoring and self-heating integrated for charging under low temperature is optional
Battery Management System (BMS)
The battery management system (BMS) built into each battery ensures that the battery switches off in the event of under voltage or overload and automatically turns on again when the problem is resolved.
- Protection against under voltage by switching off the load
- Protection against over voltage by reducing charging current or switching off charging
- System shutdown in event of excess temperature
- Charging stopped in case of under temperature
- Passive and active balancer integrated in BMS
- Optional communication with Victron devices and among batteries
- Bluetooth app to monitor battery status and history
- Self-heating function for charging under low temperature
Key Benefits
- High performance traction/storage battery
- Integrated (BMS) battery management system
- Safe lithium technology (LiFePO4)
- High cycle life - more than 3000 times @ 100% DOD
- High max continuous discharging current
- Much lighter weight compared to lead acid battery
- One-to-one replaceable with lead acid battery
- Low self-discharge
Applications
- Motorhomes, caravans and RV
- Photovoltaics, solar systems and renewable energies
- High performance traction/storage battery
- Fishing, electric boat motors and sonar
- Mobile power supply, camping and leisure
- Emergency power supply/UPS
Storage and Transportation
- Must be packed and protected well during transport (UN3480/UN38.3)
- Never lift by terminals - only by handles
- Store in temperatures from -10℃ to +30℃
- Transport at 50-60% charge
- Charge every three months during storage
Important Instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening voids warranty.
- Use only for intended applications
- Do not short-circuit - use protected cable connections
- Installation and maintenance by qualified specialists only
- Protect from direct sunlight and temperatures above +60°C
- Use only compatible chargers
- Ensure proper assembly and correct polarity
- Keep battery dry and clean
- Capacity may vary with temperature and charge/discharge rate
- Maximum four batteries in parallel (series connection requires customized BMS)
Installation Guidelines
- Ensure adequate and safe attachment - batteries are heavy
- Use appropriate transport equipment
- Never connect with reversed polarity - will damage BMS irreparably
- Incorrect connection voids warranty
