Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to [email protected] - Our Facebook is：Shenpeng Pump
Obtain samples / Obtain parameters |
■ Product application
Cooling cycle of new energy vehicle controller
■ Product information
Ambient temperature:-40 to +125℃
Medium temperature:-40 to +85℃
Medium:Clear water，antifreeze
Weight:0.83Kg
Protection level:IP68
Insulation level:H
Service life:20000 hours
Inlet and outlet:20mm

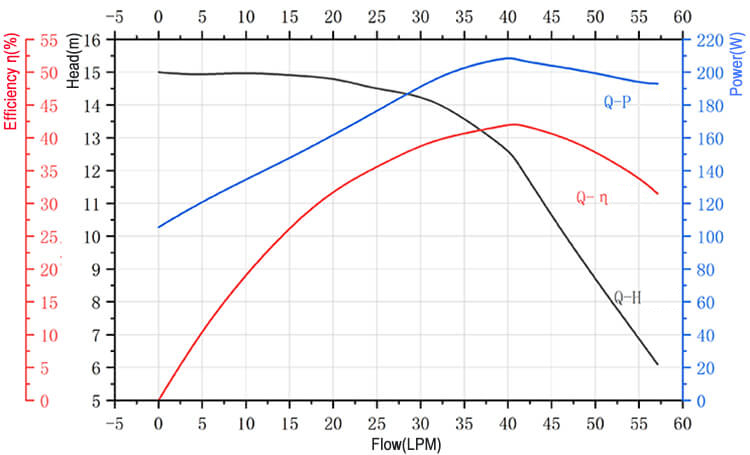

■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Power | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-18 | 19 | 15 | 58 | 230 | ≤45 |
