Product Details:
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to [email protected] - Our Facebook is：Shenpeng Pump |
■ Product application
Heating vertilation air conditioning
New energy automotive cooling circuit
■ Product information
Ambient temperature:-40 to +125℃
Medium temperature:-40 to +120℃
Medium: Clear water, antifreeze
Weight:0.68Kg
Protection level:IP67
Insulation level:H
Service life:20000 hours
Inlet and outlet:20mm

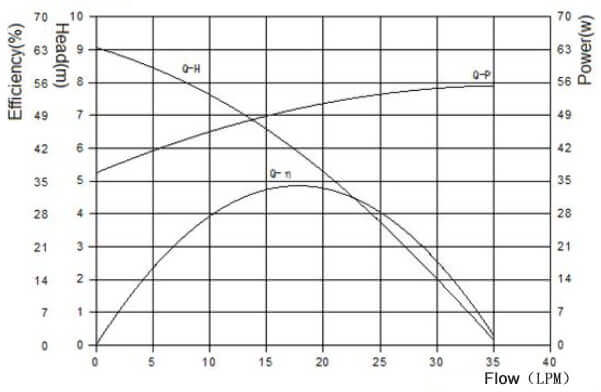

■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Power | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-20 | 4.6 | 7 | 35 | 55 | ≤40 |
24 | 12-30 | 2.4 | 9 | 35 | 55 | ≤40 |
