Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to [email protected] - Our Facebook is：Shenpeng Pump
Obtain samples / Obtain parameters |
■ Product application
- Heating vertilation air conditioning
- New energy automotive cooling circuit
■ Product information- Ambient temperature:-40 to +125℃
- Medium temperature:-40 to +120℃
- Medium: Clear water, antifreeze
- Weight:0.65Kg
- Protection level:IP67
- Insulation level:H
- Service life:20000 hours
- Inlet and outlet:22mm

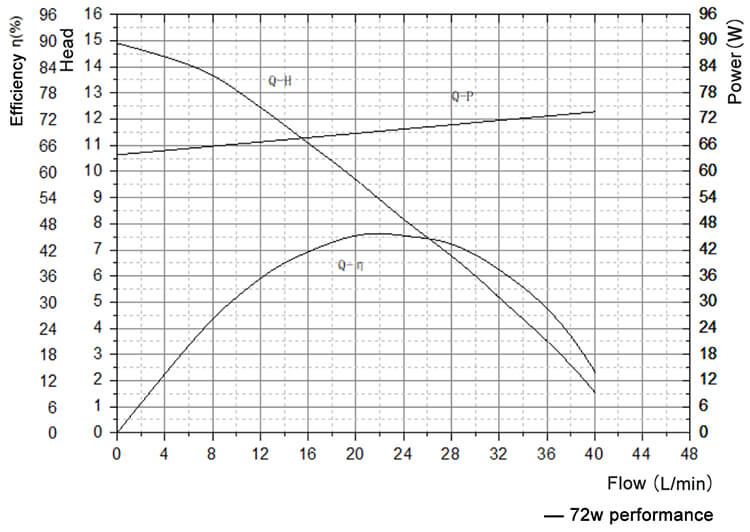

■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Power | Max Noise |
V | V | A | m | L/min | W | dB（A） |
| 12 | 8-20 | 6 | 15 | 43 | 72 | ≤45 |
