• All in One+modular design, flexible expansion, easy operation and maintenance.
• Supports 100% unbalanced load and 110% long-term overload.
• Ultra high energy density, small size, easy installation and transportation.
• Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.
• Only 1.47m ², with an energy density of 177.72kWh/m ² per unit area, resulting in a reduction of over 26% in system footprint.
• Top mounted liquid cooling unit, front maintenance, supports wall mounted installation, flexible deployment.
More

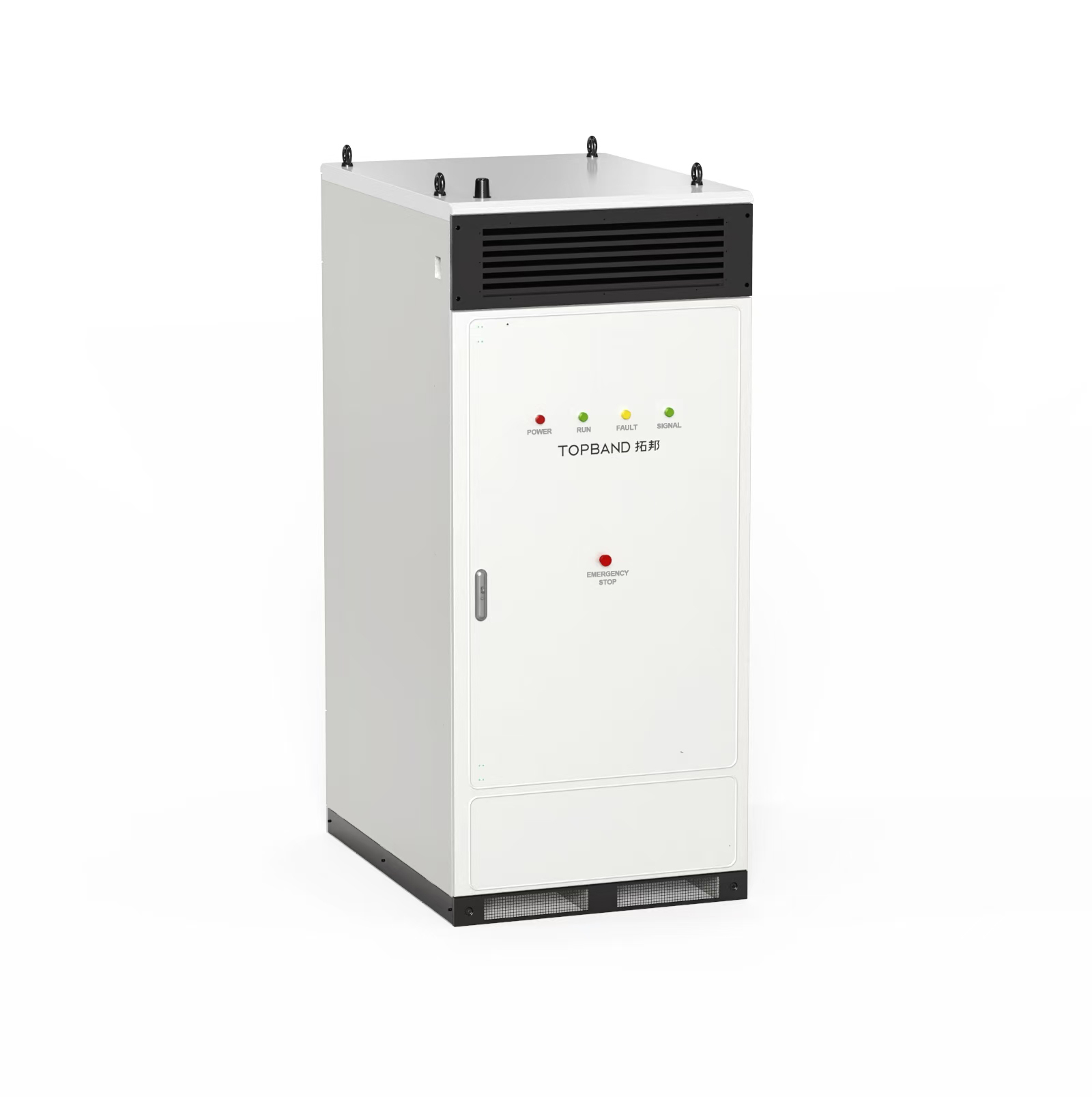

261 degree electric energy storage outdoor cabinet is a highly integrated liquid cooled energy storage system widely used in industrial and commercial energy storage, microgrids, distributed energy and other scenarios.
Support peak shaving and valley filling, power grid voltage regulation, three-phase imbalance control, harmonic control and other functions.
Provide multiple operating modes, including planned charging and discharging, spontaneous self use, backup mode, and AI intelligent mode.

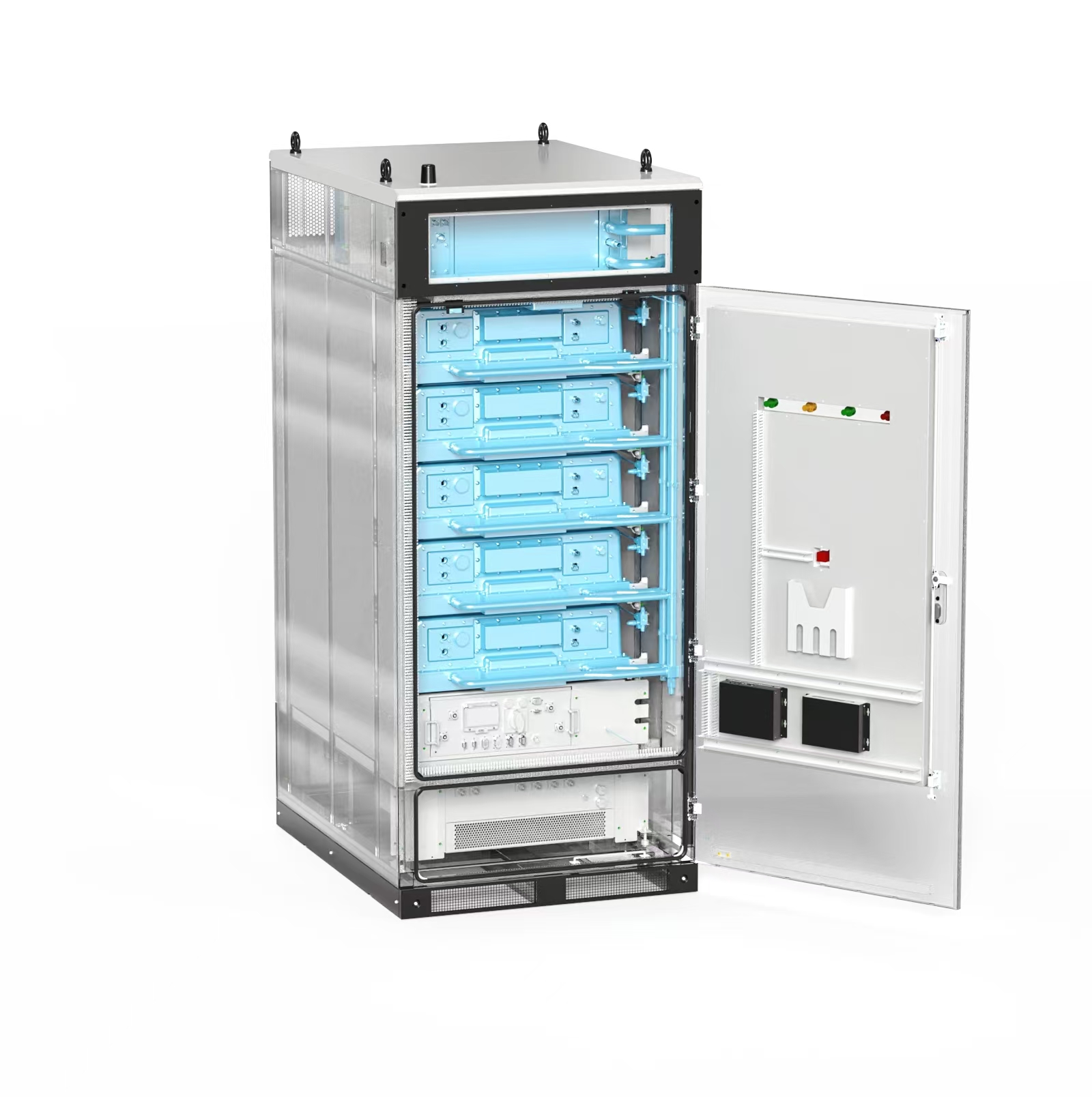

Integrated and modular design
Highly integrated, integrating the battery system BMS、EMS、PCS、 The fire protection system is integrated into an outdoor cabinet, reducing the footprint and improving space utilization. Modular design, supports parallel expansion of multiple devices, up to 32 devices in parallel, and flexibly adapts to different application scenarios.
High performance and high security
Adopting 314Ah lithium iron phosphate battery, the system capacity reaches 261kWh and the cycle life can reach 6000 times. Equipped with three-level fire protection design (battery level, pack level, system level), supporting multiple detectors such as smoke detectors, temperature detectors, and water immersion detectors to ensure safe system operation.
Flexible deployment and environmental adaptability
The single cabinet covers an area of only 1.35-1.47 square meters and supports wall mounted installation, making it suitable for scenarios such as factories, parks, and commercial buildings. The protection level reaches IP54 or IP55, suitable for a wide temperature range of -30 ℃~50 ℃.
Efficient Energy Management
