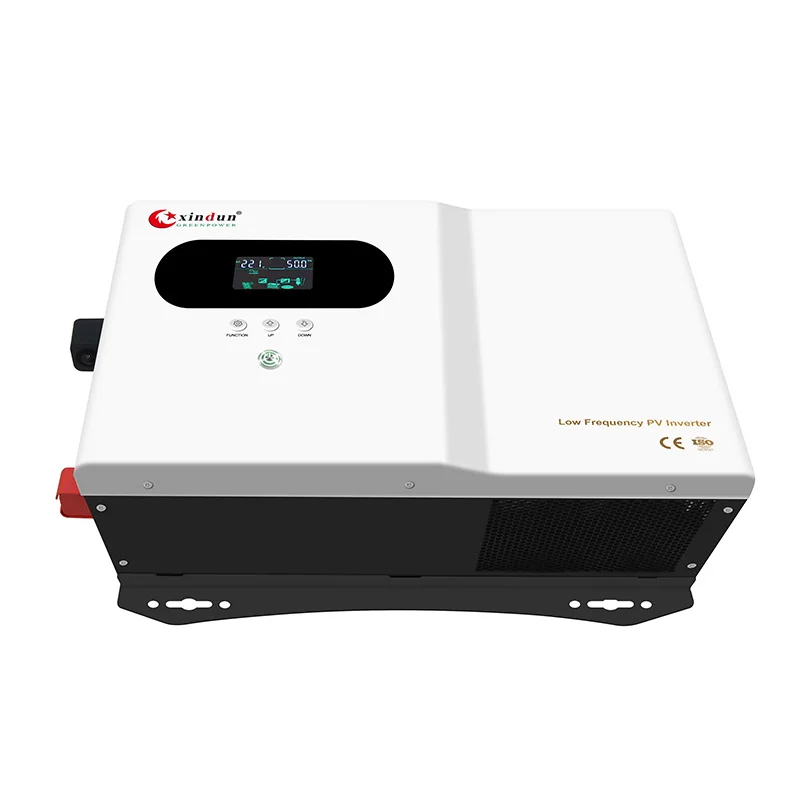

Model: DF
|
10212/24/48
|
15212/24/48
|
20212/24/48
|
30224/48
|
40224/48
|
50248
|
60248
|
70248
|
||||||||
|
Power
|
||||||||||||||||
|
Rated Power
|
1000W
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
7000W
|
||||||||
|
Phase Type
|
Single- Phase
|
|||||||||||||||
|
sINGLE phase
|
||||||||||||||||
|
Standard Battery Voltage
|
12/24/48VDC
|
24/48VDC
|
24/48VDC
|
48VDC
|
||||||||||||
|
Battery Type
|

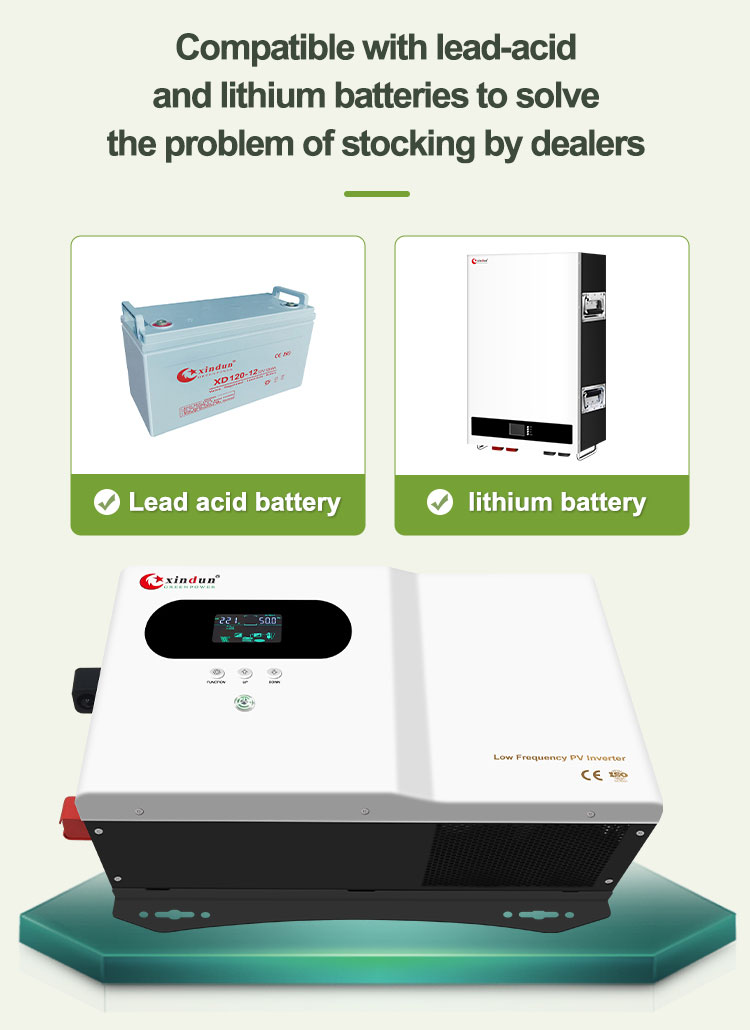

Lead-acid / Gel / Lithium Batteries//Custom battery
|
|||||||||||||||
|
AC Input
|
||||||||||||||||
|
Rated Input Voltage
|
110VAC/120VAC/220VAC /230VAC/ 240VAC
|
|||||||||||||||
|
AC Input Voltage Range
|
85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC）/ 170VAC~275VAC（220VAC）/
180VAC~285VAC（230VAC）/ 190VAC~295VAC（240VAC） |
|||||||||||||||
|
AC Input Frequency
|
45Hz~55Hz（50Hz），55Hz~65Hz（60Hz）
|
|||||||||||||||
|
AC Output
|
||||||||||||||||
|
Output Wave
|
Pure Sine Wave
|
|||||||||||||||
|
Conversion efficiency(INV mode)
|
>85%
|
|||||||||||||||
|
Output Voltage/Frequency (INV mode)
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1%
|
|||||||||||||||
|

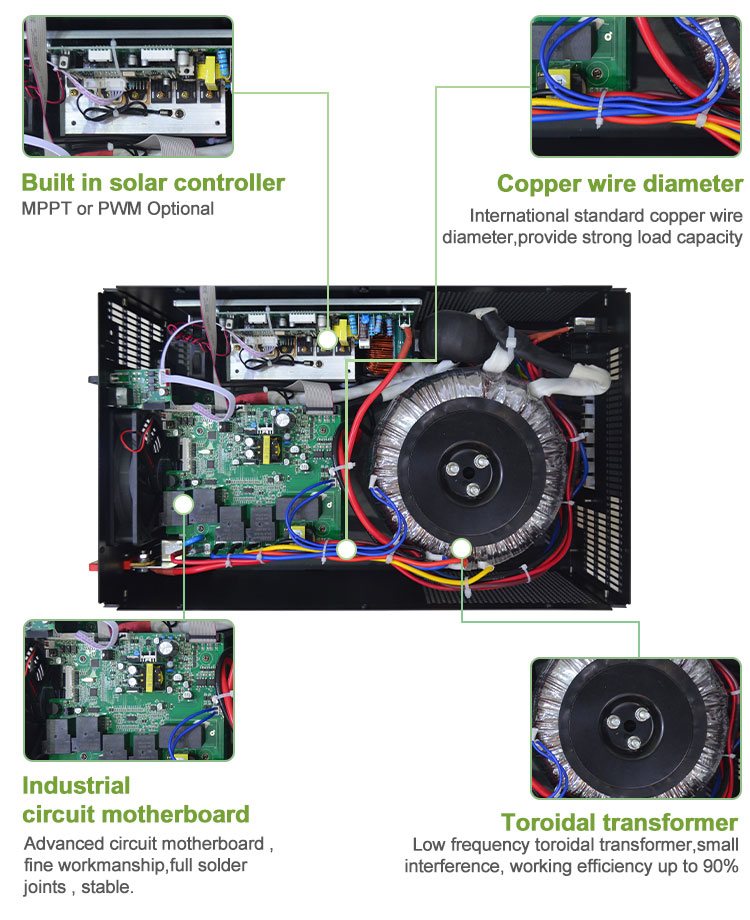

Built-in Controller MPPT(optional)
|
||||||||||||||||
|
Rated Current
|
30A
|
60A
|
100A
|
|||||||||||||
|
PV Array Max Power
|
12V（420W）/24V（840W）/48V（1680W）
|
12V（840W）/24V（1680W）/48V（3360W）
|
5600W
|
|||||||||||||
|
Max PV Input Voltage（Voc）
(At The Lowest Temperature) |
12V/24V system：120VDC；48V system：180VDC
|
|||||||||||||||
|
MPPT Tracking Voltage Range
|
12V System（15V-80V）/24V System（30V-100V）/48V System（60V-140V）
|
|||||||||||||||
|
Other
|
||||||||||||||||
|
Protection Devices
|
Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit
protection/Temperature protection |
|||||||||||||||
|
Protection Degree
|
IP20
|
|||||||||||||||
|

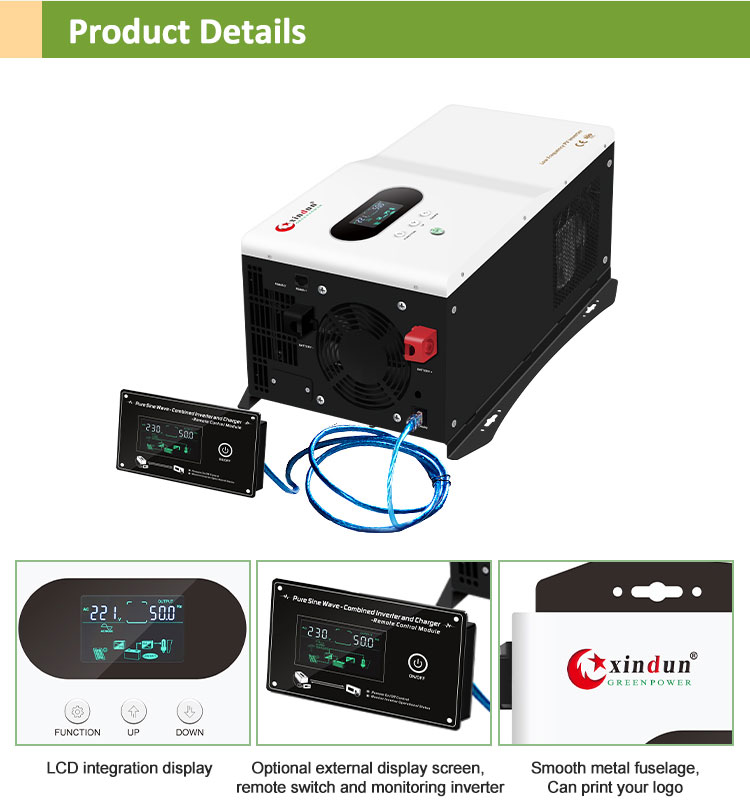

Display
|
LCD
|
|||||||||||||||
|
Cooling Method
|
Cooling fan in intelligent control
|
|||||||||||||||
|

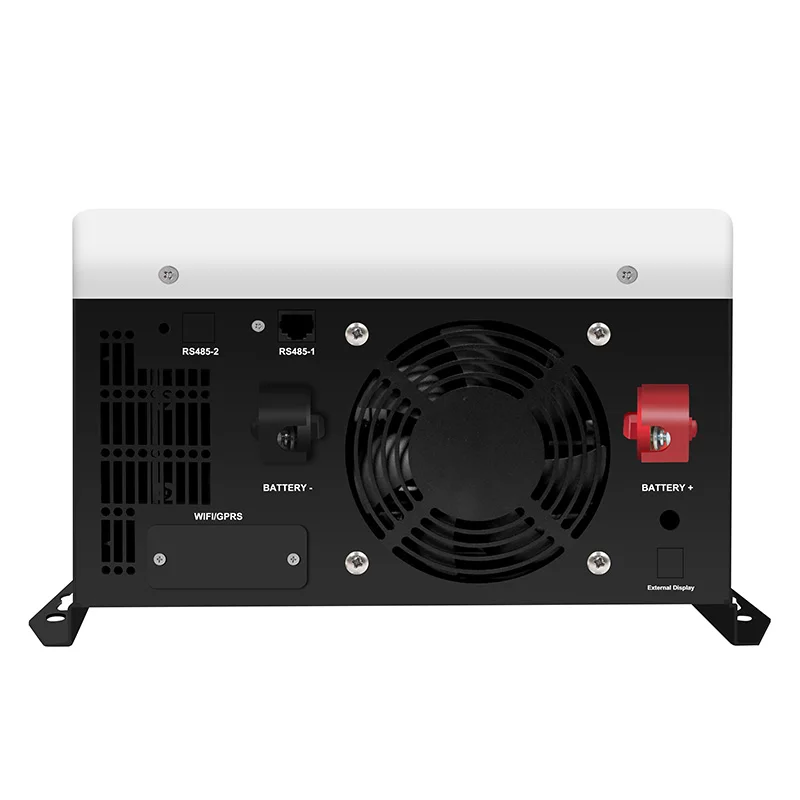

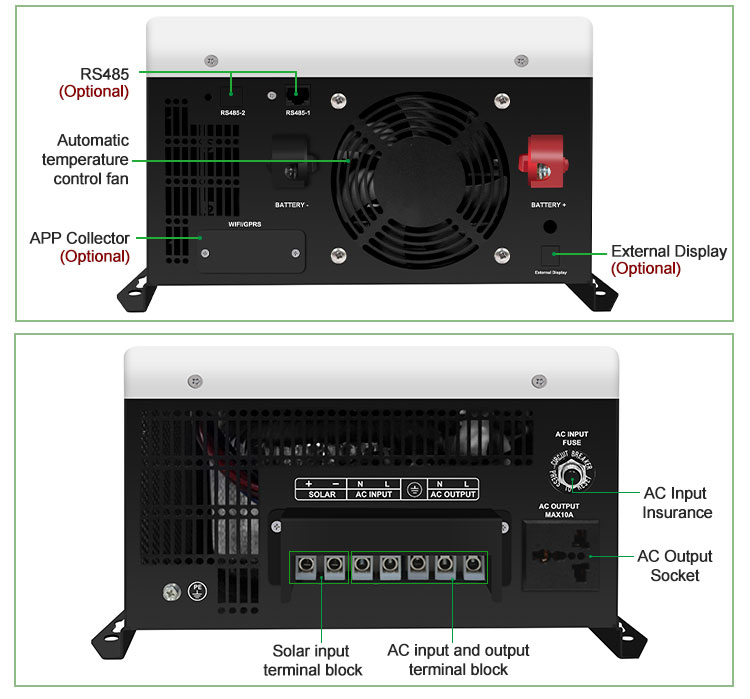

Communication
|
RS485/RS232,APP（WIFI monitoring or GPRS monitoring）Optional
|
|||||||||||||||
|
Working Mode（settable）
|
Battery priority/Mains priority
|
|||||||||||||||
|
Operating Temperature
|
-15℃~40℃
|
|||||||||||||||
|
Relative Humidity
|
0%~95% ,No condensation
|
|||||||||||||||
|
Dimensions and Weight
|
||||||||||||||||
|
Product Size(L*W*Hmm)
|
482*328*191
|
615*315*209
|
||||||||||||||
|
Packing Size(L*W*Hmm)
|
555*366*249
|
675*391*249
|
||||||||||||||
|
N.W.(kg)
|
12
|
13
|
15.5
|
18
|
23
|
24.5
|
26
|
27.5
|
||||||||
|
G.W.(kg)
|
14
|
15
|
17.5
|
20
|
25.5
|
27
|
28.5
|
30
|
||||||||
|

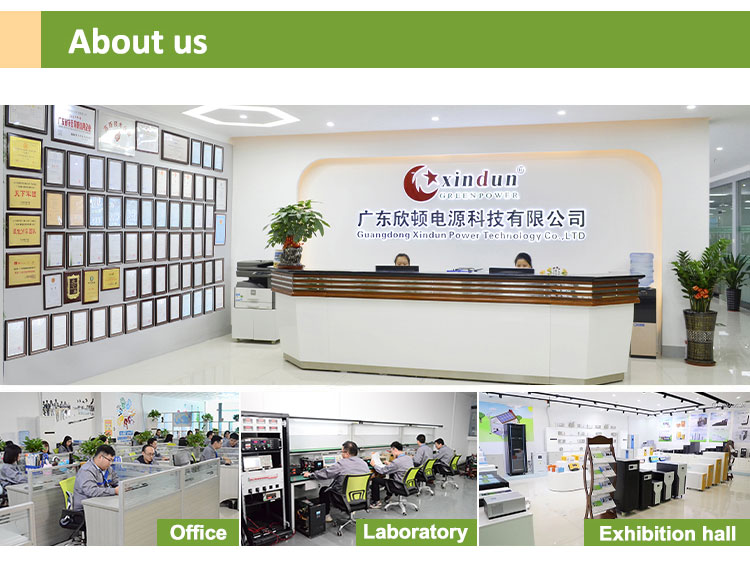

Guangdong Xindun Power Technology Co.,Ltd
|
||
|
Factory Location
|
Foshan,Guangdong,China
|
|
|
Product Range
|
solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system
|
|
|
Main Market
|
Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand,
Philippines, etc.) |
|
|

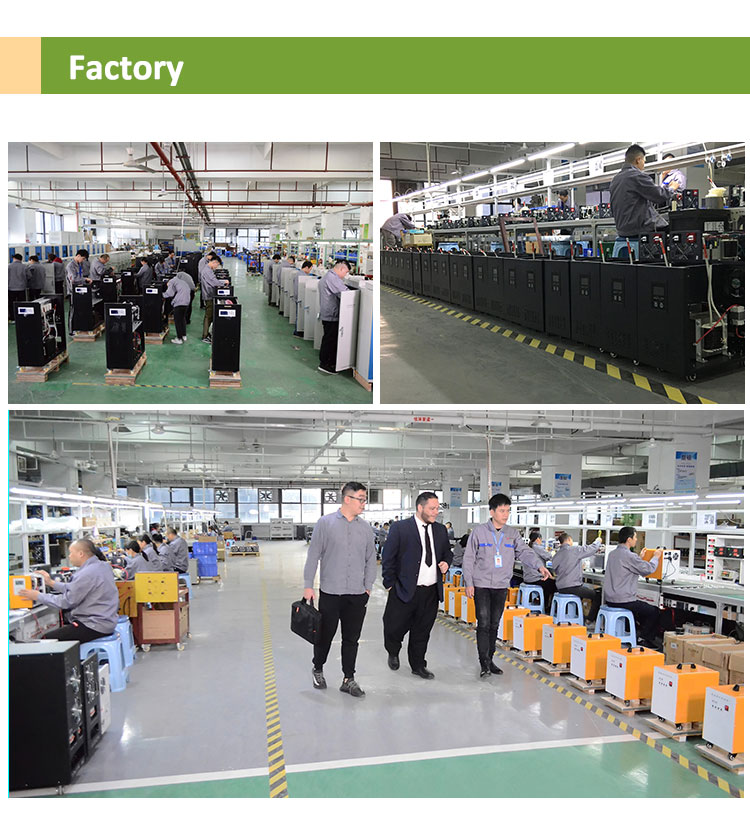

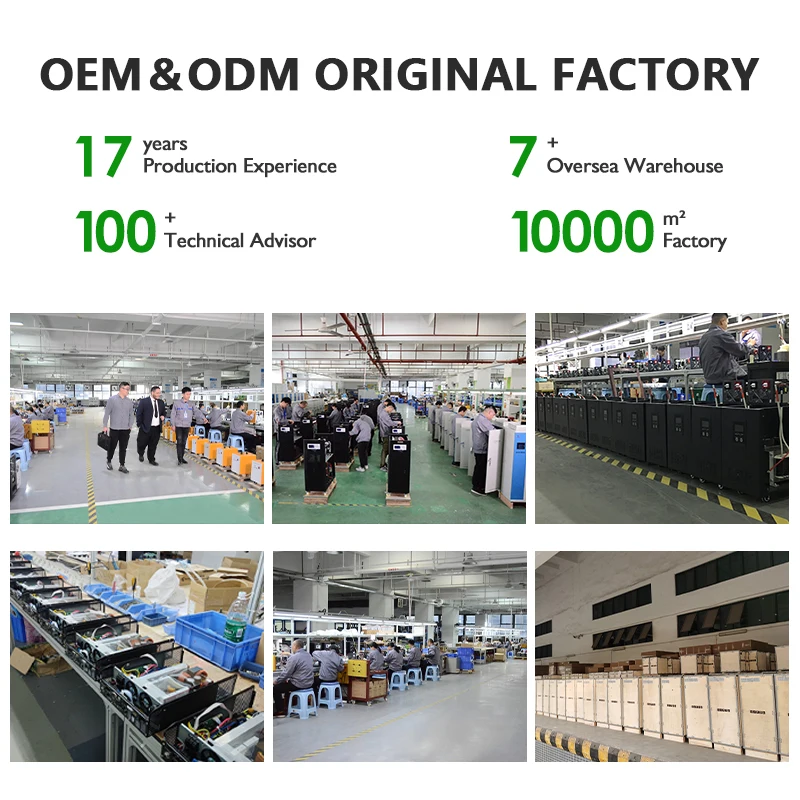

Factory
|
7000 Square Meters, 100+ workers
|
|
|
Department
|
R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department
|
|
|
Certificate
|
ISO 14001:2015, CE, IEC, TUV etc.
|
|
|
Patent
|
Software Paten, Design Patent, Project Pantent
|
|
