Why Choose Tanfon Solar Air Conditioner/solar AC?
To save electricity consumption, save bill cost, what's more, to make a more clean environment.
Air Conditioners Consumption Comparison Testing

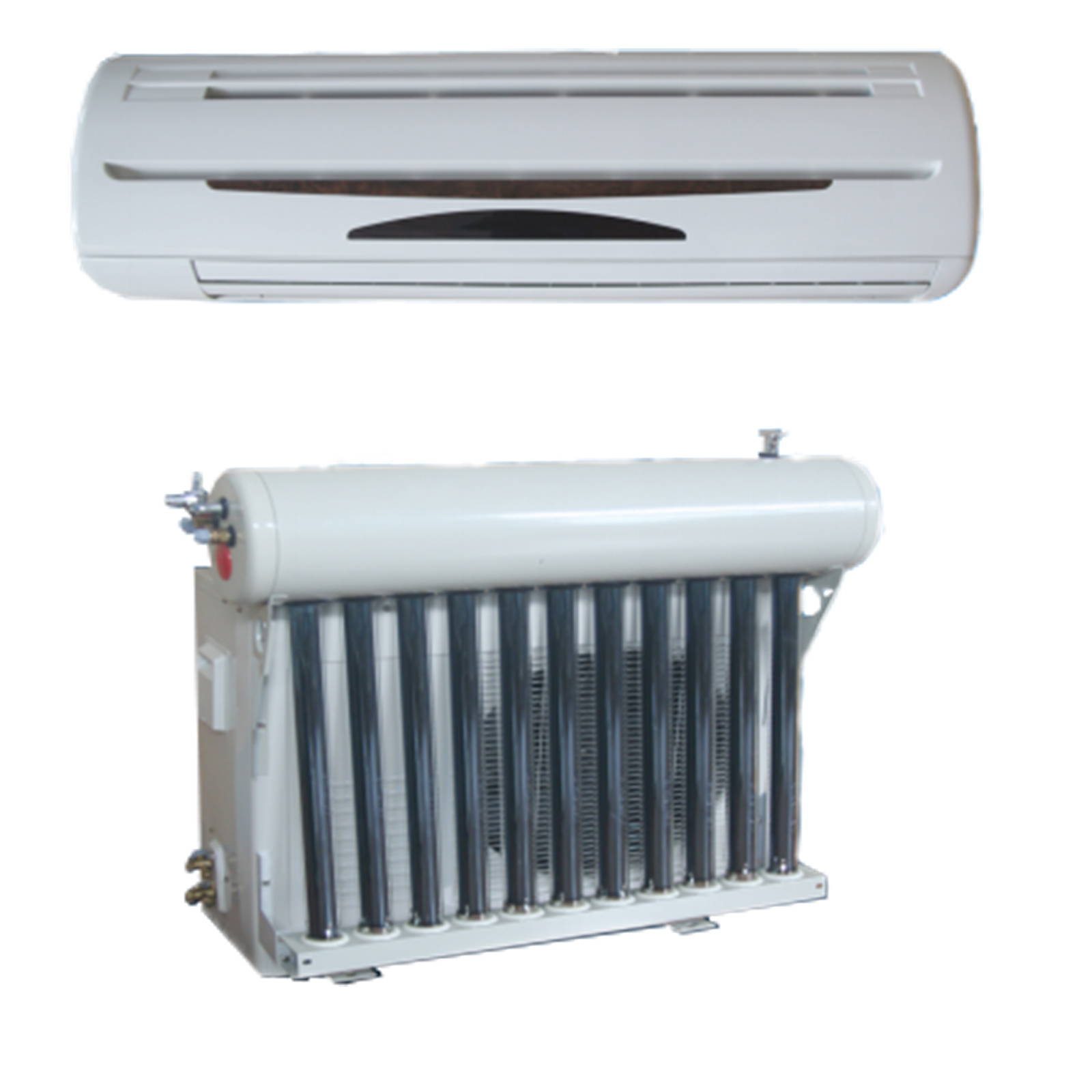

Tanfon Hybrid vacuum tube solar air conditioner?9000BTU-36000BTU
Most?affordable
Which?can?not?work?off?grid
No?need?solar?panels,?battery
Energy saving up?to 50%
Bule Coating Heat Exchanger
100% Copper Connection Pipes With Insulation
Enviornmently Friendly Gas R410A
Use in tropical areas
Product Description

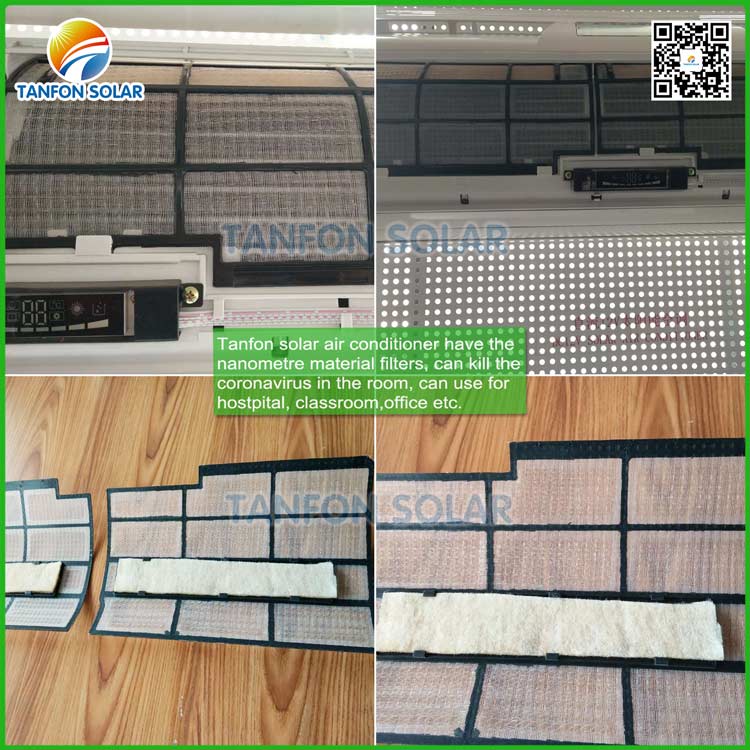

Our solar air conditioner have the nanometre material filters, can kill the coronavirus in the room, can use for hostpital, classroom,office etc.
| Capacity | Cooling | Btu/h | 36000 | |
| W | 10000 | |||
| Heating | Btu/h | 40000 | ||
| W | 11000 | |||
| Noise | indoor | dB(A) | ≤52 | |
| outdoor | dB(A) | ≤60 | ||
| Air Circulation | m3/h | 1350 | ||
| Suitable Area | m2 | 40~60 | ||
| EER | W/W | 3.82 | ||
| Btu/h/w | 13.03 | |||
| Power Consumption | ||||
| Power Input | Cooling | W | 2400~2640 | |
| Heating | W | 2470~2650 | ||
| Rated Current | Cooling | A | 10.91~11.95 | |
| Heating | A | 11.23~12.05 | ||
| Vacuum Tube | Diameter*Length*Pcs | 47mm*620mm*11 | ||
| Dimensions | ||||
| Indoor Unit | Net | mm | 1080*320*240 | |
| Shipping | mm | 1150*420*320 | ||
| Outdoor Unit | Net | mm | 865*310*710 | |
| Shipping | mm | 1025*395*790 | ||
| Vacuum Tube | Shipping | mm | 980*400*370 | |
| Weight | ||||
| Indoor Unit | Net/Gross | kg | 23/25 | |
| Outdoor Unit | Net/Gross | kg | 65/70 | |
| Solar Collector | Net/Gross | kg | 16/17 | |
| Loading Qty | in 20feet | sets | 50 | |
| in 40HQ | sets | 115 | ||

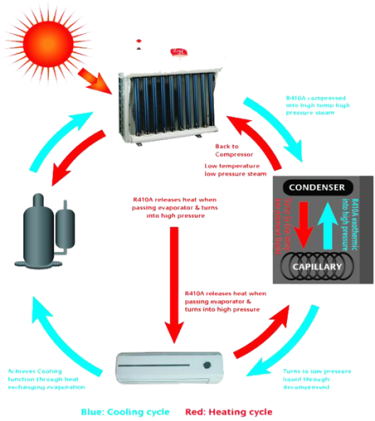

Working principle
| Hybrid solar air conditioner * When the power on, the compressor start working, it compress the refrigerant from low pressure to high pressure, low temperature to high temperature, then discharge to heat exchanger of the solar collector
so it just need use the small compressor driver the system running, just use the less power to cool or heat the room,to save more energy. |

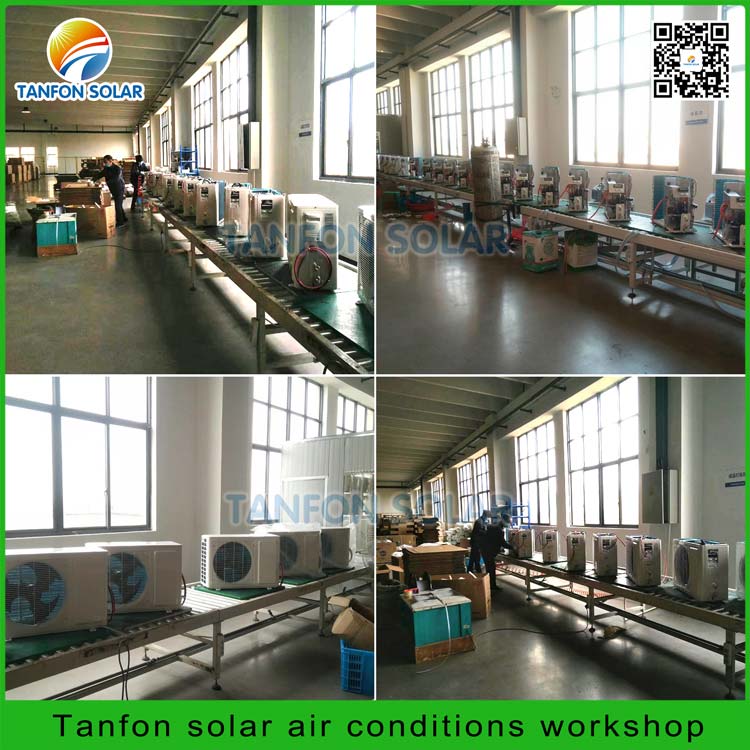

Workshop

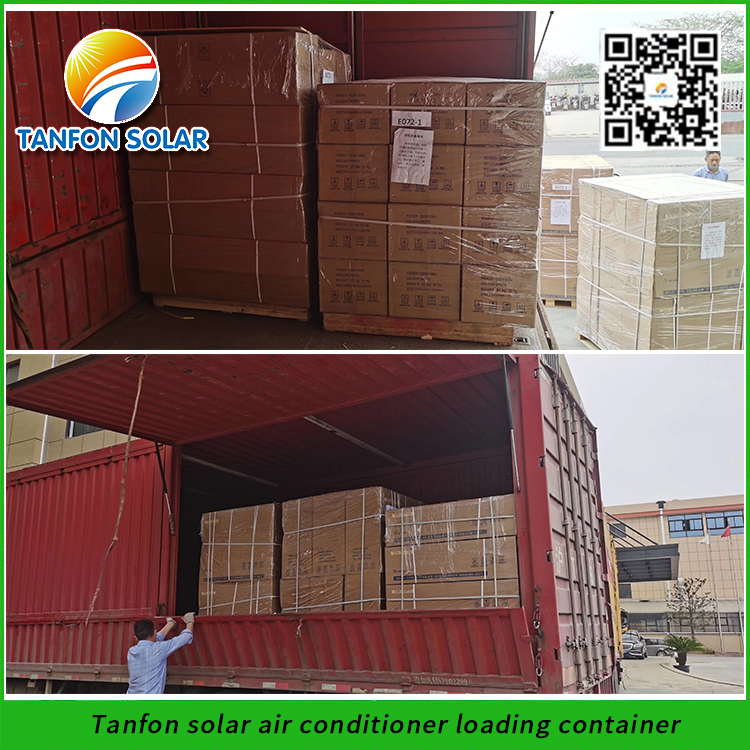

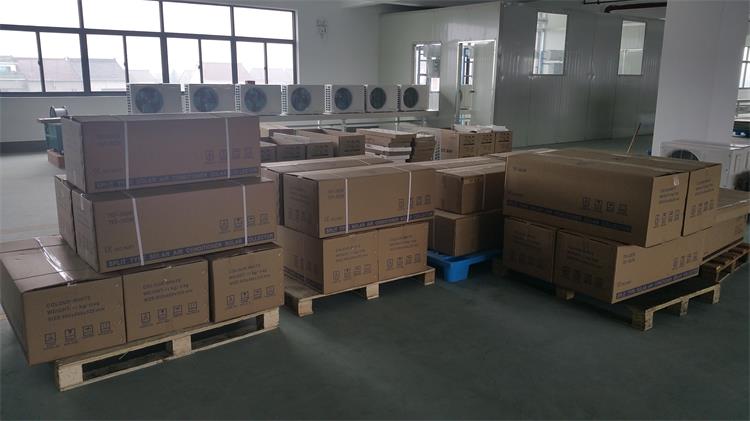

Shipment
Global Solar Exhibition
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
For more information, please send an inquiry or contact us directly.

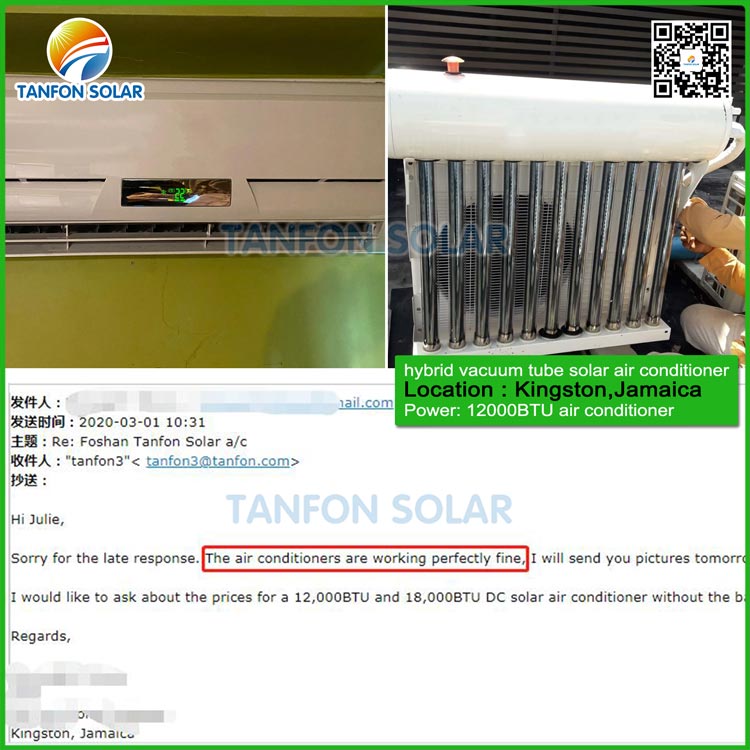

How do customers evaluate Tanfon products&service
