Excellent industrial-level - anti-thunder,anti-static which always ensure sable transmission.
Terminal power supply at DC 10-58V. Two independent power supply circuits.
It adopts fanless which does not need additional cooling equipment.
It can meet the requirements of different application scenes

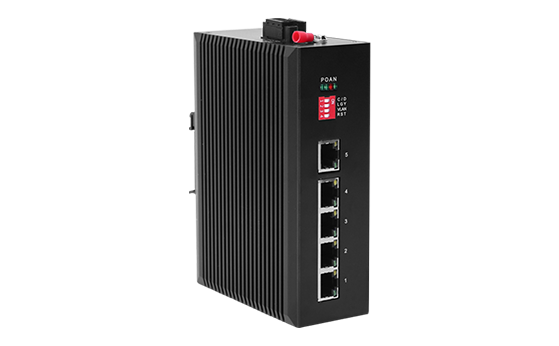

In the case of intelligent traffic scene, high-definition camera increases the data volume and increases the pressure of network bandwidth. 5-port switch industrial USR-SDR050 supports 100-megabyte rate to handle heavy traffic through smoothing.It reduce the construction cost.
Parameters | USR-SDR050-L | USR-SDR050 |
Power interface | Terminal format,double power redundancy | |
Net interface | 10/100Base-T | |
| MTBF | 100000 hours | |
NO. Of the net port | 10/100M Ethernet port *5 | |
Indicator light | PWR，Link/ACT | |
Twisted-pair | 100m（CAT5E，CAT6） | |
Input Voltage | DC 9-36V | DC 10-58V |
Overall power Consumption | <3W | Normal <5W，POE<95W |
Star topology | Support | |
Bus topology | Support | |
Tree topology | Support | |
MAC address list | 1K | |
Package buffer size | 448K | 512K |
Forwarding delay | <3us | |
Jumbo frame | Support 1536 | Support 2048bytes |
Switching capacity | 1G | |
Package forwarding rate | 0.744Mbps | |
Shell | IP40 | |
Power surge protection | IEC61000-4-5 Level 4（4KV/2KV）（8/20us） | IEC61000-4-5 Level 3（4KV/2KV）（8/20us） |
Ethernet port surge protection | IEC61000-4-5 Level 3（4KV/2KV）（10/700us） | |
EMI | CLASS A | |
Anti- static | IEC61000-4-2 Level 4（8K/15K） | |
Free-drop | 0.5m | |
Work Temp | -40℃~+85℃ | |
Storage Temp | -40℃~+85℃ | |
Humidity | 5%~95% | |
Heat dispatch | Fanless ,natural heat dissipation | |
Size | 120*90*35.5 mm（L*W*H） | 143*104*48 mm（L*W*H） |
Installation | DIN-Rail Mounting | |
Shell material | Aluminum alloy+ sheet metal | Aluminum alloy |
weight | 0.30 kg | 0.52 kg |
Accessories | Device , terminal | Device, terminal, power supply |
