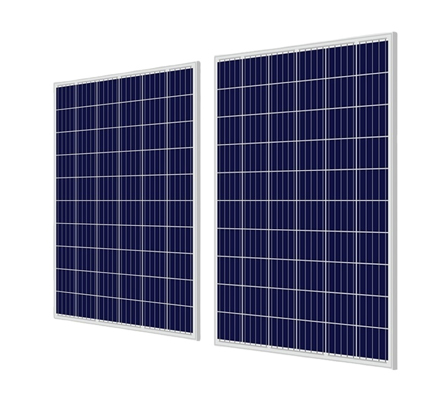

Mono/Poly/felxible/black etc all types Panels ,
High efficiency power up to 450/500/550W Half Cell/BifacialSolar PV Modules;All certificates listed with more than 30years life and warranty:PID Resistant,High salt and ammonia resistance.
Jiangsu China
|

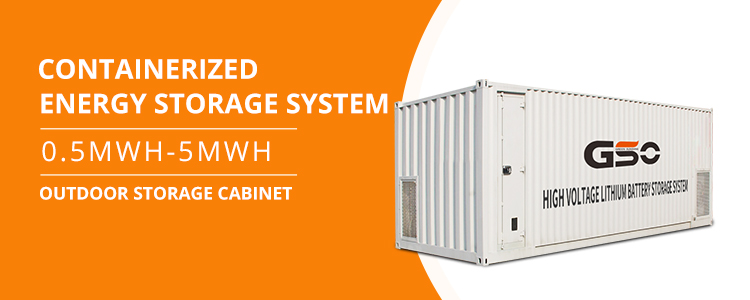

Model
|
20ft
|
40ft
|
|||||
|
Output volt
|
400V/480V
|
||||||
|
Grid frequency
|
50/60Hz(±2.5Hz)
|
||||||
|
Output power
|
50-300kW
|
250-630kW
|
|||||
|
Bat capacity
|
200-600kWh
|
600-5MWh
|
|||||
|

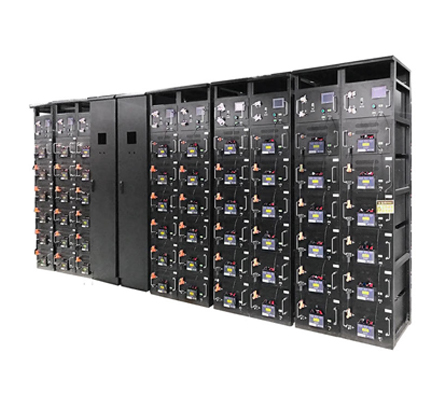

Bat type
|
LiFePO4
|
||||||
|

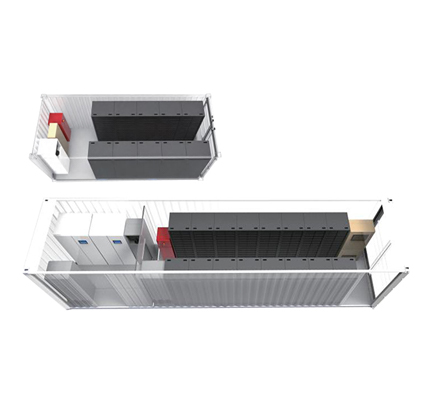

Size
|
Inside size（L*W*H):5.898*2.352*2.385
|
Inside size（L*W*H):12.032*2.352*2.385
|
|||||
|
Outside size（L*W*H):6.058*2.438*2.591
|
Outside size（L*W*H):12.192*2.438*2.591
|
||||||
|
Protection level
|
IP54
|
||||||
|
Humidity
|
0-95%
|
||||||
|
Altitude
|
3000m
|
||||||
|
Working
temperature |
-20~50℃
|
||||||
|
Bat volt range
|
500-850V
|
||||||
|
Max. DC current
|
500A
|
1000A
|
|||||
|
Connect method
|
3P4W
|
||||||
|
Power factor
|
-1~1
|
||||||
|
Communication
method |
RS485,CAN,Ethernet
|
||||||
|
Isolation method
|
Low frequency isolation with transformer
|
||||||
