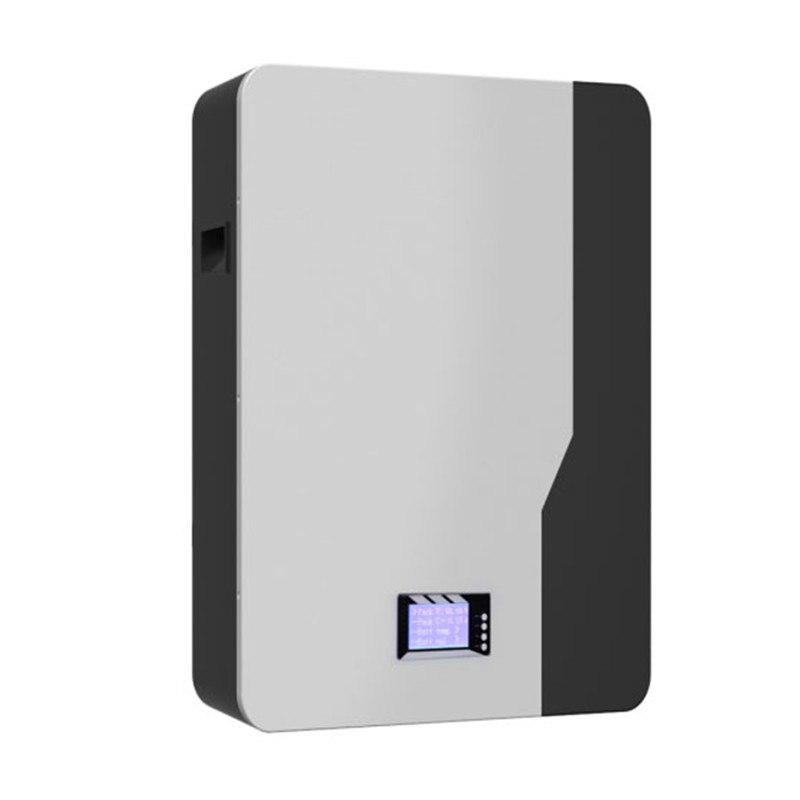

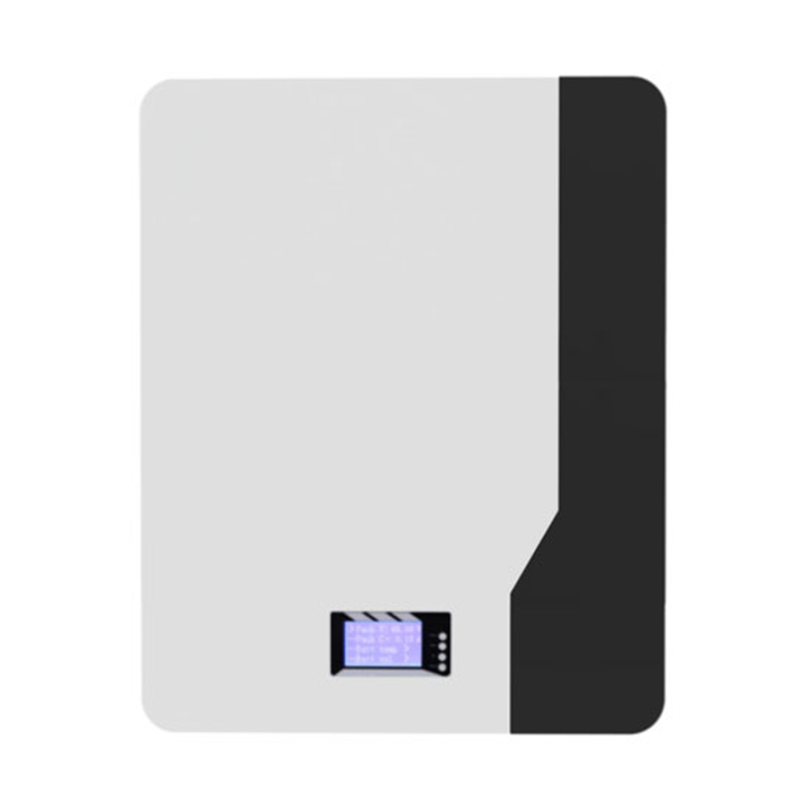

51.2V home energy storage battery 100AH and 200AH are available, corresponding to 5KWH and 10KWH for energy storage.They all support wall -mounted installation methods. 51.2V wall -mounted home energy storage battery adopts domestic A -class Iron phosphate cells, operating voltage range 42V-58.4V.
It has a long cycle life, with over 6000 cycles of 1C charging and discharging in an 80% DOD environment at room temperature.
The maximum working current of the product is 100A continuously, and it can support up to 15 products of the same model to be used in parallel.
It is equipped with weak current switch and intelligent air-cooled cooling system, BMS has RS485 and CAN communication functions.
It is capable of matching multiple inverters including GROWATT, GOODWE, DeYe, LUXPOWER, etc.
Features:
1.Multifunctional design, ON/OFF switch control output.
2.Intelligent air-cooled design, fast heat dissipation.
3.Support parallel connection. The modular design allows energy storage batteries to expand at any time, and the battery pack can be connected in parallel with up to 15 battery packs to obtain more capacity.
4.The intelligent BMS with RS485/CAN function is widely compatible with most inverters in the market, such as GROWATT, GOODWE, DeYe, LUXPOWER, SRNE, etc.
5.Large capacity and power. There are two types of energy storage batteries available: 100Ah and 200Ah, with high battery usage and a maximum discharge current of 100A.
6.Deep cycling, long lifespan, with a cycle count greater than 6000 times.
7.Safe and stable performance. Super safe Lithium iron phosphate battery, integrated BMS overall protection.

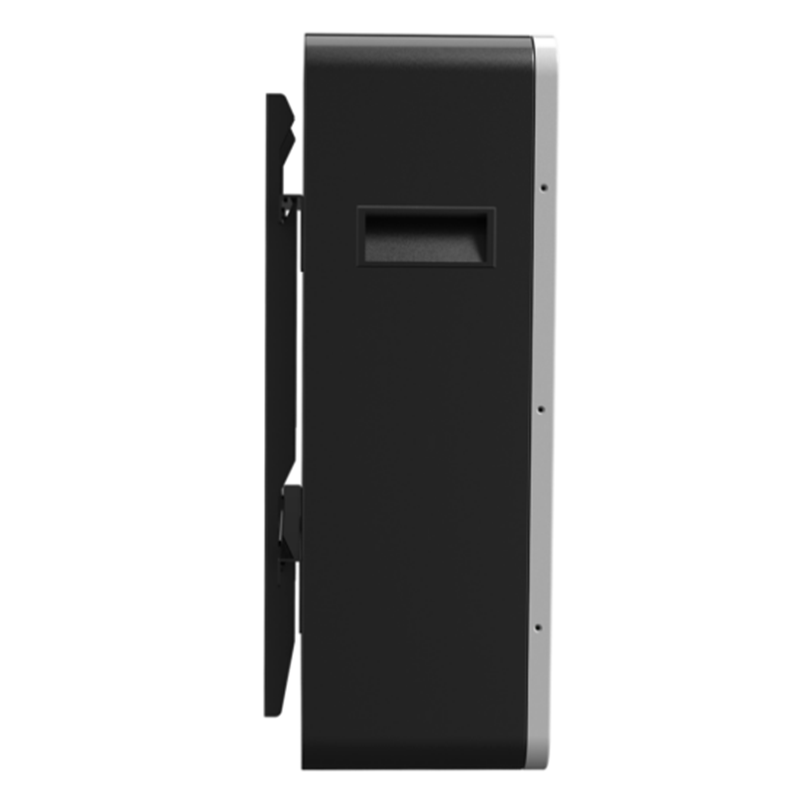

8.Support wall mounted installation methods.

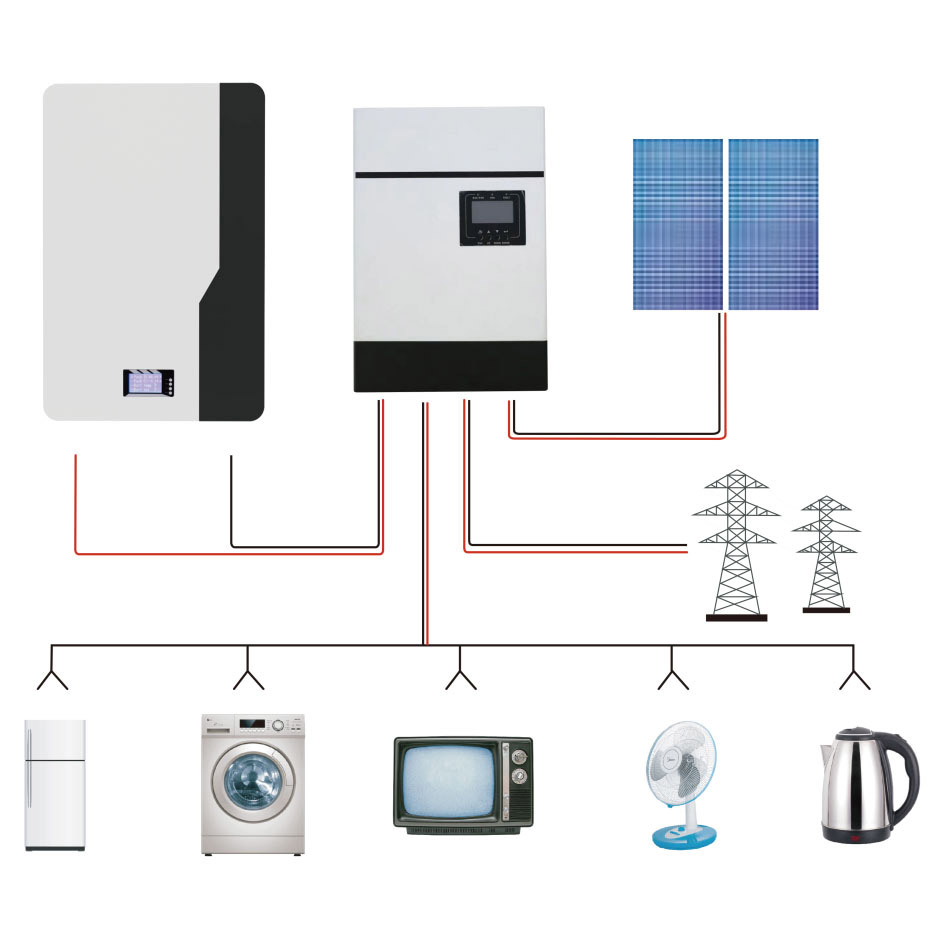

Connection diagram:

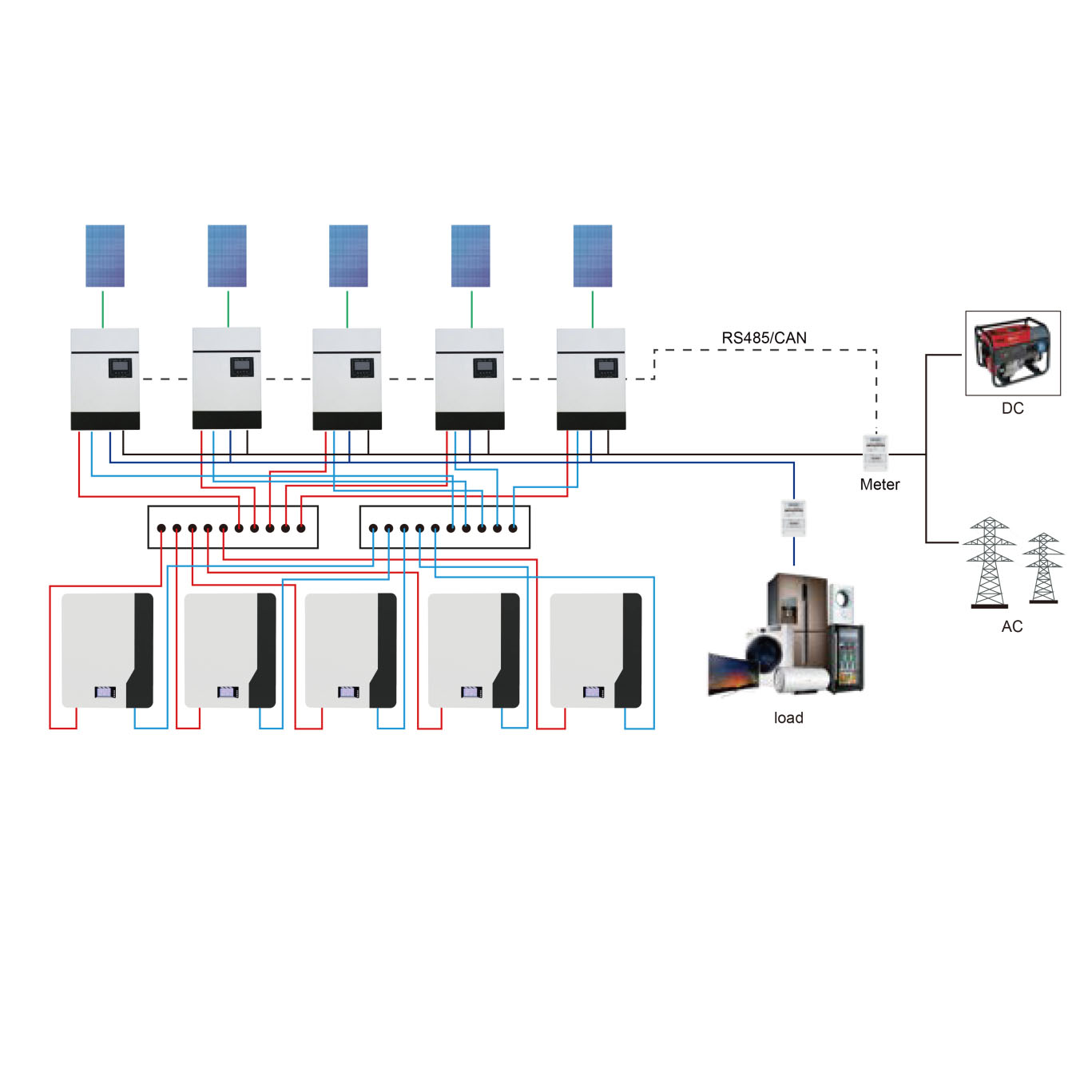

Parallel structure diagram:
