Safety precautions are a must while handling electrical and electronic devices. Special attention towards taking safety measures is required while transferring electrical power from its source (alternating current) to an equipment that is isolated from the power source. This is when transformers (also termed as isolation transformers) come into picture.
1:1 isolation transformers are considered to be safer than straightaway using mains, because with transformers, you can control or limit the supply current. Also, these transformers are known for offering galvanic isolation in order to provide protection against electric shocks.

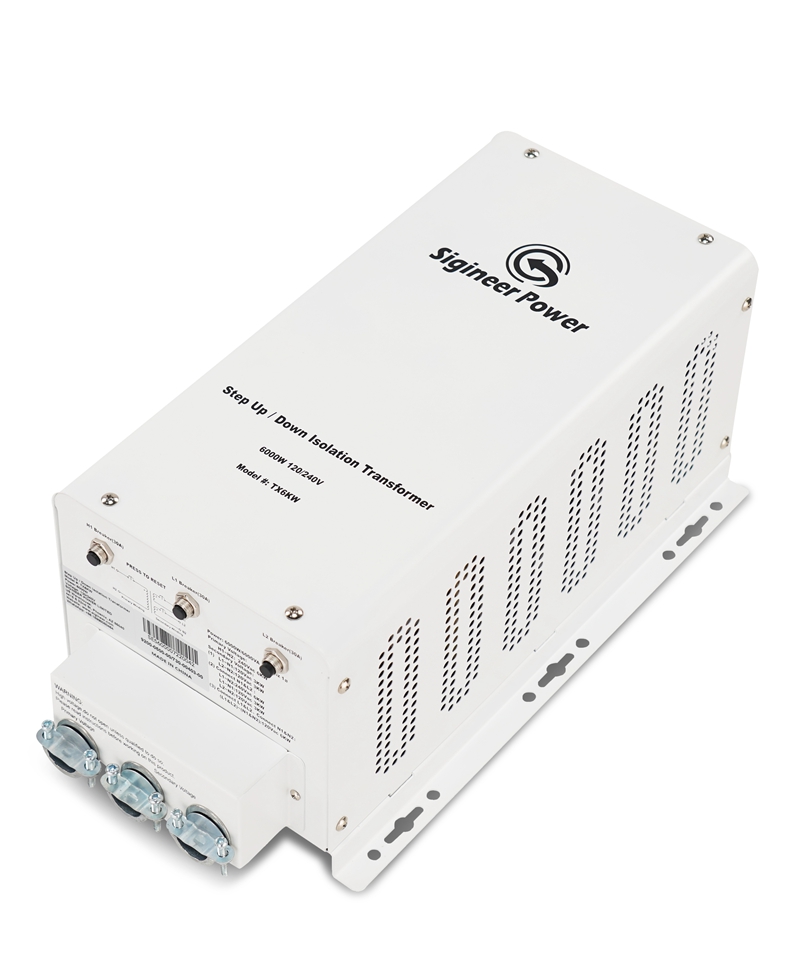

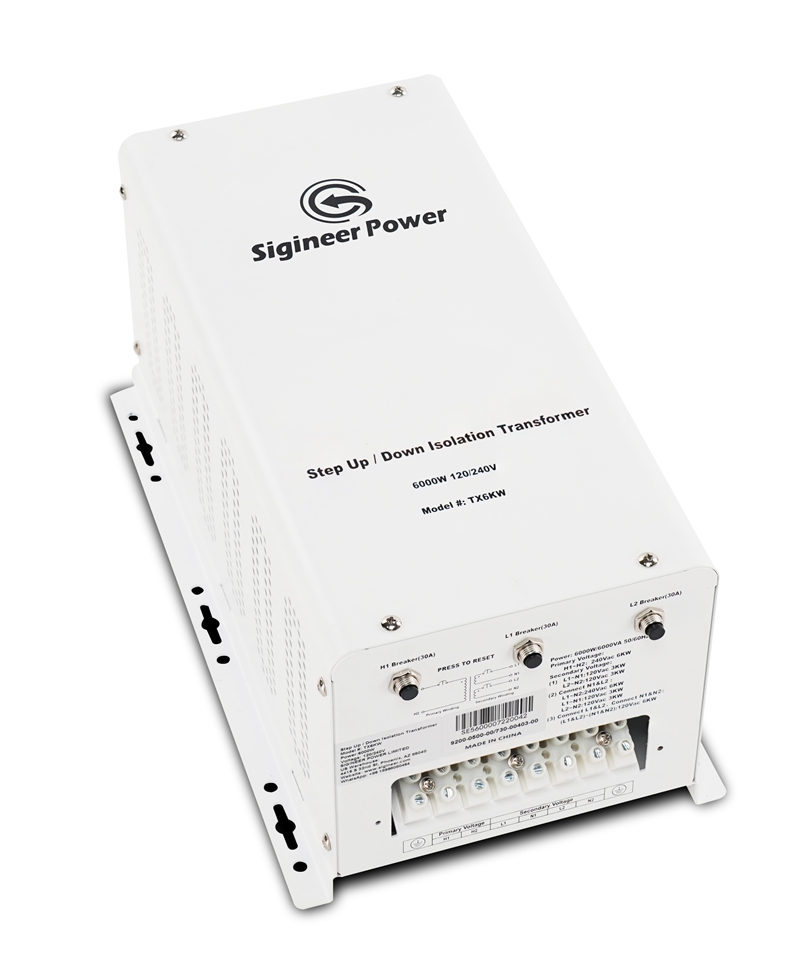

This ATX6KW is a heavy-duty industrial grade isolation transformer to step-up, step-down and isolate voltages. Isolation helps to provide a degree of secondary-side immunity from voltage spikes and noise present on the primary-side system.
Our emphasis on reliable design engineering means that your circuit will have one less potential source of failure. Don’t take the unnecessary chances with low-cost parts.
It can
1 split 240Vac single phase voltage into 120/240Vac split phase
2 step down 240Vac to 120Vac
3 step up 120V to 240Vac
It has two groups of power sources, A and B.
Either can be used as voltage input and thus the other will work as voltage output.

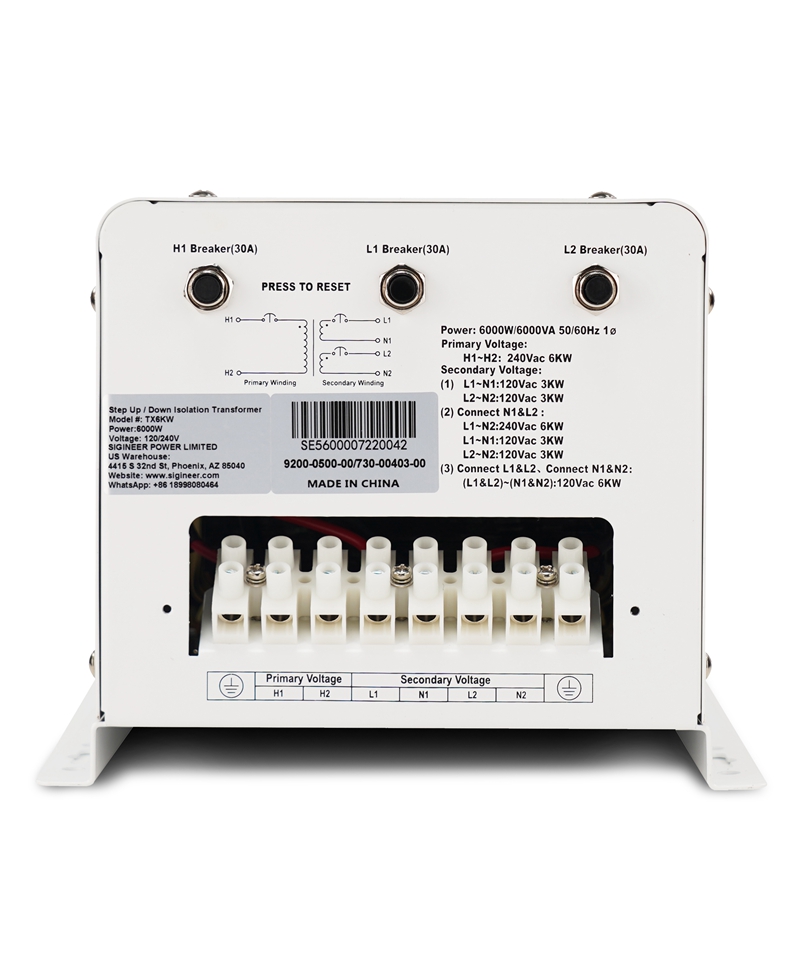

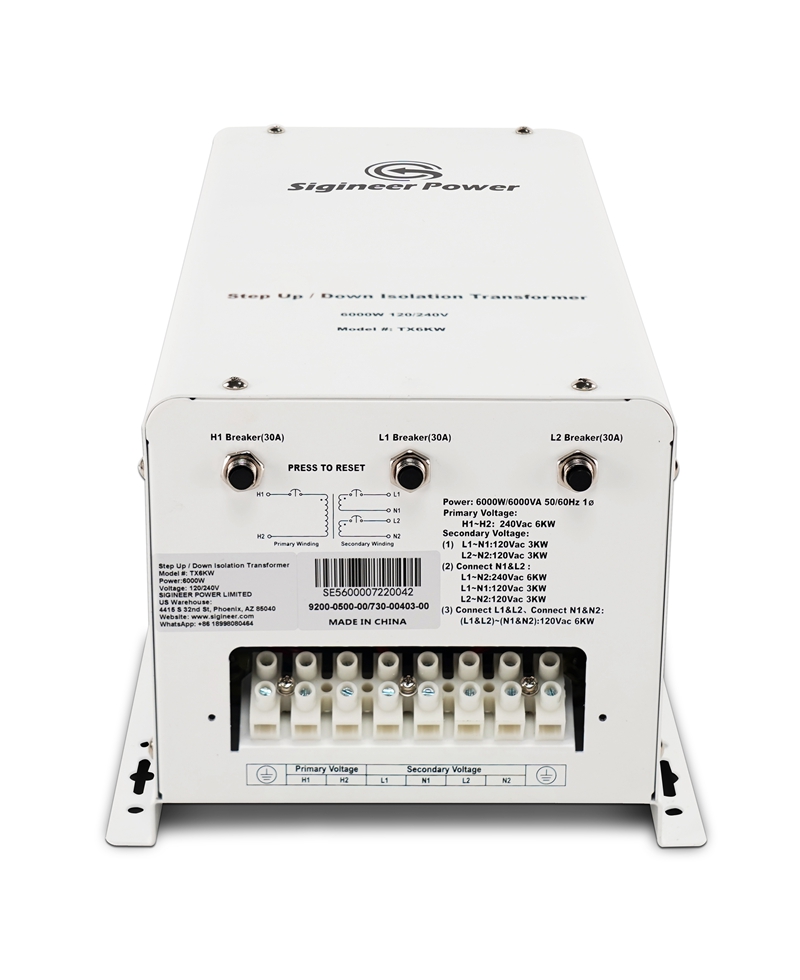

POWER SOURCE A
H1~H2:240Vac 6KW Max
POWER SOURCE B
(1) L1~N1:120Vac 3KW Max
L2~N2:120Vac 3KW Max
(2) N1&L2 Connect
L1~N2:240Vac 6KW Max
L1~N1:120Vac 3KW Max
L2~N2:120Vac 3KW Max
(3) L1&L2 Connect
N1&N2 Connect
L1/L2~N1/N2:120Vac 6KW Max
Contact us at [email protected] to learn more.
