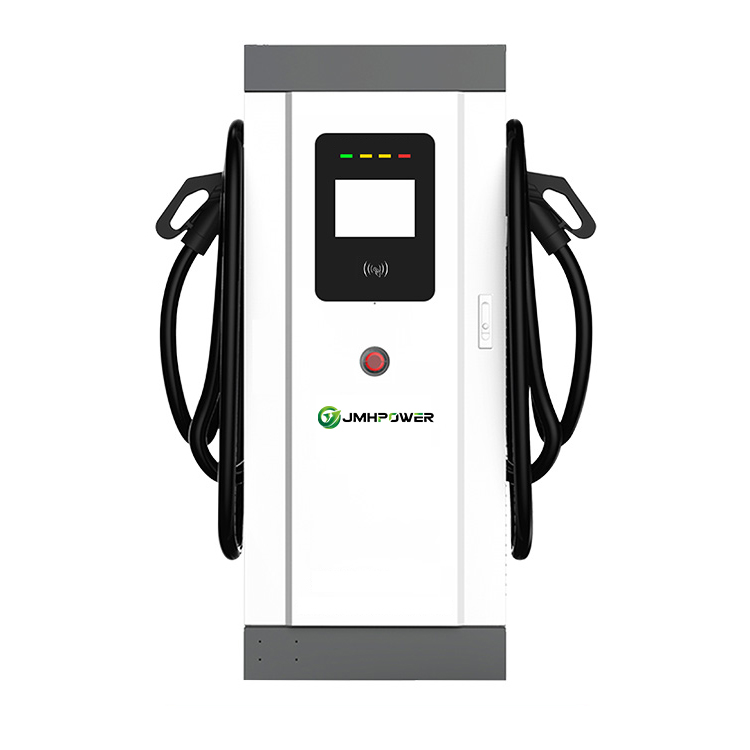

The 60kw dc dual ev charger is a powerful and efficient charging solution designed for fast and convenient electric vehicle charging. It features dual charging ports, allowing two EVs to be charged simultaneously with intelligent load balancing. This charger supports a wide output voltage range of 150Vdc to 1000Vdc, making it compatible with various CCS2-compatible EVs. It also includes advanced features such as multiple start modes like plug-and-play, RFID, and OCPP. Additionally, its robust design with IP54 protection ensures reliability in different environments.
| Output Maximum Power | 60KW |
| Charging Connector | Dual Connector |
| Input Voltage Range | 380Vac±20% |
| Output Voltage Range | 1000Vdc |
| Activation(Configuration Options) | POS Machine/Scan OR Codes/RFID Payment Terminals with OCPP |
| Connectivity | Standard RJ45 Interface/4G |
| Dielectric Strength | ≥2000V |
| Connector Type | GB/T20234.2-2015 Type C CCS1/CCS2 |
| Dependability | 50000h |
| Protection System | Over/Under Voltage,Shortcircuit Overload,Leakage,Surge Protection |
| Charging Cable Length | 5m(Customization Acceptable) |
| Operating Temperature Range | -20~50℃ |
| Storage Temperature Range | -20~70℃ |
| Noise | ＜75dB |
| Current Regulation Accuracy | ≤±1% |
| Voltage Regulation Accuracy | ≤0.5% |
| Output Current Error | ≤±1% |
| Output Voltage Error | ≤±0.5% |
| Measurement Method | Energy Meter |

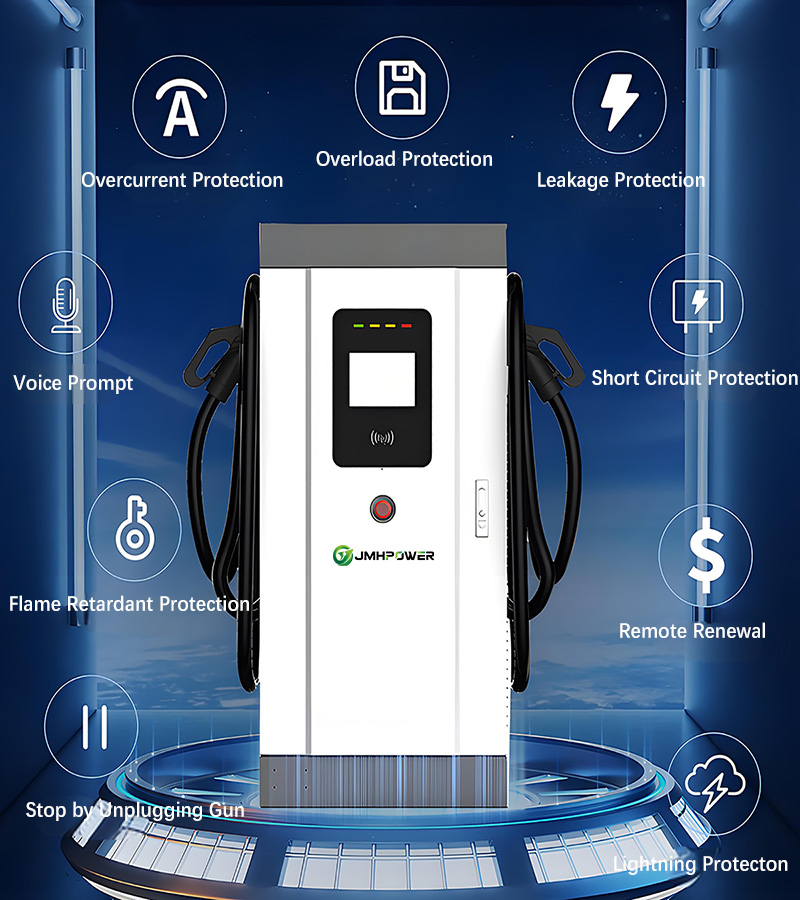

1. Voice Prompt: Provides audio feedback to guide users through the charging process, indicating start/end of charging and alerting to issues.
2. Overcurrent and Overload Protection: Automatically detects and responds to abnormal current or power levels to prevent damage to equipment and vehicles.
3. Leakage and Short Circuit Protection: Quickly detects leakage or short circuit situations and cuts off power to prevent electric shocks and fires.
4. Fire Retardant Protection: Uses fire retardant materials to reduce fire risk and slow fire spread.
5. Stop by Unplugging Gun: Cuts off power immediately when the charging gun is removed from the vehicle, ensuring safe disconnection.
6. Remote Payment: Allows users to pay remotely, enabling seamless and convenient charging without physical interaction.
7. Lightning Protection: Protects internal components from lightning strikes or surges, ensuring stable operation during adverse weather.
Yes, these chargers are typically designed to operate in a wide range of temperatures and weather conditions. They are often rated for outdoor use with an IP54 protection rating, which means they are protected against dust and water ingress. However, it is important to follow the manufacturer’s guidelines for optimal performance in extreme conditions.
While the 60kw dc ev charger supports a wide range of electric vehicles, compatibility depends on the vehicle’s charging port type and maximum allowed charging power. Most modern EVs support DC fast charging, but it is important to verify the specific requirements of your vehicle to ensure compatibility. Some ev chargers offer multiple connector types (e.g., CCS, GB/T) to enhance compatibility.
The primary benefits of using a 60kw public ev charger include significantly faster charging times, which reduce the waiting period for drivers. Additionally, these chargers are more suitable for high-traffic locations and commercial applications where multiple vehicles need to be charged quickly.
No, the 60kw charging point is generally not suitable for residential use due to its high power output and the significant electrical infrastructure required. Residential installations typically lack the necessary power capacity and grid connection to support such a high-power charger. Additionally, the cost and complexity of installation make it impractical for most homes.

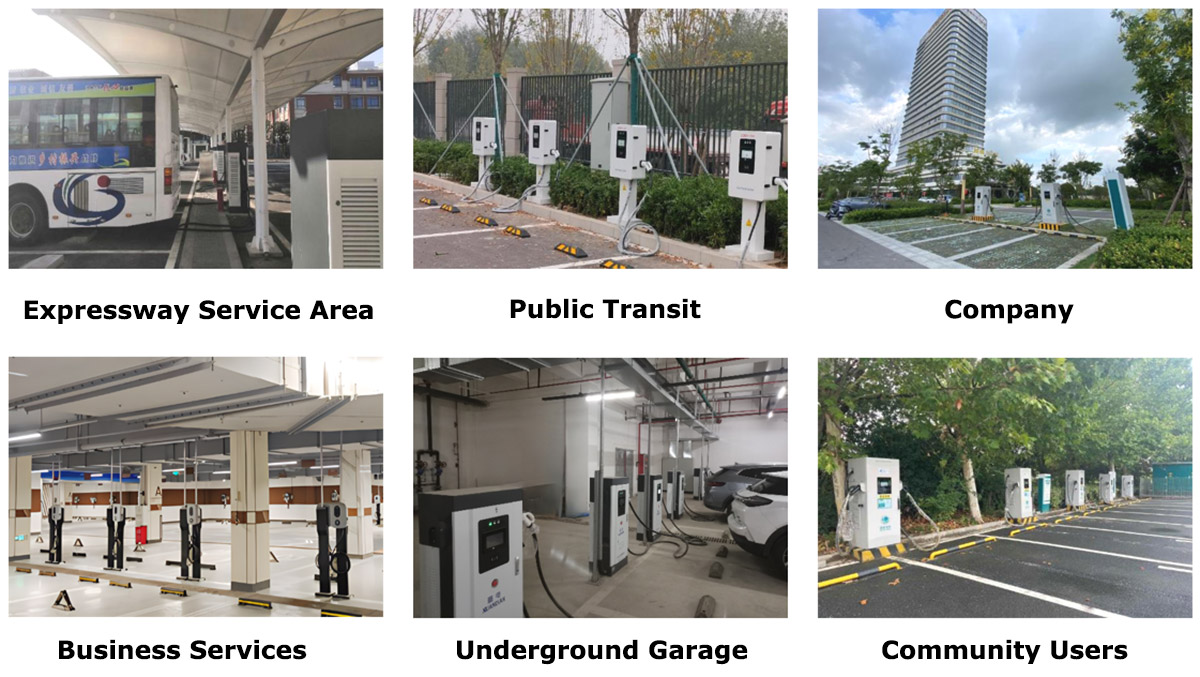

When selecting a location for a 60kw dc charger, key considerations include proximity to high-traffic areas, availability of sufficient electrical supply, ease of access for drivers, visibility, and security. Additionally, it is important to consider the local demand for EV charging and any relevant zoning or permitting requirements.
