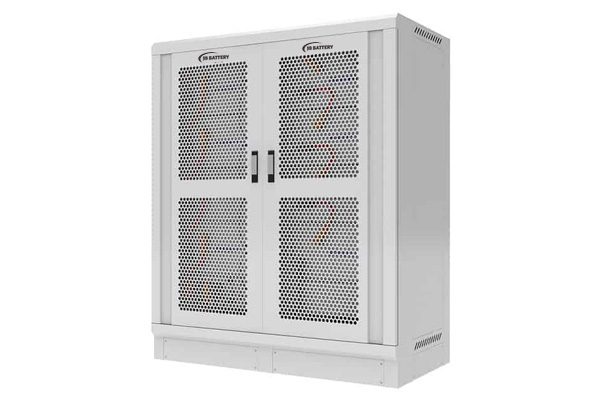

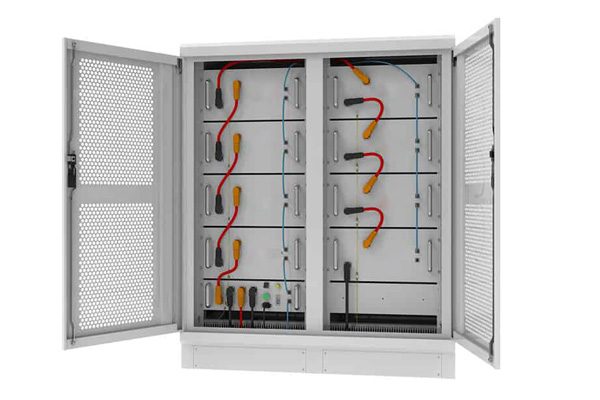

69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems

69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems

  • 69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems
  • 69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems
  • 69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems
  • 69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems
Summary
69.1Kwh Large-scale Energy Storage Battery, 691.2V High Voltage BESS for Solar Grid Backup & Industrial UPS Systems. UL1642 certified, 100Ah LFP cell, 90% capacity recovery, safe & reliable with no fire, explosion or leakage. Ideal for industrial energy storage, renewable integration, and off-grid power solutions, ensuring stable, efficient, and sustainable backup power.More
Specifications
Nominal Power:
69.1Kwh
Standard Voltage:
691.2V
Dimensions (mm):
1200*800Cabinet
  • 69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems
  • 69.1Kwh Large-scale Energy Storage Battery High Voltage 691.2V for Solar Grid Backup and Industrial UPS Systems

Description

Specification

Basic Parameters

Rated Capacity 100Ah 100Ah 100Ah 100Ah 100Ah 100Ah


Nominal Power 56.3Kwh 58.9Kwh 61.4Kwh 64.0Kwh 66.6Kwh 69.1Kwh


Standard Voltage 563.0V 588.8V 614.4V 640.0V 665.6V 691.2V


Vmin 440V 460V 480V 500V 520V 540V


Vmax 634V 662V 691V 720V 749V 778V


Perfect Power Reliability Made Simple
Our intelligent lithium-powered industrial energy storage gives you control over grid power use. It enables you reduce operating costs and optimize energy usage when needed the most. In the event of power outages, reliable backups prevent costly and potentially dangerous situations in industry production.

Pairing industrial energy storage solutions with renewable sources such as solar or wind allows you to maximize sustainable production and store excess green energy when it is produced. A game-changer for the industries and ultimately for the environment. Secure a first-mover advantage and stay ahead of your competitors.

The industrial sector uses more delivered energy than any other end-use sector, consuming about half of the world’s total delivered energy. The production and assembly processes are highly energy demanding due to process heating and cooling as well as lighting, heating and air conditioning of large buildings. With high demand costs, industrial facilities are prime candidates for energy storage to reduce demand, improve power factor, and reduce operating costs.

Manufacturers are facing higher energy costs in the near future, as new decarbonized industry standards and government demands are set. In a competitive industry, manufacturers ultimately pass through the full cost increase to suppliers and end-customers. Energy storage solutions let you balance the supply and demand of electricity without having to compromise on process, product or the end-customer’s price.

JB BATTERY Technology
Our utility-scale lithium-powered energy storage solutions enable you to minimize the risk of costly interruptions to your busy schedules, while reducing CO2-emissions and energy costs at the same time. Polarium’s modular battery solutions allow you to adapt to your evolving needs and provide safe and sustainable energy.

By leveraging on our deep expertise from the telecom sector and lithium batteries, as well as our flexible product configurations, we are positioned to transform the energy use of your asset. Polarium’s products are of superior quality and will stand the test of time.

Load shifting
JB BATTERY energy storage system will reduce grid usage cost through providing electricity stored during the valley.

Self-consumption
Battery energy storage system is the best friend of renewable energy. It can storage energy when power requirement is low and provide electricity when power requirement is more than power generation.

Backup power
Battery energy storage system can also play a role as backup power instead of traditional diesel generator set with lower noise and carbon emission.

Off-grid system
A battery energy storage system can realize an stable off-grid system with a photovoltaic system. Besides, the battery energy storage system can help reduce the consumption of traditional off-grid diesel generator.
