Product Description

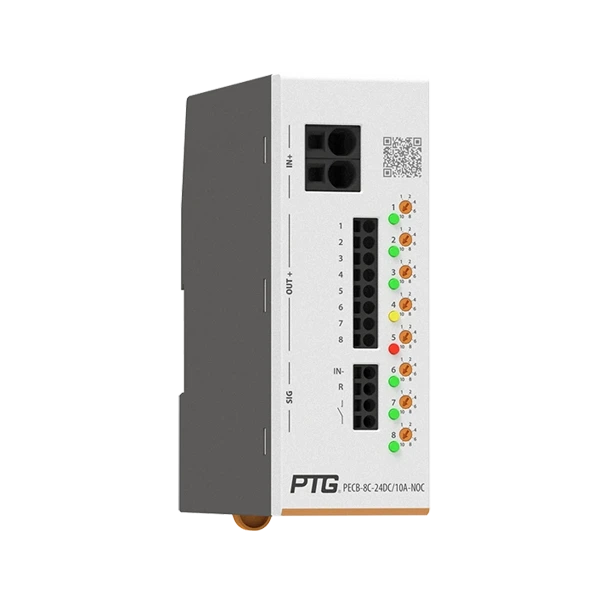

In industrial control applications, circuit breakers are critical components. Electronic components with active protection functions can provide optimal overload and short circuit protection for loads, ensuring that non faulty circuits are not affected and operate normally, thereby ensuring the uninterrupted operation of the production process. 4/8-channel multi-channel electronic circuit breaker, compact in size and highly integrated. Customers can freely configure and reliably operate each channel through LED buttons and current knobs, and it has remote alarm, reset, and control functions.
Technical Parameters
| Product Type | PECB-8C-24DC/10A-NOC |
| Channels | 8 |
| Rated voltage | 24VDC |
| Rated current | 1A-2A-4A-6A-8A-10A adjustable |
| Default value | 10A |
| Effciency | >99% |
| Capacitive loading | >80mF |
| Initialization time | 50ms-2s |
| Cooling time after shutdown | 10s |
| Undervoltage protection | ≤18VDC |
| Overvoltage protection | ≥30VDC |
| Overcurrent protection | 0.05s (>1.5IN) |
| 2s (1.3IN... 1.5IN) |
| 30s (1.1IN. ... 1.3lN) |
| Short circuit tripping ability | 1000A |
| Backup protection fuse | 13A |
| Remote alarm siqnal | N0 contact (13/14) |
| Remote reset | None |
| Remote control | High voltage control |
| Width x Height x Depth | 48mm x 136mm x 115mm |
