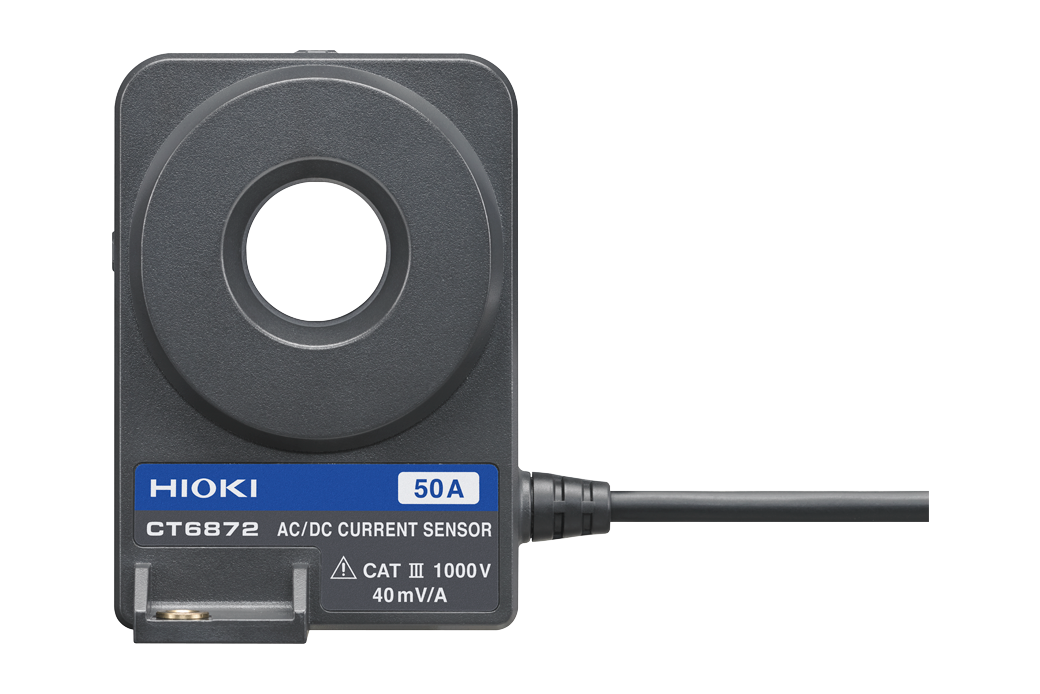

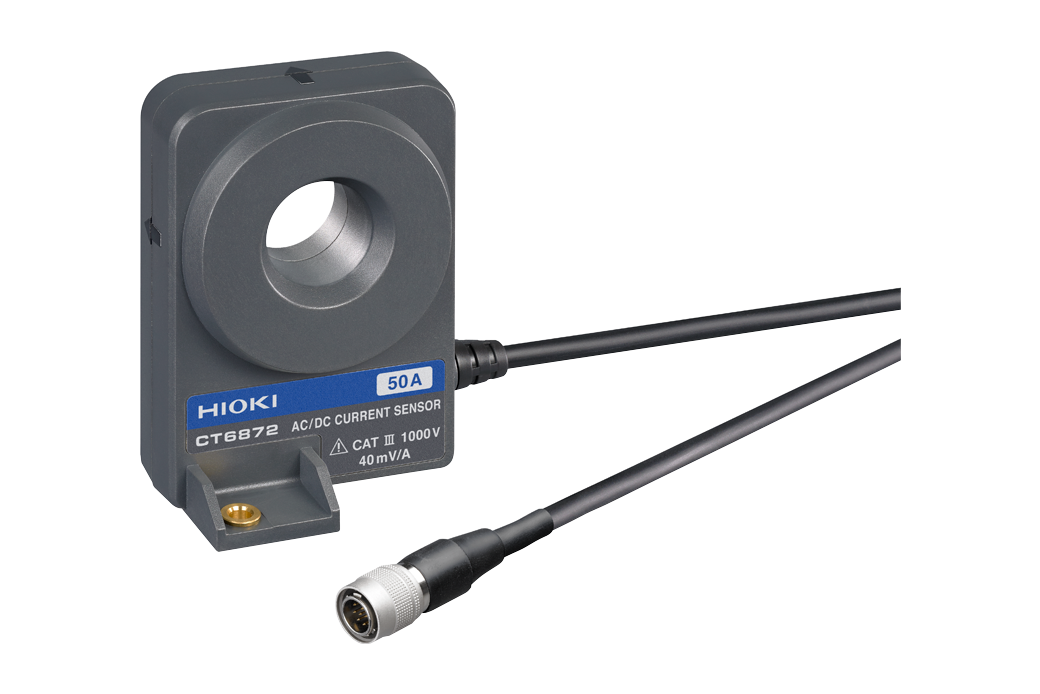

AC/DC CURRENT SENSOR CT6872 Wideband High Accuracy 50A Current Measurement for EVs and Solar Power Systems

Hioki's pass-through type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit. The CT6872 has a frequency bandwidth of DC to 10 MHz and a rated current of 50 A. It is used for R&D, quality evaluation, manufacturing, and maintenance in markets such as wireless charging systems, inverter motors for industrial equipment, power conditioners for PV, and quick charging facilities for EVs.
Use with an instrument with a high input impedance of 1 MΩ or higher.

Key Features

• Combined accuracy with HIOKI power analyzer PW8001, PW6001 and PW3390 is specified. For details of combined accuracy, refer to the instruction manual.
• Wide-bandwidth DC to 10 MHz excellent frequency characteristics

• Applications in the fields of electric and hybrid electric vehicles

• Wide operating temperature range(-40°C to 85°C) fit for automobile applications

• Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters

• For observing waveforms to be used with the oscilloscopes or Memory HiCorders (use with Sensor Unit)
