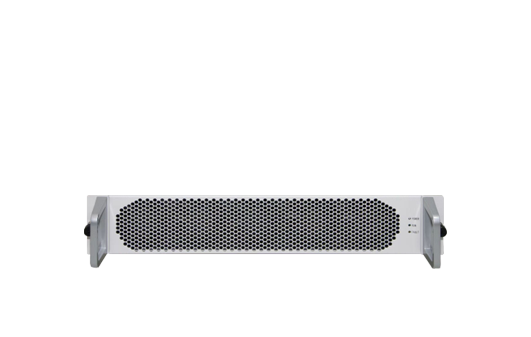

SinPOWER Active Power Filter (APF) by ACTIONPOWER is a high-precision, high-capacity solution designed for real-time harmonic compensation in industrial and commercial power systems. With module capacities from 10A to 200A and single cabinet capacity up to 1500A, it ensures over 95% compensation accuracy. Featuring ultra-fast ≤5ms response time, multi-function compensation (harmonics, reactive power, three-phase imbalance), and wide application across smart grids, data centers, photovoltaic systems, and industries like metallurgy and semiconductors, it enhances power quality and system efficiency. Built with advanced SiC technology, the APF delivers reliable performance under harsh conditions, ensuring compliance with global energy standards.More
Altitude<2000m; for altitudes over 2000 meters, use according to derating requirements specified in GB/T3859.2
Incoming modeWhole cabinet: Top entry line/bottom entry line/through-busbar on top of the cabinet
Overall dimensions10A（ibook）：243mm×167mm×88mm(2U)；10A~40A (High precision): 380mm x 400mm x 88mm (2U)；50A/75A：440mm×560mm×88mm(2U)；100A/150A：440mm×560mm×145mm(3.3U)；200A：440mm×560mm×228mm(5.2U)；Complete machine: 800 x 1000 x 2200; dimensions of the complete machine can be
Installation methodModule: rack-mounted or wall-mounted; complete machine: freestanding installation
Display screen7-inch touch screen
Display contentVoltage, load current, compensating current, grid-side current, voltage distortion rate, current distortion rate
Communication interface and communication modeRS485, LAN, WiFi (optional configuration)
