Application：
1. The connection between the seismic brace and the base surface.
2. The connection between the seismic brace and the main body of the bracket.
3. The angle of diagonal bracing can be adjusted arbitrarily.
4. The universal connection base can be fixed to the base surface of concrete, steel structure, etc.
Structure：
1. The vise-type one-piece has strong bearing capacity and is connected by double-body dumpling chain.
2. Twist off the control nail bolts.
Installation：

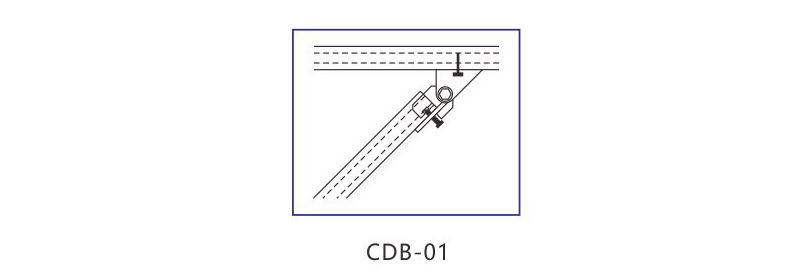

1. CDB-01 is used to connect to the base surface, and CDB-02 is used to connect to the main body of the bracket.
2. The diagonal brace C-shaped steel back wall is inserted into the tiger-mouth clamp of the base, and the nail head bolts are tightened and fixed. Nail head bolts twist off the bolt heads to control the torque and prevent anti-twisting and loosening.
GB 50981 Seismic Design Code recommends the installation form.
P·Standard：
1. Material: Q235B, produced according to JISG3131 standard.
2. Galvanized: Electro-galvanized, thickened 8um and then sealed, produced in accordance with GBT 9799 standard.
3. Other anti-corrosion treatment: hot-dip galvanizing, epoxy spraying.
