Technical Parameters |
|
|
Model |

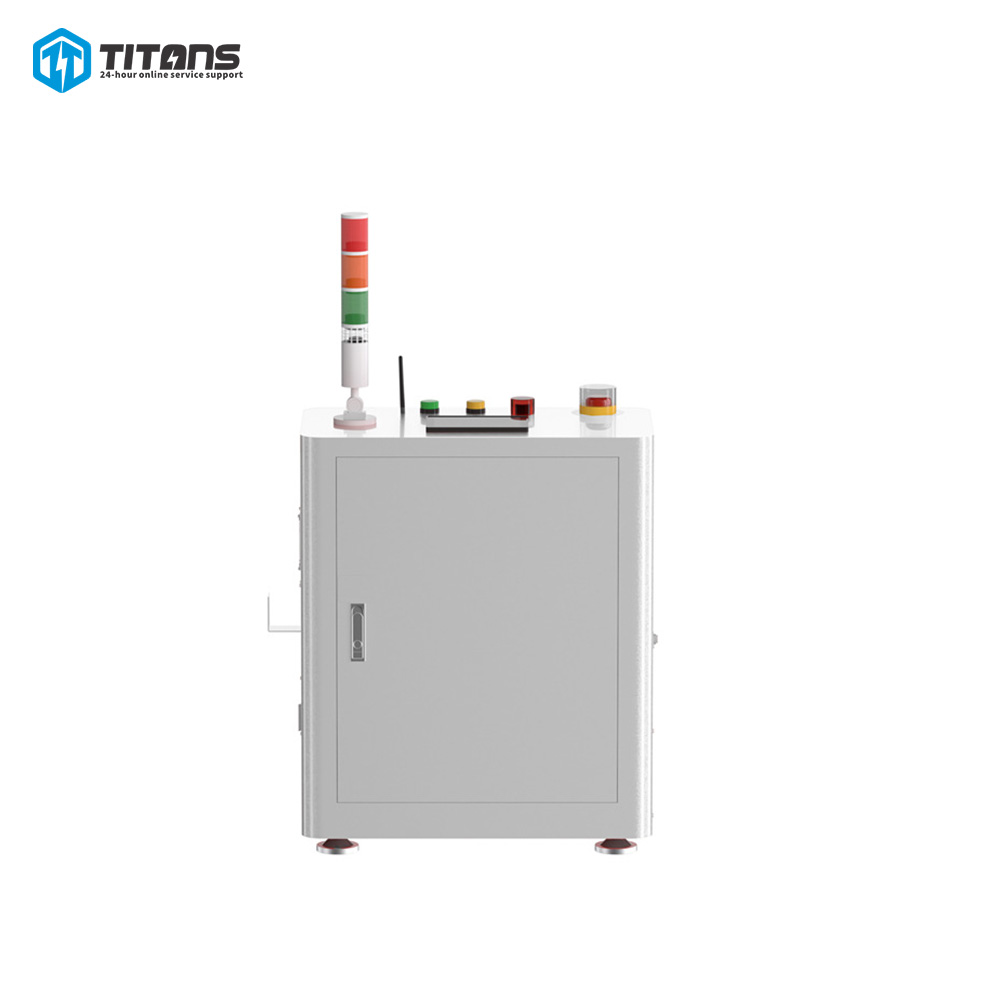

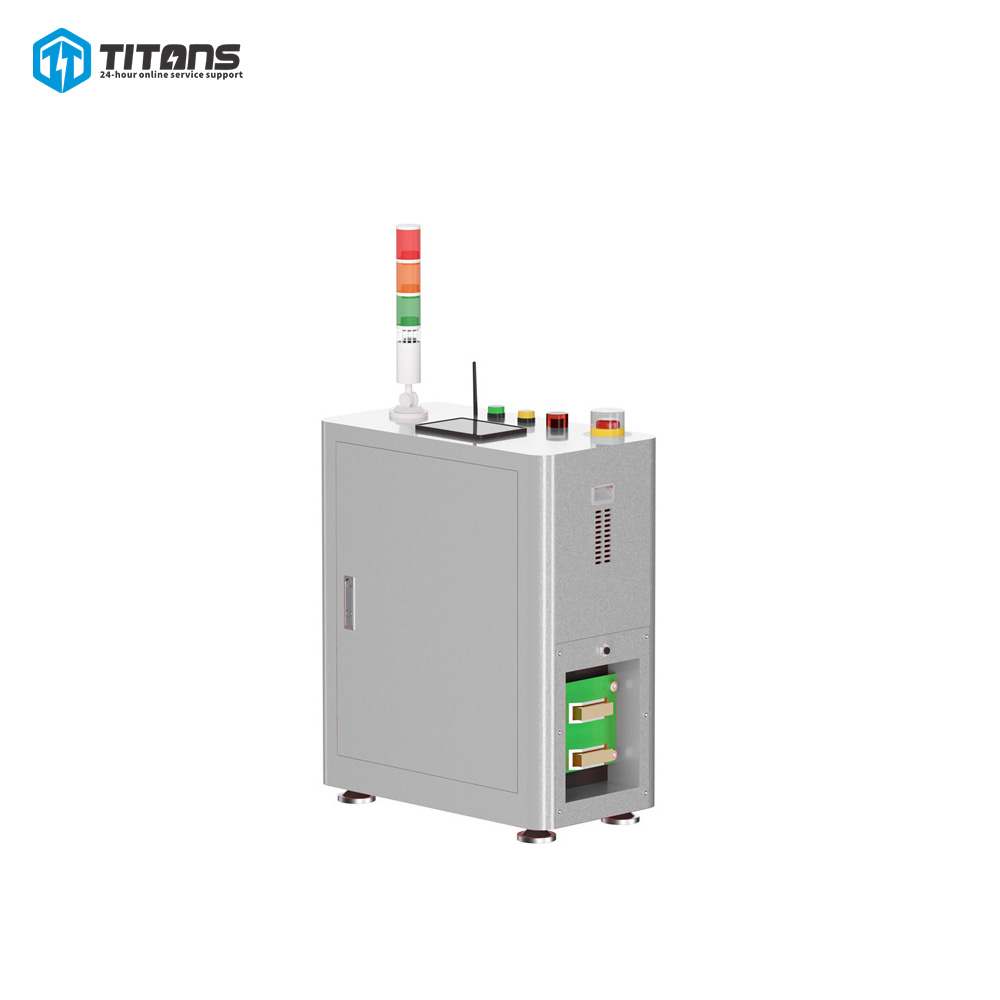

All-in-one Intelligent AGV (telescopic mechanism) |
|
System Input Characteristics |
|
|
Ac Input Voltage |
220Vac/380Vac/480Vac |
|
Power Supply |
Single-phase three-wire (L+N+PE)/Three-phase four-wire (3P+PE)/Three-phase five-wire(3P+N+PE) |
|
Ac Network Frequency (HZ) |
50～60Hz |
|
Leakage Current |
<3.5mA |
|
Start-Up Inrush Current |
Less than 10% of the rated input current |
|
System Output Characteristics |
|
|
Output Voltage |
20Vdc~110Vdc |
|
Output Current Range |
5A~300A |
|
Voltage Regulation Accuracy |
≤±0.5% |
|
Current Regulation Accuracy |
≤±1% |
|
Voltage Ripple |
≤±1% |
|
Efficiency |
≥93% |
|
Overload Capacity |
110% of rated power |
|
Communication Interfaces |
RS485 Interface、CAN Interface、Ethernet Interface |
|
Protection Functions |
|
|
Battery Reverse Polarity Protection |
Yes |
|
Output Short Circuit Protection |
Yes |
|
Output Overvoltage/Overcurrent Protection |
Yes |
|
Overtemperature Protection |
Output shuts down if internal temperature >65℃ |
|
Abnormal Protection |
Shuts down with no output if power device anomaly occurs |
|
Other Parameters |
|
|
Protection Level |
IP20 |
|
Overvoltage Category |
OVC III |
|
Operating Temperature |
-20℃ to +65℃ (derated output from 45-65℃) |
|
Storage Temperature |
-40℃～+75℃ |
|
Relative Humidity |
5～95%, non-condensing |
|
Altitude |
Full load output up to 2000m |
|
Charger Dimensions |
650*350*755mm (L*W*H) |
|
Product Weight |
35kg |
|
Cooling Method |
Air cooling |
