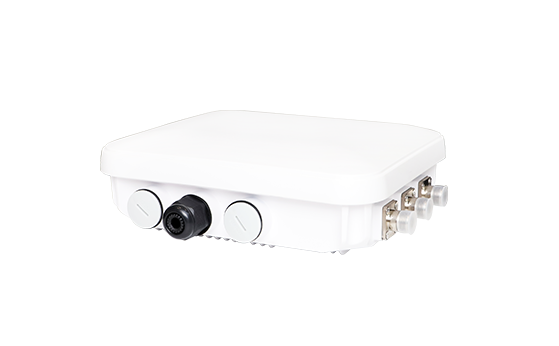

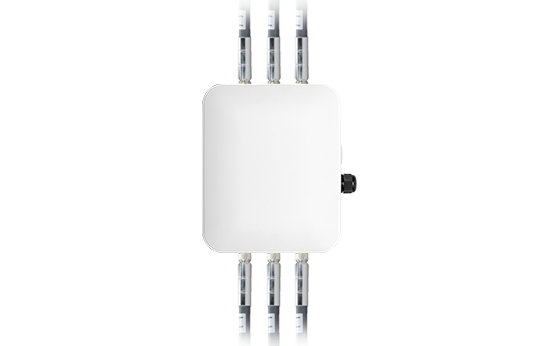

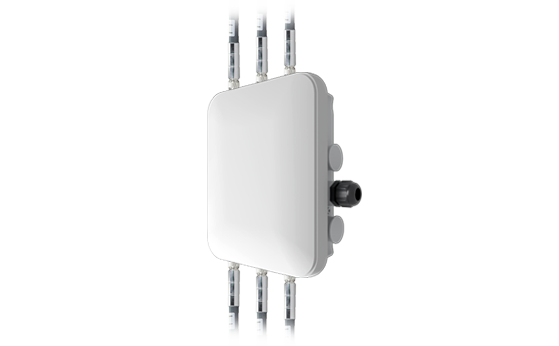

AP530X Outdoor WiFi6 AX7800 Tri-band Access Point delivers high-performance wireless connectivity for demanding industrial and outdoor environments. Featuring a powerful Qualcomm core, 27dBm TX power, and tri-band (2.4GHz/5GHz-1/5GHz-2) technology, it achieves a combined speed of up to 7800Mbps, ensuring robust, long-range coverage. Ideal for smart cities, logistics, mining, and large-scale parks, this IP67-rated, industrial-grade AP supports PoE+ power, centralized controller management, and advanced WiFi6 features like MU-MIMO and OFDMA for optimized multi-user performance.More
AP530X | Outdoor WiFi6 AX7800 Tri-band APWiFi6 commercial AP, industrial AP, 7800MbpsAP530X is an outdoor WiFi6 tri-band AP. The product is based on the powerful Qualcomm wireless core. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas. It is compatible with IEEE 802.11a/b/g/n/ac/ax protocols and supports WiFi6 tri-band(2.4 Ghz/5Ghz-1/5Ghz-2), the maximum concurrent rate is close to 7800Mbps. The product comes with a standard configuration of a 512MB RAM(customizable from 256MB to 1GB). The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software designed by our professional R&D team. The product can be widely used in industries and scenarios such as park coverage, mine sites, smart warehousing&logistics, smart city, exhibition halls and venues.Powerful wireless coreThe product adopts the powerful WiFi6 wireless core of Qualcomm, which supports the latest features such as tri-band concurrency, OFDMA, MU-MIMO, and 160Mhz, and supports up to 256 wireless terminals. With the support of MU-MIMO technology, multi-user wireless access does not require queuing and access latency can be minimized.High-power WiFiThe wireless transmission power of up to 27dBm ensures stronger signals, wider coverage, and stronger penetration capabilities.WiFi6 tri-band concurrency, ultra-high speedTri-band concurrent rate reaches 7776.5Mbps - - 2.4Ghz maximum rate 573.5Mbps, 5Ghz-1 maximum rate 2401Mbps, 5Ghz-2 maximum rate 4802Mbps.Fat&thin AP in one, supporting centralized controller managementThe device supports two AP modes: fat and thin, different modes can be selected for different scenarios. In fat AP mode, each AP can be managed flexibly and independently, which is suitable for small networks with only a few APs and can be deployed flexibly and quickly; In thin AP mode, all APs are centrally managed by the controller, which is suitable for medium-sized and above networks. The controller delivers configurations to all APs remotely and supports remote upgrade of AP firmware.Enterprise-grade software features
Supports three working modes: router, access point and wireless repeater, flexibly adapting to different usage scenarios.
Supports multiple VPN functions such as IPSec, L2TP, PPTP, etc.
Industrial-grade design, quick installation
Supports 802.3at PoE power supply mode which makes the deployment easy and fast.
IP 67 waterproof rating.
Built-in surge protectionBuilt-in 2kv surge protection(line to line) can protect the device in complex electrical environments to provide long-term service to users.
