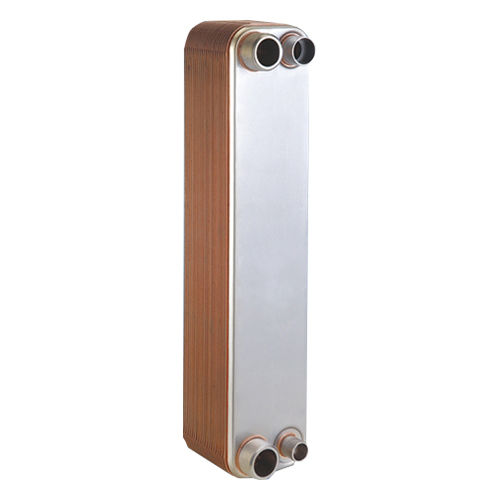

B3-028 High-Efficiency Heat Exchange Plates for Battery Energy Storage Systems

Zhejiang Shengsong Heat Exchanger Co., Ltd 2010-07

China

Summary

B3-028 High-Efficiency Heat Exchange Plates for Battery Energy Storage Systems. Designed for optimal thermal management in energy storage applications, these plates ensure superior heat transfer performance and reliability. Featuring a compact design with customizable plate numbers up to 150, they support a wide temperature range (-196 to +200°C) and are suitable for liquid or gas cooling systems. Built to withstand high pressures (up to 4.5MPa design, 6.75MPa test), these plates are ideal for advanced battery systems in renewable energy and industrial storage solutions.More

Specifications

Design Pressure:

3.0MPa, 4.5MPa

Test Pressure:

4.5MPa, 6.75MPa

Design Temperature:

-196-+200℃

INQUIRY

Description Download

Model	No. of plates	A(mm)	Weight(kg)	Side volume(L)Q1Q2Side Q3Q4Side	Heat exchange area(m2)
B3-028	n	9+2.3n	1.3+0.09n	0.05×n/2？？0.05×(n-2)/2	(n-2)×0.028

Products Description
Design Pressure	3.0MPa
Design Pressure	4.5MPa
Test Pressure	4.5MPa
Test Pressure	6.75MPa
Design Temperature	-196-+200℃
Channels	H、L、M
Max Welded Connection	1 3/8"
Max Threaded Connection	1 1/4"
Max No. of plates	150

Zhejiang Shengsong Heat Exchanger Co., Ltd

Zhejiang Shengsong Heat Exchanger Co., Ltd

2010-07

China

Brazing plate heat exchangers, Gasket plate heat exchanger
