plug and play
|
Nominal Capacity
|
15.36KWH
|
20.48KWh
|
25.6KWh
|
30.72KWh
|
35.84KWh
|
40.96KWh
|
|||||
|
Cell Matching
|
48S1P
|
64S1P
|
80S1P
|
96S1P
|
112S1P
|
128S1P
|
|||||
|
Working Voltage Range
|
124.8-172.8V
|
166.4-230.4V
|
208-288V
|
249.6-345.6V
|
291.2-403.2V
|
332.8-460.8V
|
|||||
|
Nominal Voltage
|
153.6V
|
204.8V
|
256.0V
|
307.2V
|
358.4V
|
409.6V
|
|||||
|
Weight
|
175kg/202kg
|
223kg/252kg
|
271kg/301kg
|
319kg/351kg
|
367kg/401kg
|
415kg/452kg
|
|||||
|

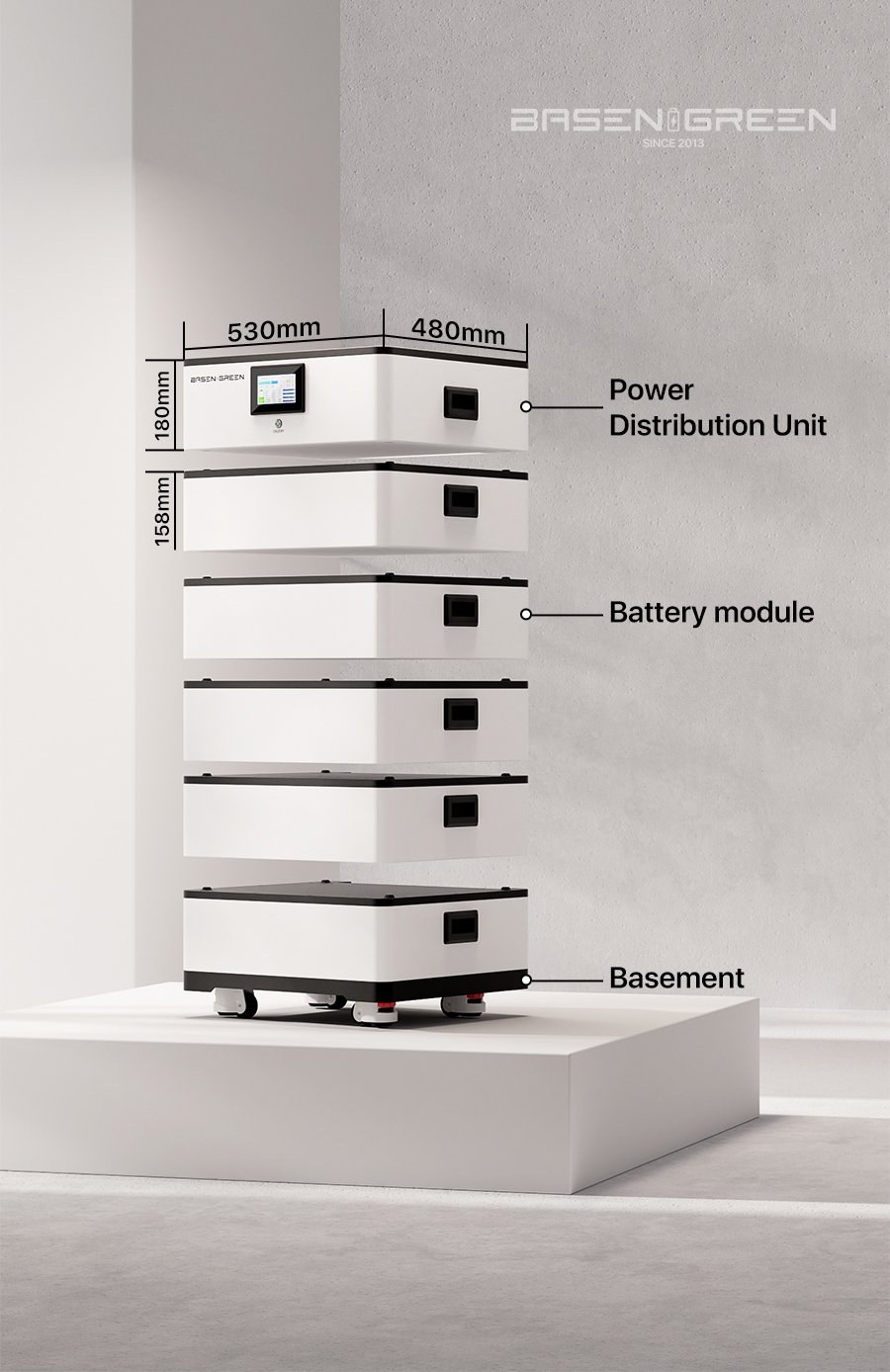

Dimension
(WxDxH)
|
530*480*
760mm
|
530*480*
920mm
|
530*480*
1080mm
|
530*480*
1240mm
|
530*480*
1400mm
|
530*480*
1560mm
|
|||||
|
Battery Type
|
LFP(LiFePO4)
|
||||||||||
|
Nominal Working Current
|
50A
|
||||||||||
|
Communication Port
|
CAN/RS485
|
||||||||||
|
Working Temperature Range
|
Charge:0-45C/Discharge:-10-50℃
|
||||||||||
|
Waterproof
|
IP55
|
||||||||||
|
Installation Method
|
Floor-standing
|
||||||||||
|
Cycle Life
|
6000 times
|
||||||||||
|
Peak Charge/Discharge Current
|
50A
|
||||||||||
|
Discharge Rate of Module
|
≤3.5%/month/@25℃
|
||||||||||
|

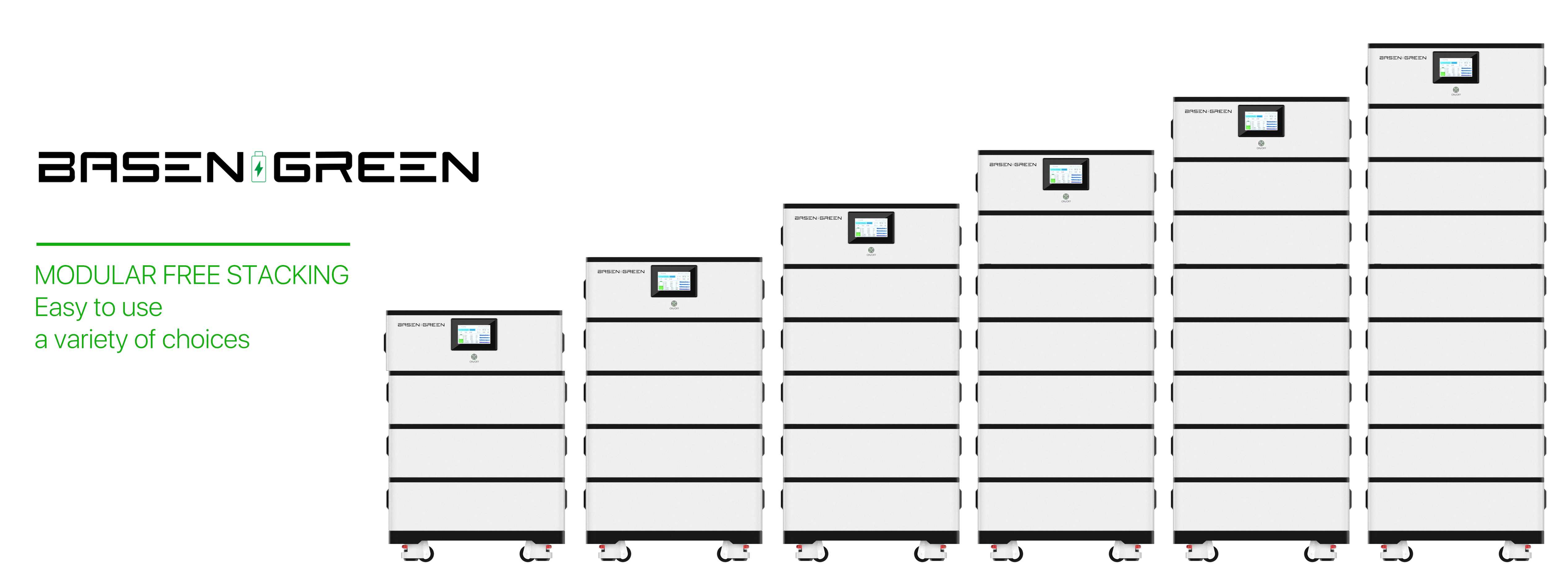

Module Series Connection /Module
|
8S~16S
|
||||||||||
|

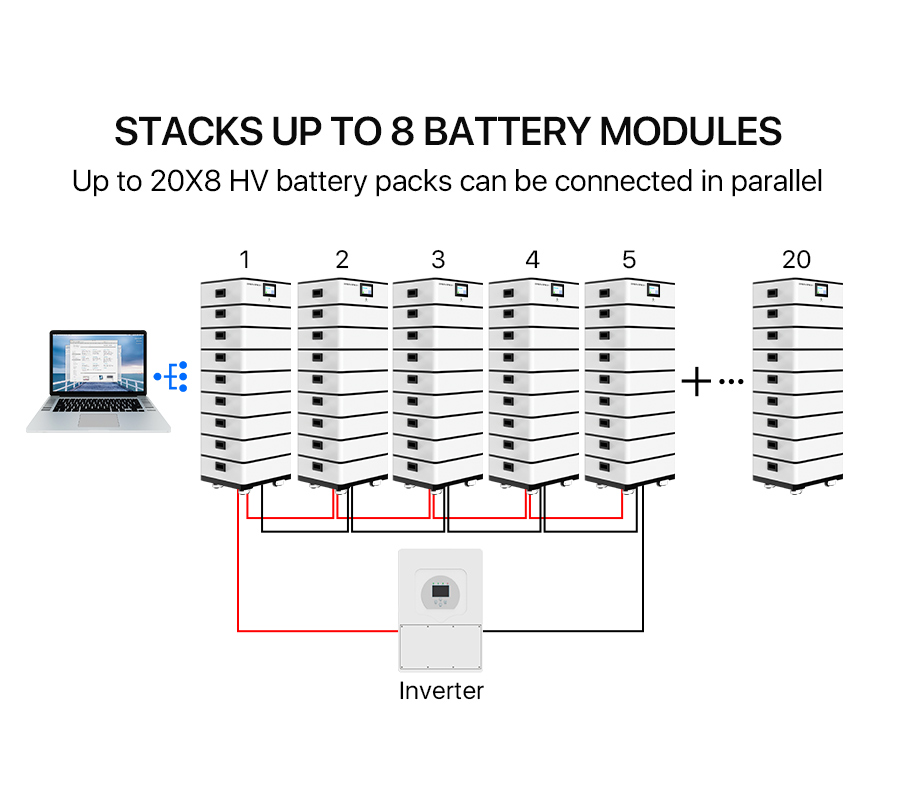

Parallel Connection
|
20 units in parallel
|
||||||||||
|
Support Inverter Brand
|
Victron、Pylon、Deye、SMA、Growatt、Goodwe、MPP、Voltronicpower、Pchne、Megarevo.....
|
||||||||||
|
Warranty
|
10 years
|
||||||||||
|

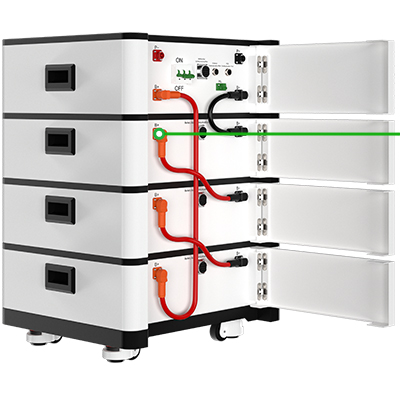

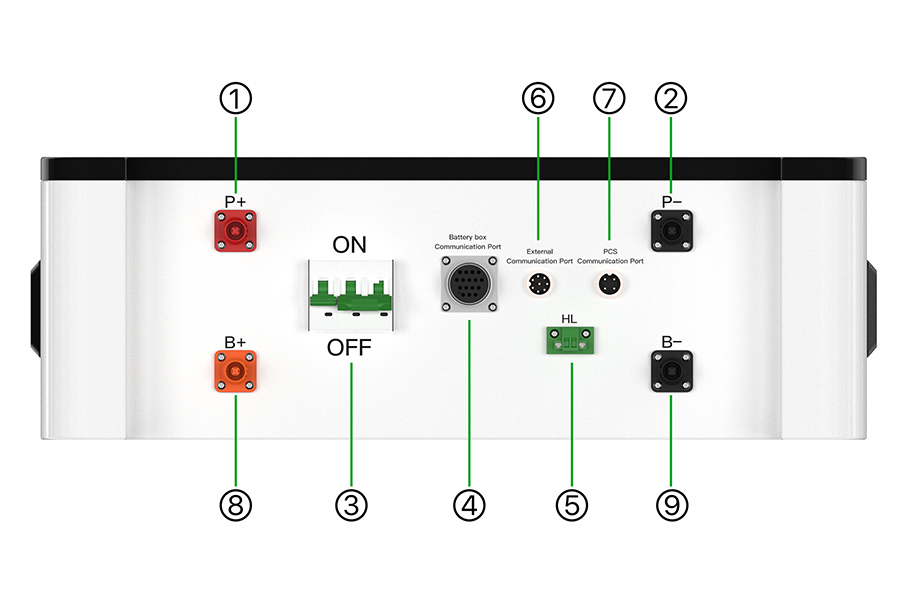

①:P+ battery output positive pole
|
⑥: External communication port (parallel cluster / debugging communication)
|
|
②:P- battery output negative pole
|
⑦: PCS communication port (communication with PCS)
|
|
③: Circuit breaker switch
|
⑦: PCS communication port (communication with PCS)
|
|
④: Battery box communication port
|
⑧:B+ battery input positive pole
|
|
⑤: CAN communication port (communication with PCS)
|
⑨:B- battery output negative pole
|
|
Time
|
Delivery From Local Warehouse
|
Transportation from China
|
||
|
ETD
|
1-3 working days
|
3-7 working days
|
||
|
ETA
|
5-7 working days
|
35-40 working days
|
||
|
Transportation
|
Express
|
By rail/sea +DDP/GIS/UPS(DDP TAX FREE)
|
||
|
DDP : The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything.Any qustions please feel free to contact us！
|
||||
