65Mn (0.8*19) performance parameters
Steel strip raw material tensile strength (1100~1300Mpa); yield strength ≥800Mpa;
Lap force ≥11KN;
The overall bearing capacity of the entire steel ring is ≥25KN;
Insulation layer withstand voltage: DC/3500V 30S Meets leakage current ≤ 2mA, test standard IEC60243-1-(2)-2013; 1000V/DC 30S insulation resistance > 500M ohm;
Steel strip surface treatment: electroplating color zinc (neutral salt spray test 96H, 192H no red rust);
The product is RoHS compliant.

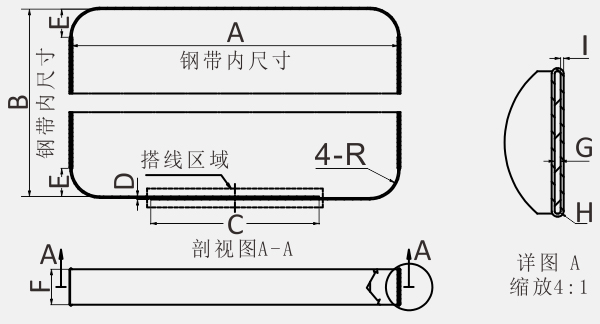

Unit: mm
