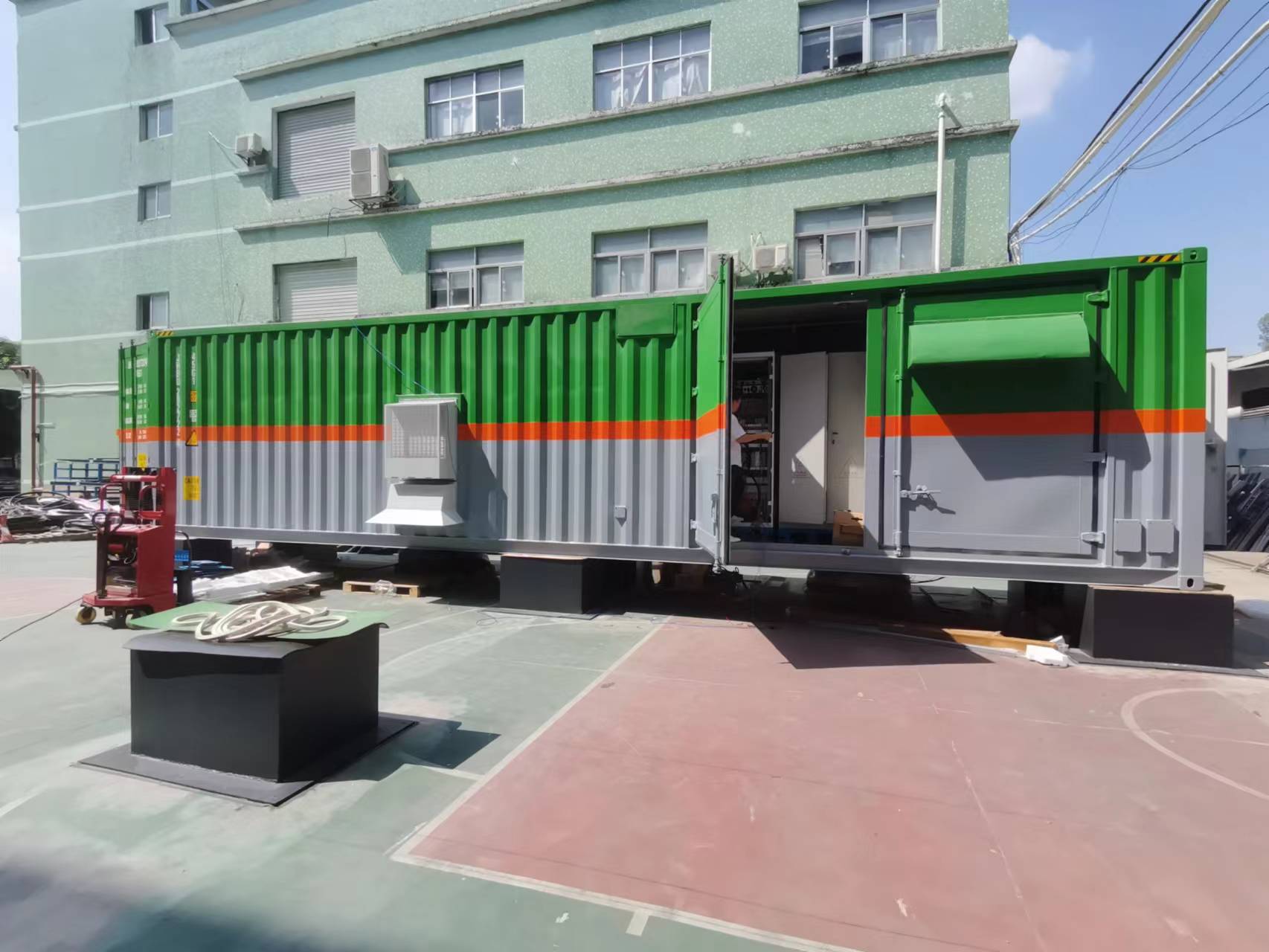

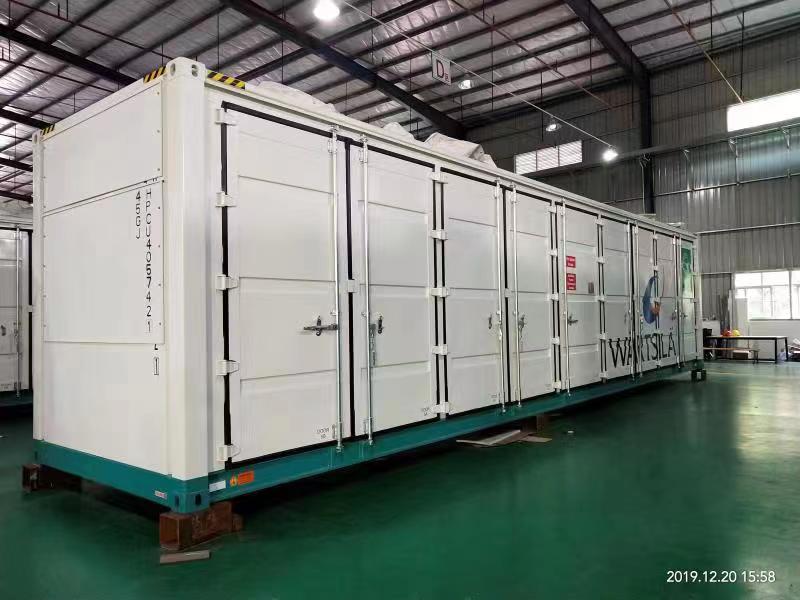

The whole energy storage system is 500KW/1MWh,the actual battery energy of a single container energy storage system is 500KW/1.105MWh. The system have 6 battery strings(including BMS),1 set 500KW PCS, 1 set EMS ,air conditioner , fire extinguisher system and other accessory equipments.The energy storage system topology is shown in Figure 1-1. Figure 1-2 shows the internal layout of the containerized ESS, The 40HQ container size is 12192*2438*2896 (mm).
" width="19" />
Energy Storage System main parts introduction
The energy storage system consists of 6 battery strings with a total system energy of 1.105MWh.The detailed performance of the battery box, battery string and battery system is shown in Table 2-1.
Shenzhen Apollo Energy holdings ltd was found at 2007, with a team of professional engineers that based on appliances system and new energy system technology plan design and development .
Our engineer team involved in ID , MD , Electronic Hardware and Software
Control , especially in the field of Energy torage and Power Supply , we had accumulated with profound technology experience and patents , can provide customers with one – stop service from ID to finished products .
Through years well accumulated of experience , we successively
launched a series of self – designed portable power station system , and then cooperate with a number of well – known domestic and foreign brands successfuly . At the same time , we registered Apollo as our B2B export brand . With our best confidence in our products , Apollo now have set up our own export sales engineer team . We will able to provide customers with great service on ODM / OEM and tech – support
