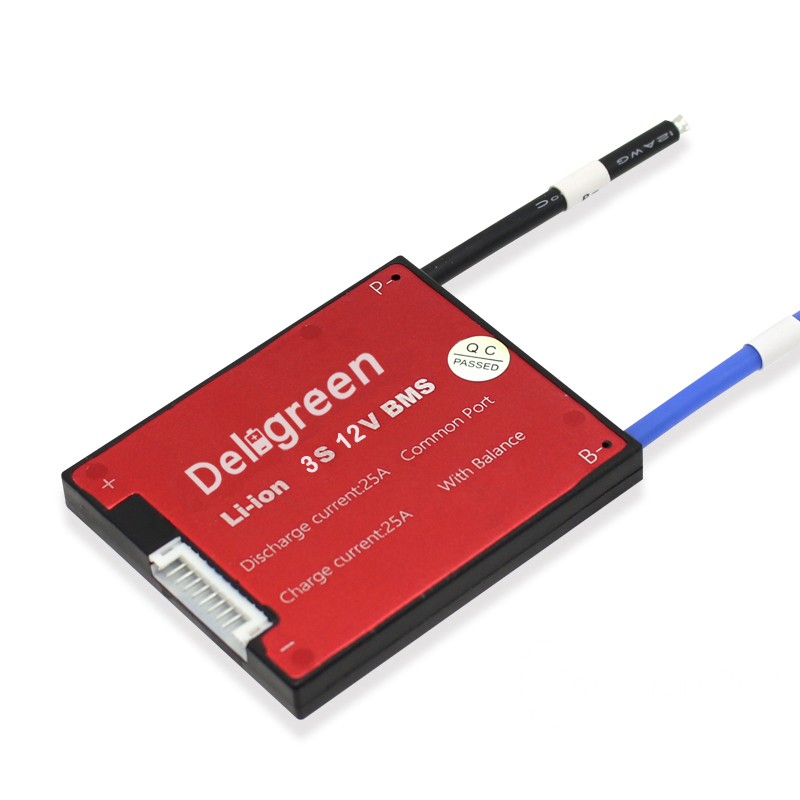

1. Model: DLG3S 10A-60A (for 3.7V Rated Li-ion battery)
Common Version : charge/discharge share the same one
Separate Version : charge/discharge port are different
We can customize any PCB from 2S to 24S lithium batteries with different current.
◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
◆Strong load ability, constant discharge current 10A/25/35A/45A/60A, use high voltage resistance, low inner

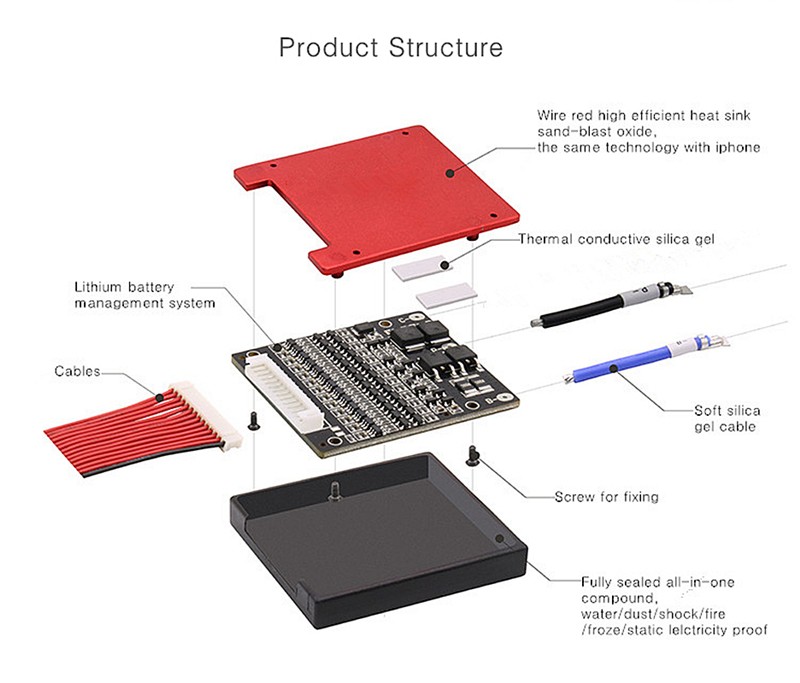

resistance power Mosfet. The heat sink will greatly help cooling.
◆IC itself has power balancing function. The circuit is simple and reliable.

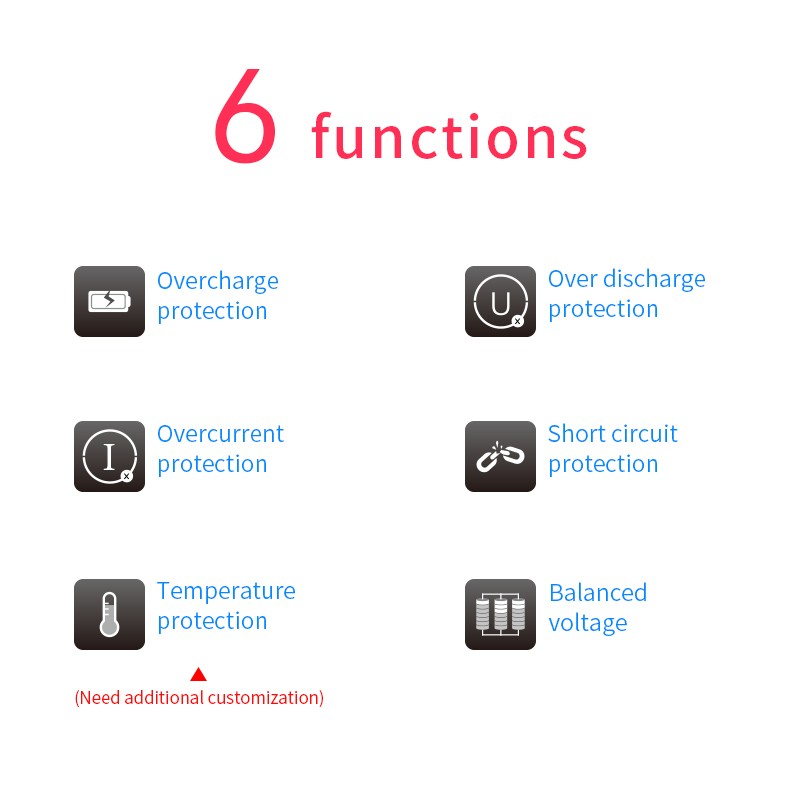

◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection
function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
◆Extreme low power consumption. The consumption of the whole device is less than 50uA.
◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
