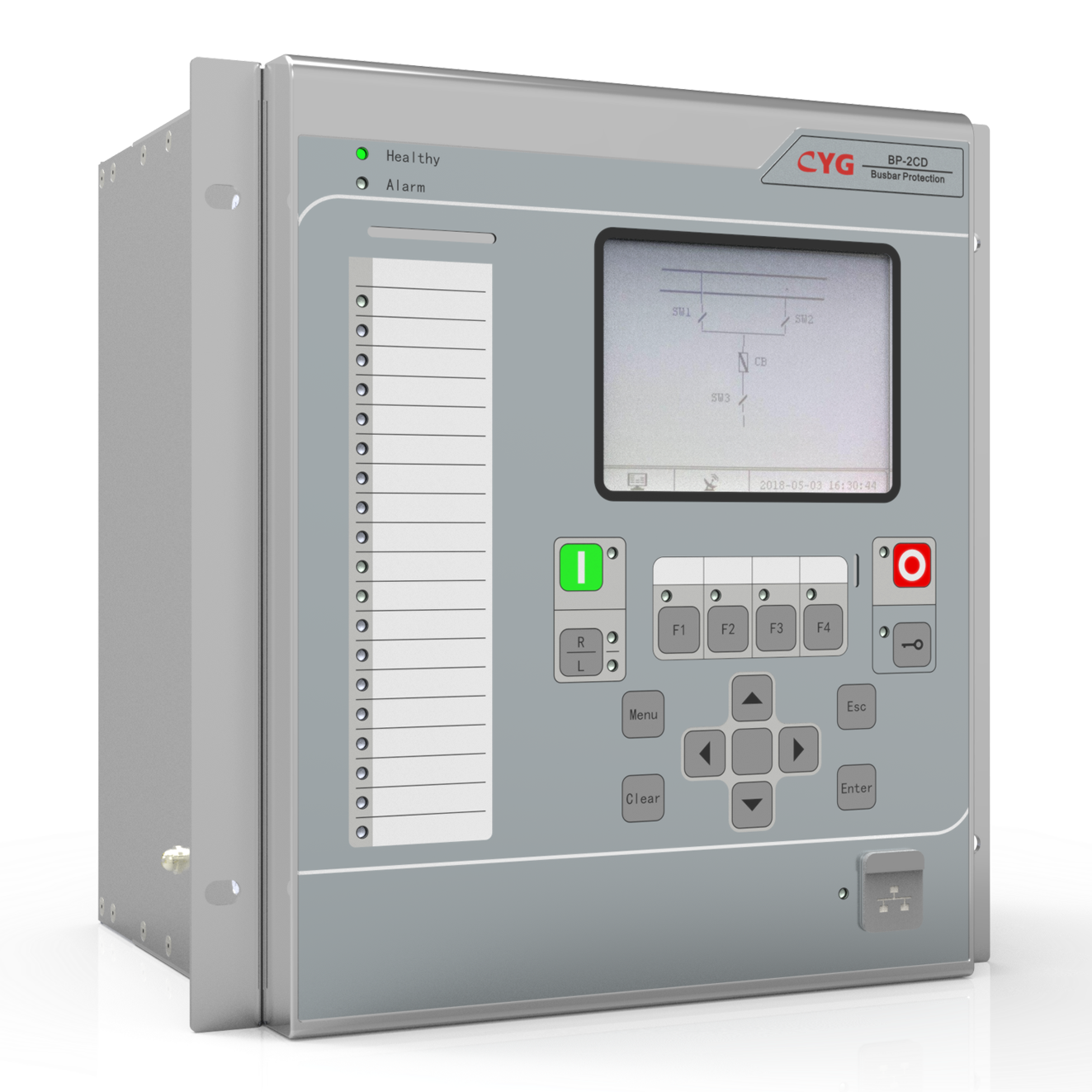

The BP-2CD is a distributed busbar differential protection intended for protecting and monitoring various busbars of various voltage level ranging from 1000kV to 110kV BP-2CD can detect and clear all types of internal falults BP-2CD provides fast and selective protection monitoring and control for single busbar single busbar with single bus coupler double busbar double busbar with up to 4 bus couplers 3/2 breaker busbar etc The relay can operate correctly over a wide frequency range in order to accommodate power system frequency variations during disturbances This relay can sample the analog values from the traditional instrument transformers or receive the sampled values from the electronic current and voltage transformers via a merging unit The binary inputs and outputs of this relay can be configured according to the demands of a practical engineering through the PRS IED Studio configuration tool auxiliary software which can meet some special requirements of protection and control functions This relay can fully support the IEC61850 communication protocol and GOOSE function and can completely meet the demands of a modern digitalized substation
01
This device is based on a 32-bit high performance dual-core processor internal high speed bus and intelligent I/O ports and the hardware is in modularized design and can be configured flexibly featuring interchangeability and easy extension and maintenance
02
Modularized hardware design makes this relay be easily upgraded or repaired by a qualified service person Various function optional modules can satisfy various situations according to the different requirements of the users
03
The adoption of 16-bit A/D converter and the dual-channel sampling technology can ensure the accuracy and reliability of protection sampling and the correctness of protection operation It also provides dedicated current transformers for metering and ensures the high accuracy of telemetering with 48-point high speed sampling rate per cycle
04
This device can sample the analog values from the traditional instrument transformers or receive the sampled values from the electronic transformers It can support the protocol IEC60044-8 IEC61850-9-2 and GOOSE
05
Various algorithms for protection and measurement have been completed in this device for the feature of electronic transformer sampling such as the error prevention method of multi-algorithms data anomaly for the digital channels to realize high accuracy and reliability under various conditions of network faults or communication interruption
06
This device has powerful GOOSE functions and the connection and cooperation between some devices can be realized without using electrical cables to facilitate the realization of such functions as simple bus differential protection overload interlock shedding function and backup automatic transfer function etc
07
This device has fully realized the technology to integrate six functions into one device protection measurement control remote signaling merging unit function and remote module functions to improve the reliability
08
Various methods of GPS time synchronization are supported in this relay including SNTP pulse per second PPS and IRIG-B synchronization
09
The protection modules are completely separated from other modules and are independent in both hardware and software The protection functions do not depend on the communication network so the failure of communication network will not affect the normal operation of the protection functions
010
Mature protection configuration fast speed and high security performance can meet the practical requirements Each protective element is independent so it is very convenient for whether adopting the selected protective element
011
This device constantly measures and calculates a large amount of analog quantities such as phase voltage phase-to-phase voltage neutral voltage phase current neutral current active power reactive power power factor and frequency etc
012
The human machine interface HMI with a small control module a 240x128-dot LCD a 9-key keypad and 19 LED indicators on the front panel is very friendly and convenient to the user
013
This device can communicate with a SAS or RTU via different communication intermediates thernet network RS-485 serial ports The communication protocol of this device is optional IEC61850 IEC60870-5-103 DNP3 0 or ModBus
014
This device can detect the tripping circuit of the circuit breaker and monitor the operation close or trip time of a circuit breaker by checking the auxiliary contacts of the circuit breaker
015
Complete event recording function is provided 512 latest protection operation reports 512 latest supervision records 128 latest control operation records 128 latest user operation records and 2000latest records of time tagged sequence of event SOE can be recorded
016
Powerful fault and disturbance recording function is supported 64 latest fault or disturbance waves the duration of a wave recording is configurable
