| NO. | Item | Specification | Remark |
| 1 | Size | 1028mm*711mm*741mm | / |
| 2 | Combination mode | 1P25S | / |
| 3 | Rated capacity | 270Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 80V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈400kg | / |
| 7 | Total power of module | 21.6kwh | / |
| 8 | Maximum charging voltage | 90V | / |
| 9 | Maximum continuous charging current | 1C | 25±5℃ |
| 10 | Discharge cut-off voltage | 67.5V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life |
≥4000 times 80%Capacity retention |
1C/1C 25℃ |

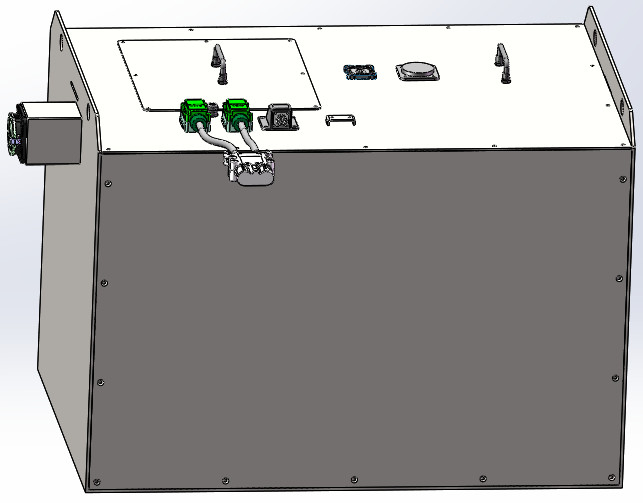

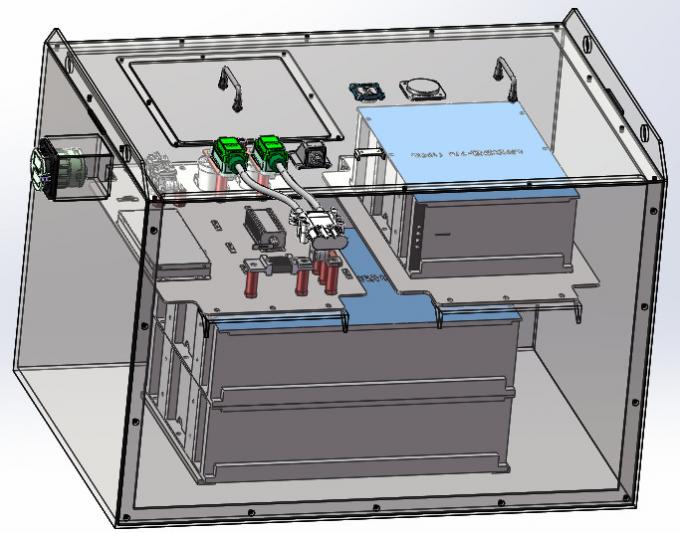

1. This product is the standard module of EIKTO lithium iron phosphate battery, which is made of 270Ah lithium iron phosphate batteries in series and parallel.
2. Laser welding is performed between the batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;
2. Controllable process: no over welding and false welding, ensuring 100% battery damage;
3. Safety design: the lithium iron phosphate material system with high safety is adopted, and the charging is fast and safe;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
6. With remote monitoring, real-time view of battery information, remote battery upgrade
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
