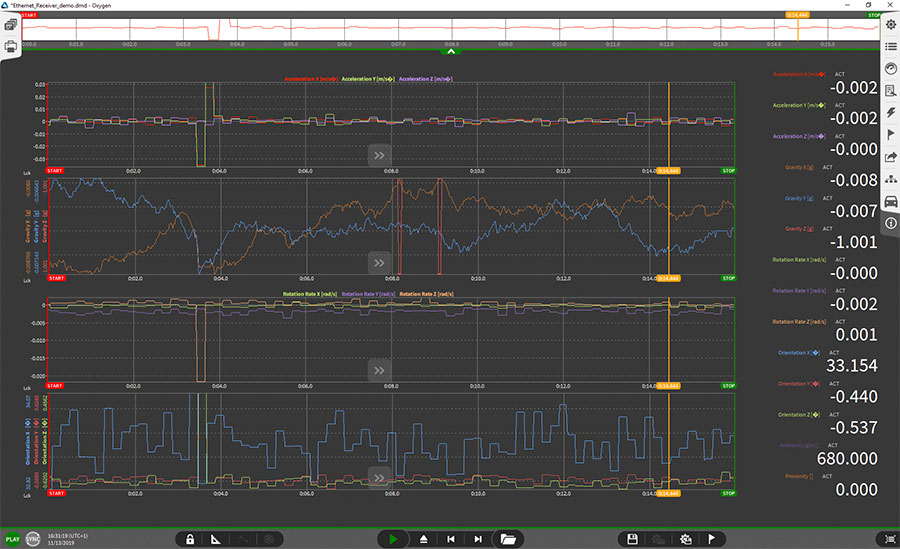

Do you have UDP data sources that you would like to use in OXYGEN? The Ethernet receiver is your solution. It decodes UDP packets into OXYGEN channels, allowing visualization and recording alongside your other data.
It supports multiple receiver instances, uses a simple XML decoding structure for packet descriptions, and offers time synchronization with timestamp decoding.

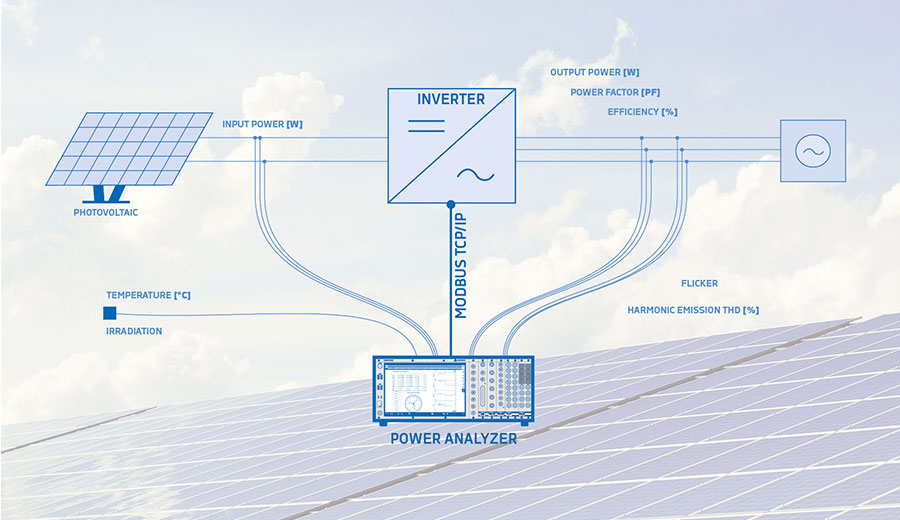

Read and store data from MODBUS TCP clients. The MODBUS TCP plugin allows you to monitor and analyze data from devices under test (DUT) to compare internal states with measured values, making OXYGEN a powerful monitoring tool for MODBUS. Ideal for applications like solar inverters, power converters, or energy monitors.

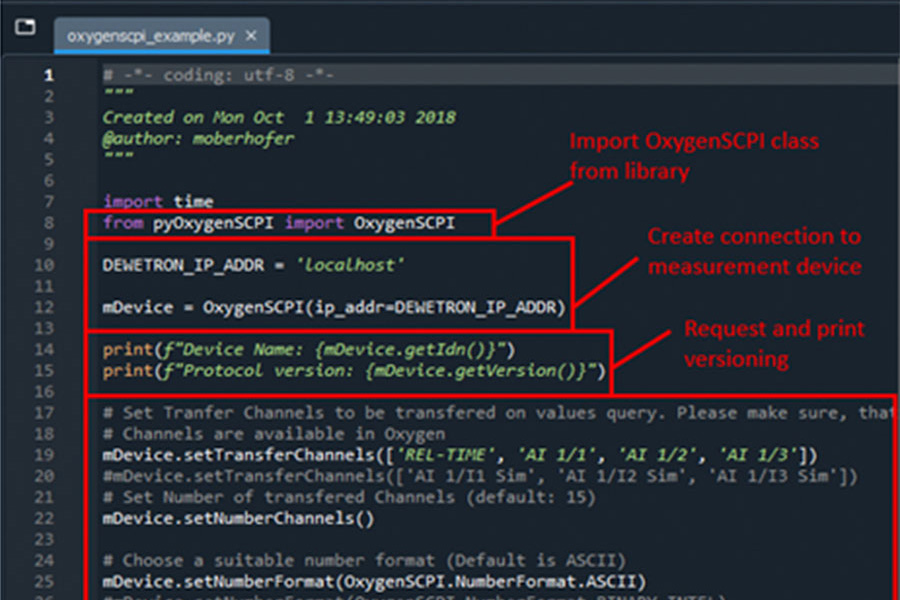

OXYGEN’s SCPI interface is the powerful tool for data transfer and remote control. The following data transfer possibilities are available when using SCPI (for remote control see below):
The Ethernet Sender allows you to easily transmit measurement data via Ethernet UDP to one or multiple data sinks. An XML file for decoding the data on the receiver side is automatically generated and can be seamlessly imported by OXYGEN’s Ethernet receiver. This powerful combination is perfect for efficiently distributing data to multiple clients for monitoring purposes.

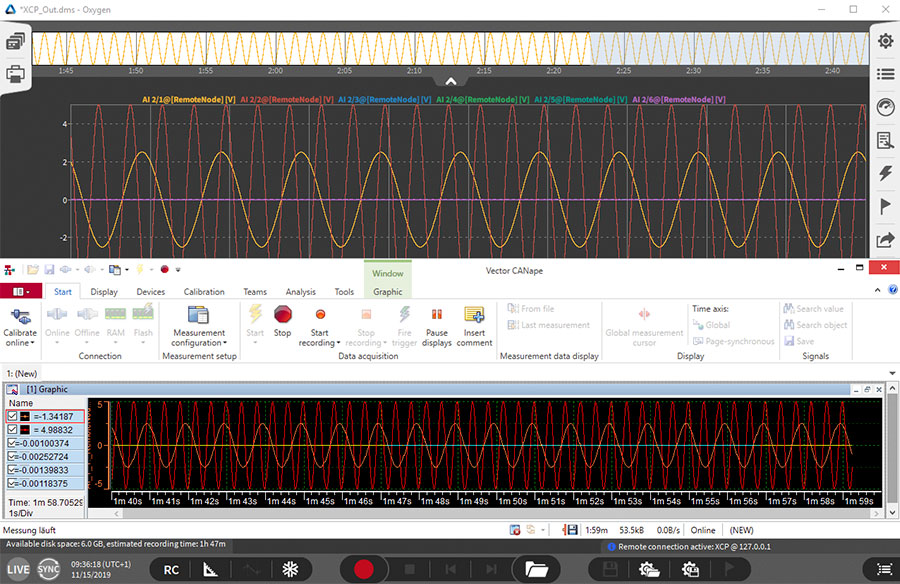

The CAN-OUT is not fast enough for your automotive testbed? Use XCP over Ethernet instead. With this option, the OXYGEN software acts as XCP-slave and serves measurement data to your testbed:

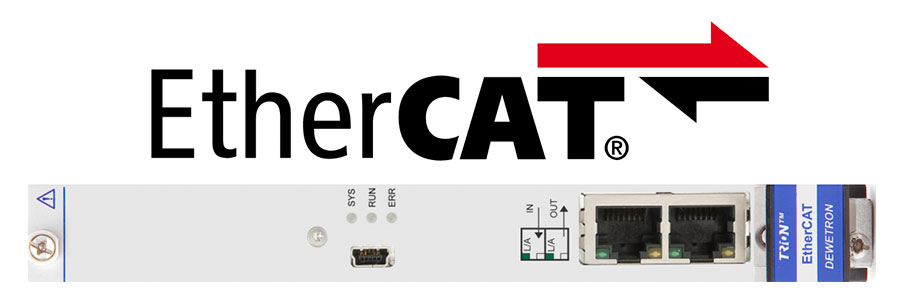

Does your test bed support only EtherCAT for data and control? No problem! Our TRION-EtherCAT hardware meets your needs:

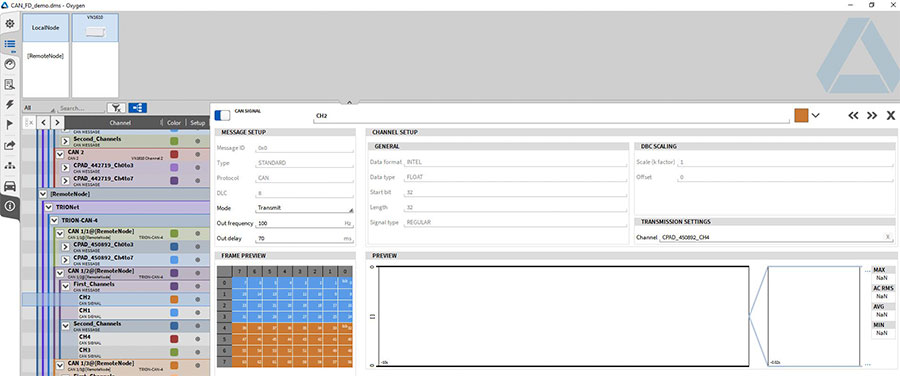

If you need acquired data on the CAN bus, the CAN-transmit function makes it easy to serve almost any OXYGEN channel cyclically on the CAN bus.

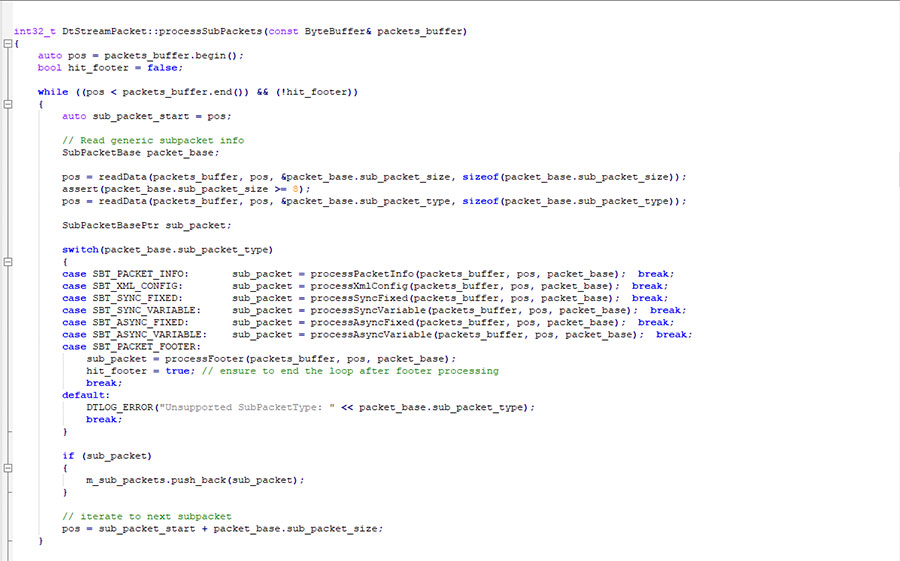

With the data stream feature, you can transfer and process data in your own application. Stream raw data and calculated data, like power or statistics, via TCP/IP at high speed to one or more applications.
