Summary
The DBW SBW Single Three Phase Super Power Compensated Voltage Regulator is a high-efficiency, full-automatic voltage stabilizer designed for industrial power systems. Featuring over/under-voltage and overcurrent protection, this regulator ensures reliable operation with minimal waveform distortion. It offers high precision, wide input voltage range, and energy-saving performance, making it ideal for applications in telecommunications, healthcare, education, and manufacturing. With a compact design, large capacity, and easy installation, this voltage regulator is an essential solution for maintaining stable power in critical environments.More
Specifications
Input voltage:
Single-Phases:175-265V Three phases four-line 175V-265V(phases voltage) 304V-456V(Line voltage) 154V-286V(phases voltage) 270V-490V(Line voltage)
Output voltage:
Single Phase:220V
Three phases:380V
Efficiency:
≥95%(Power&gt
50KVA)
  • DBW SBW Single Three Phase Super Power Compensated Voltage Regulator High Efficiency Voltage Stabilizer for Industrial Power Systems
  • DBW SBW Single Three Phase Super Power Compensated Voltage Regulator High Efficiency Voltage Stabilizer for Industrial Power Systems
Voltage Regulator:DBW SBW Single Three Phase Supper Power Compensated Voltage Regulator [Hits:379]

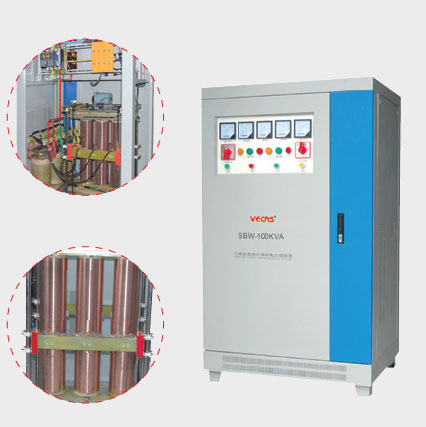

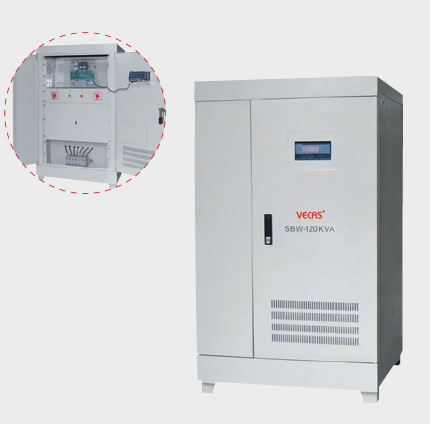

DBW SBW Single Three Phase Supper Power Compensated Voltage Regulator

General
DBW/SBW Series full automatic compensated voltage stabilizers is an energysaving new product developed by our company absorbing the advanced technology of international same product.with the functions of over/under-voltage protection, delay and error protection. It has advantages of small volume, light weight, large capacity, high efficiency, wide range, high precision, strong protection. without wave-form distortion, reliable operation and easy installation, etc.
Application
Widely used in post and telecommunications, department stores,elevators, hospitals.schools, printing, securities and other occasions where all needs normal voltage to ensure,such as such as workshop mines medium enterprises. sone of the important eequipment and computer power and support.
Technology Parameter
Input voltage
Single-Phases:175-265V Three phases four-line
175V-265V(phases voltage) 304V-456V(Line voltage)
154V-286V(phases voltage) 270V-490V(Line voltage)

Output voltage
Single Phase:220V;Three phases:380V
Output deviance
1-5%(Adjustable)
Frequency
50Hz/60Hz
Efficiency
≥95%(Power>50KVA)
Response time
≤1.5S
Ambient temperature
-10℃~+40℃
Insulation resistance
≥5M Ω
Electrical intensity
Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1min
Overload
Double rated current, one min
Wave form distortion
Non-lack fidelity wareform
Protect
Overvoltage、overcurrent、feed phases
Speci?cation、Dimensions and Weight
Spec Model Unit(pcs) Package size(mm) Weight(Kg)
DBW-20K
1
700×500×1350
283
DBW-30K
1
700×500×1350
310
DBW-40K
1
700×500×1350
330
DBW-50K
1
800×600×1500
360
DBW-60K
1
800×600×1500
380
DBW-70K
1
800×600×1500
400
DBW-80K
1
800×600×1500
430
DBW-100K
1
900×700×1700
480
DBW-120K
1
900×700×1700
510
DBW-150K
1
900×700×1700
530
DBW-180K
1
1000×800×1900
570
DBW-200K
1
1000×800×1900
600
Spec Model Unit(pcs) Package size(mm) Weight(Kg)
SBW-150K
1
1000×720×1700
550
SBW-180K
11000×720×1700
570
SBW-200K
11000×720×2000
630
SBW-225K
11100×800×1800
660
SBW-250K
11100×800×2000
700
SBW-300K
11100×800×2100
740
SBW-320K
11100×800×2100
760
SBW-400K
11000×800×2100/2柜
1100
SBW-500K
11000×800×2100/2柜
1500
SBW-600K
11000×800×2100/2柜
2200
SBW-800K
1850×1000×2200/3柜
2800
SBW-1000K
1850×1000×2200/3柜
3500
SBW-1200K
1850×1000×2200/3柜
4100
SBW-1600K
1110×1100×2200/4柜
5560
SBW-2000K
1110×1100×2200/4柜
7100
