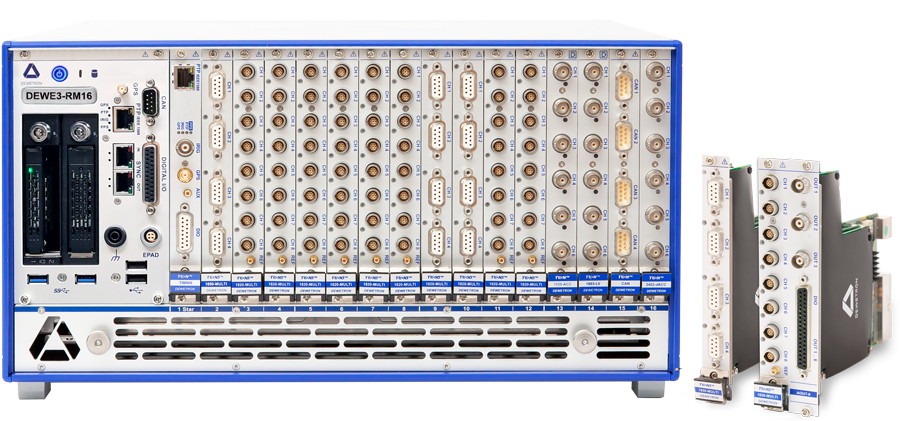

DEWE3-RMx Modular Rack-Mount DAQ System for High-Channel Data Acquisition and Power Analysis Applications

The rack-mount data acquisition system with high-channel-count

The DEWE3-RM series is the ideal rack-mountable DAQ system. Profit from the easy integration with a 19” mounting kit, a fan slot at the front for easy maintaining and the silent cooling. The system is fully modular and can be equipped with either 4, 8, 12 or 16 user-exchangeable TRION(3) modules.

• Ideal for rack-mount use
• Up to 16 TRION(3) module slots
• Integrated PC
• Up to 128 analog inputs
• Up to 10 MS/s sample rate
• Sync, CAN, DIOs, counter
• Can be a power analyzer
• Typ. 1 GB/s gapless storing rate
• 10 Gbit/s network option

user-exchangeable TRION(3) modules

All DEWE3-RM support all high-speed TRION(3) modules for almost every sensor and signal input like voltage, current, power, vibration (IEPE), bridges (strain gauges), potentiometers, RTD, CAN, counter inputs, thermocouples, and many more. Use external time sources for synchronization like GPS, PTP or IRIG. The 4 TRION(3) modules can be easily exchanged by anybody.

OXYGEN Measurement Software

Use the full potential of our rack-mount mainframe systems with our easy-to-use OXYGEN measurement software. It supports you with a huge amount of software features but still is very intuitive to use. One of the core features is the analysis and post-processing of the recorded data.

• Navigate intuitively and quickly through your data
• Create easily new visualizations, measurement screens or reporting pages
• Refine your measurement results with our math and calculation features incl. FFT
• Complete your workflow by exporting your data
• Use all functions on your PC license-free
