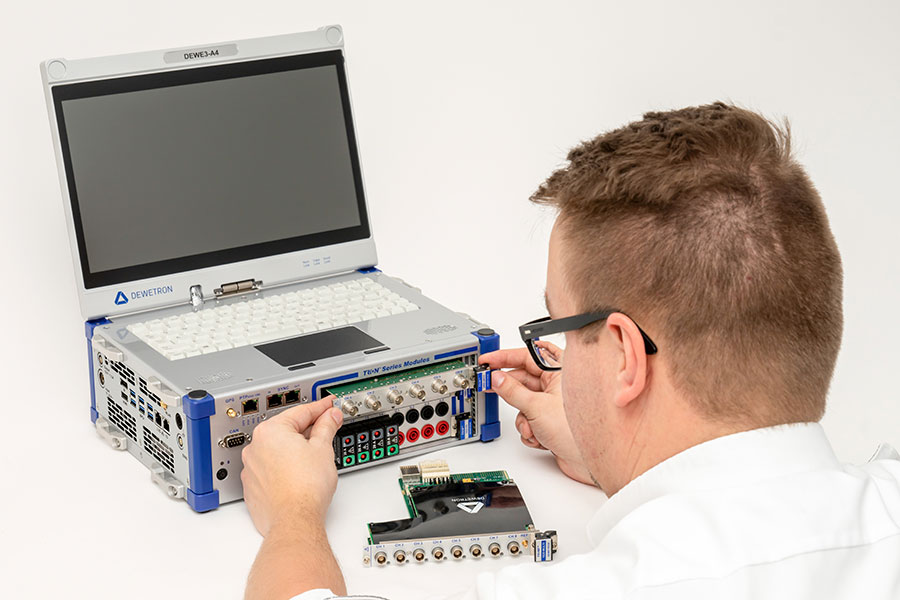

The DEWE3-A4 supports all high-speed TRION(3) modules for almost every sensor and signal input such as voltage, current, power, vibration (IEPE), bridge (strain gauges), potentiometers, RTD, CAN, counter inputs, thermocouples, and many more. Use external time sources for synchronization like GPS, PTP or IRIG. The 4 TRION(3) modules can be easily exchanged by anybody.
Use the full potential of the DEWE3-A4 with our easy-to-use OXYGEN measurement software. It supports you with a huge amount of software features but still is very intuitive to use.
One of the core features of OXYGEN is powerful data recording. All the acquired data can be stored in one file with a simple touch on the record button. The DEWE3-A4 supports storing rates up to 400 MB/s.
Review your data during recording with DejaView.
Use the file split option and generate a new file after an absolute amount of time or an event occurrence.
Use the channel-wise sample rate selection.
Open on any PC with the installed OXYGEN software (for FREE).
Get new software features with every new release.

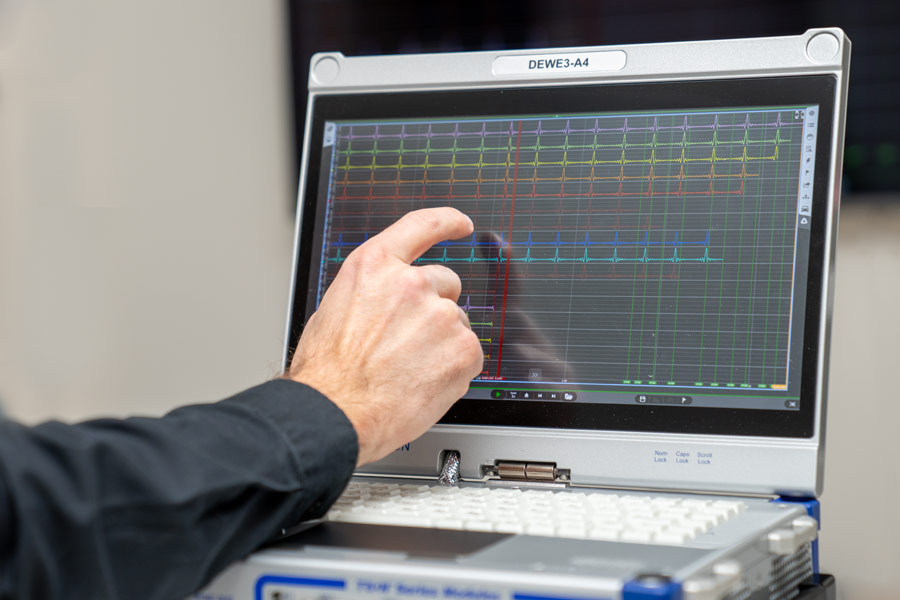

The DEWE3-A4 is one of our all-in-one-systems which means that it comes with all you need to start your data acquisition and analysis right away. It is equipped with a bright 13.3” wide-screen multi-touch Full-HD display to control the system. You can simply use your fingers to work with the touchscreen, like you would on a smartphone. Additionally, the DAQ system is equipped with a keyboard and touchpad.
Nearly every DEWETRON DAQ system can be turned into a power analyzer by changing the TRION(3) modules. Simply equip the DEWE3-A4 chassis with our TRION(3) power modules. Turn the DEWE3-A4 into a highly accurate and portable power analyzer with a measurement error of only 0.03 %.
