Technical Data

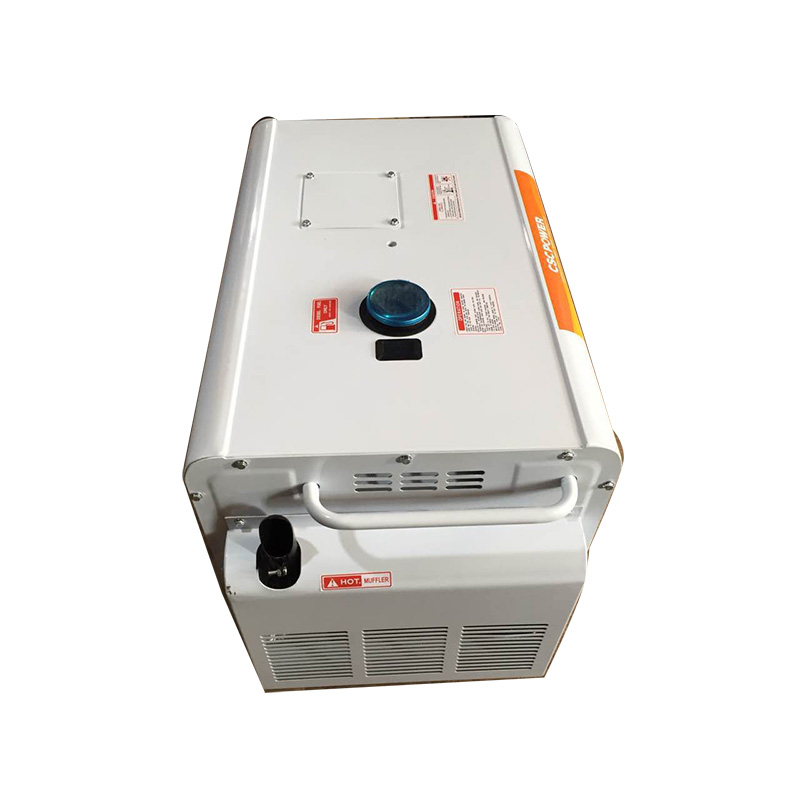

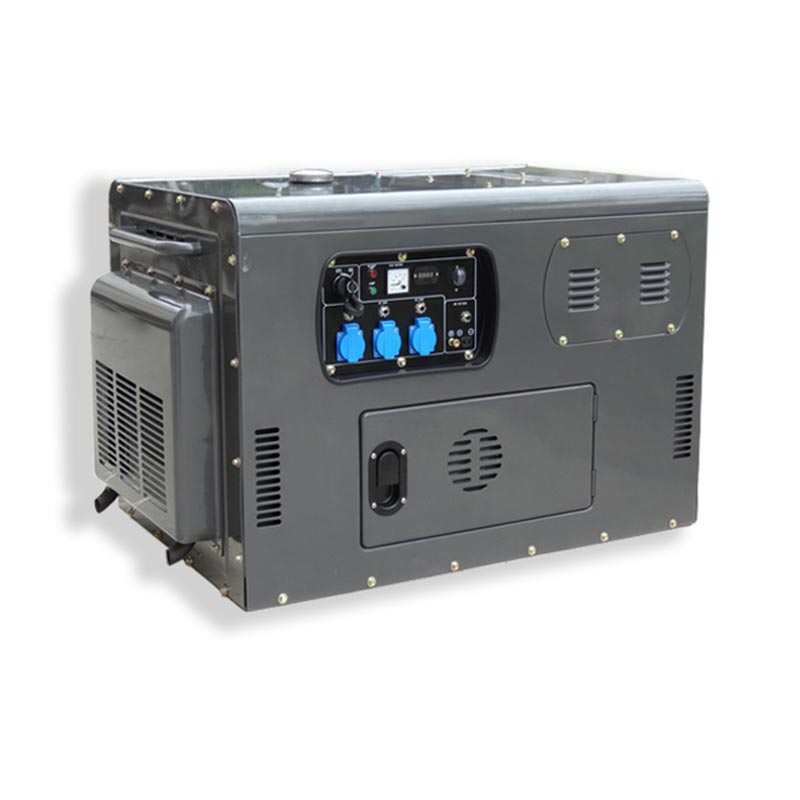

| Product name: Diesel generator set |
Model: CSC11 |
Spec: 10KVA |
| Pro.ID: P00131 |
Voltage： 3P 380v 50hz |
Type： Silent |
Technical data table:
| NO. |
Technical data |
Parameter data |
Remarks |
| 1 |
Standby Power |
11KVA |
|
| 2 |
Prime Power |
10KVA |
|
| 3 |
Standby Power |
9KW |
|
| 4 |
Prime Power |
8KW |
|
| 5 |
Dimension(LxWxH mm |
930*530*690 |
|
| 6 |
Weight |
150kg |
|
Product configuration table:
| NO. |
Part name |
Brand |
Model |
Remarks |
| 1 |
Engine model |
Yucai |
195F |
|
| 2 |
Alternator model |
CSCPOWER |
CSC8 |
|
| 3 |
Controller |
CSCPOWER |
|
|
| 4 |
Fuel tank |
CSCPOWER |
|
|
| 5 |
A high acoustic canopy |
CSCPOWER |
|
|
| 6 |
ATS（option） |
CSCPOWER |
|
|
