Technical Data

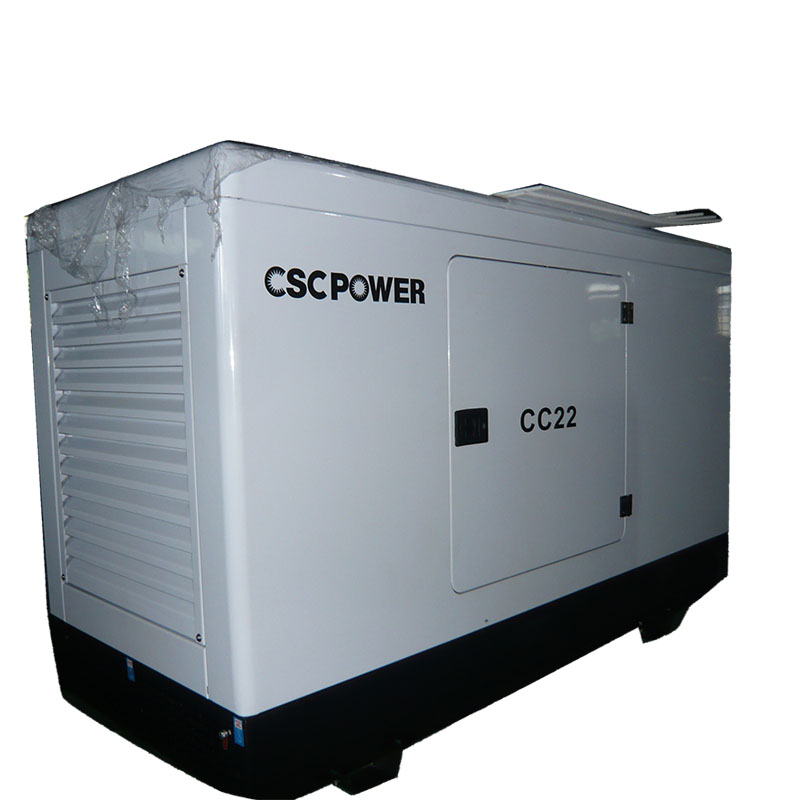

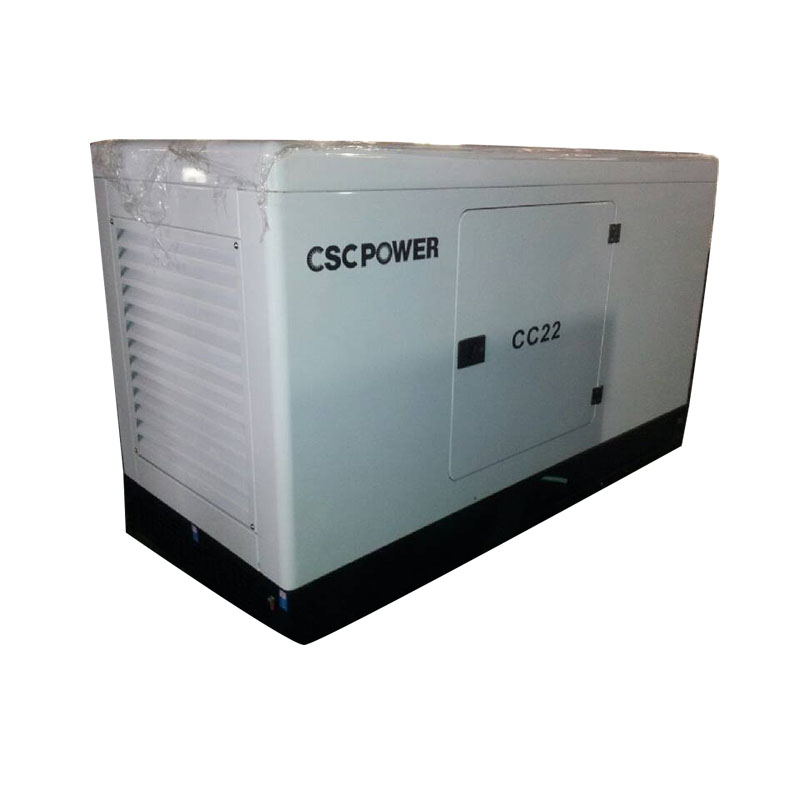

| Product name: Diesel generator set | Model: CC22S | Spec: 22KVA | ||||||
| Pro.ID: P02179 | Voltage： 3P 380v 50hz | Type： Silent type | ||||||
Technical data table:
| NO. | Technical data | Parameter data | Remarks | |||||
| 1 | Standby Power | 22KVA | ||||||
| 2 | Prime Power | 20KVA | ||||||
| 3 | Standby Power | 18KW | ||||||
| 4 | Prime Power | 16KW | ||||||
| 5 | Power factor | 0.8 | ||||||
| 6 | Rated power | 34.2A | ||||||
| 7 | Rated speed | 1500r/min | ||||||
| 8 | Power supply mode | 3phase, 4wires | ||||||
| 9 | Cooling type | Water cooling | ||||||
| 10 | Weight | 900kg | ||||||
| 11 | Dimension(L*W*H) | 2300x980x1250mm | ||||||
| 12 | Start mode | Electrical start | ||||||
| 13 | Governor | Mechanical | ||||||
| 14 | Cylinder number | 4 cylinders（4B3.9-G1） | ||||||
| 15 | Cooling system | Own colsed cycle water cooling fan with fan guard |
||||||
| 16 | Fuel room | Fuel injection | ||||||
| 17 | Effluent standard | According to the national standards GB2820-1997 |
||||||
| 18 | Excitation mode | Brushless self-excitation | ||||||
| 19 | Pressure regulating mode | AVR automatic pressure regulation |
||||||
| 20 | Bearing | Long life and no need maintainence |
||||||
| 21 | Class of Insulation | H grade | ||||||
| 22 | Protection | IP22 | ||||||
| 23 | Control panel | AMF20/AMF25 | ||||||
| 24 | Starting battery | 12/24V | ||||||
Product configuration table：
| NO. | Part name | Brand | Model | Remarks | ||||
| 1 | Engine model | Cummins | 4B3.9-G1 | |||||
| 2 | Alternator model | Original Stamford | PI 144D | |||||
| 3 | Controller | Smartgen | 420 | |||||
| 4 | Fuel tank | CSCPOWER | 6-8hours | |||||
| 5 | Radiator | mounted on the genset base |
||||||
| 6 | Breaker | MCCB mounted | ||||||
| 7 | Anti-vibration mountings | mounted on the genset base |
||||||
| 8 | Silencers | mounted on the genset base |
||||||
| 9 | A high acoustic canopy | CSCPOWER | ||||||
