Specification

The table above is just one of our product parameters. If you want more information, please get in touch with [email protected]

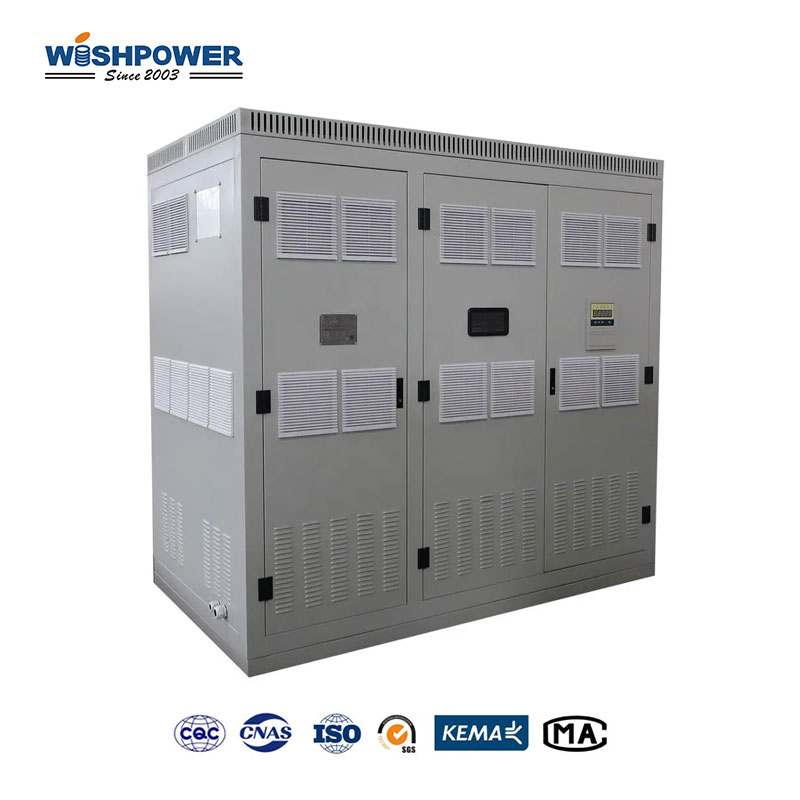

What is the H-Class Vacuum Pressure lmpregnated Dry Type Transformer?

The H-Class Vacuum Pressure Impregnated (VPI) Dry Type Transformer serves as a top-performing power solution made for industrial applications alongside utility operations and commercial installations. The transformer achieves excellent thermal endurance by using H-Class insulation that provides extended service life and improved overload capacity. The transformer ensures continuous operation at a 120% capacity level without forced air cooling so it maintains stable output even during high-demand situations. This transformer maintains its operational quality across the entire range from -50°C to room temperature because it withstands thermal shock well. Vacuum Pressure Impregnation through an advanced VPI method allows insulation materials to penetrate thoroughly to provide complete defense from moisture dust and contaminants. This transformer ensures complete fire safety in critical situations by completely suppressing smoke emissions during exposure to steady temperatures reaching 800°C. The H-Class VPI Dry Type Transformer embraces sustainability through its design approach. After final service use the components consisting of insulation materials alongside copper windings become separate entities for recycling purposes that reduce environmental damage.

Features

1. H-Class Insulation System

The H-Class Vacuum Pressure Impregnated Dry Type Transformer incorporates design elements that enable it to operate under high temperatures and maintain its reliability while extending its thermal lifetime.

2. Vacuum Pressure Impregnation (VPI) Technology

The insulation properties strengthen and resistance to water entry leads to higher product longevity.

3. Flame-retardant and Eco-Friendly

The use of no hazardous materials and the absence of oil together reduce both environmental concerns and the risk of fire.

4. Low Maintenance and High Efficiency

Minimal upkeep requirements with reduced losses for energy-efficient operation.

5. Robust Mechanical Strength

The equipment maintains steady operational stability throughout harsh environments because of its ability to withstand both vibrations as well as mechanical stress.

6. Customizable Design

The equipment offers different voltage and power options which guarantee compatibility with diverse applications.

Advantages

1. Enhanced Safety & Reliability

The construction method of H-Class Vacuum Pressure lmpregnated Dry Type Transformers blocks oil leakages and eliminates fire risks which allows them to operate securely in congested sites and dense zones. The VPI insulation system operates as a reliability tool that safeguards windings from dust moisture and environmental contaminants.

2. Superior Thermal Performance

Utilizing its H-Class insulation system lets the transformer operate at elevated temperatures for prolonged service duration and uninterrupted stable performance when operating continuously.

3. Eco-Friendly & Low Maintenance

This VPI dry-type transformer operates without oil so operators need zero maintenance for the system thereby eliminating each check and the filtration process and oil disposal tasks. The sustainable design features of this product recommend it for green buildings together with energy-efficient applications.

4. Customizable for Various Applications

This transformer exists in various voltage and power capacity versions so users can customize it according to their project needs for data center implementation and other power systems.
