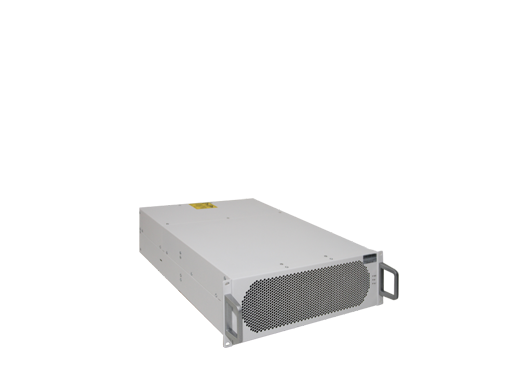

Technical Parameters 01Input voltage380V，-30%~﹢20%Input frequency50Hz，±10%Connection mode3P3W/3P4W (compatible with both)Module capacity50kvar/25A、100kvar/50A、150kvar/75ASingle cabinet capacity50kvar/25A~1000kvar/500AResponse time≤5msPower loss＜3%Compensation functionReactive power, harmonicsCompensation rateNot less than 95%CT scan requirements5A, both grid side and load side are possibleProtectionMultiple protection functions such as overcurrent, overheating, over and under voltage protection.IP gradeModule: IP20, complete machine: IP30; higher IP grades for the complete machine can be customized.Ambient temperatureWorking temperature: -10°C ~ 50°C (derating above 40°C)；Storage temperature: -25°C ~70℃Ambient humidity≤95% (45°C), no condensationAltitude<2000m; for altitudes over 2000 meters, use according to derating requirements specified in GB/T3859.2Incoming modeWhole cabinet: Top entry line/bottom entry line/through-busbar on top of the cabinetOverall dimensions(W×D×H: mm)Module:50kvar/25A：440mm×560mm×88mm（2U）；100kvar/50A：440mm×560mm×145mm（3.3U）；150kvar/75A：440mm×560mm×228mm（5.2U）；Complete machine: 800 x 1000 x 2200; dimensions of the complete machine can be customizedInstallation methodModule: rack-mounted or wall-mounted; complete machine: freestanding installationDisplay screen7-inch touch screenDisplay contentVoltage, load current, compensating current, grid-side current, voltage distortion rate, current distortion rate, etc.Communication interface and communication modeRS485, LAN, WiFi (optional configuration)Communication protocolModbus ProtocolTechnical Parameters 02Input voltage690V，±10%Input frequency50Hz，±5%Connection mode3P3WModule capacity150kvar/75ASingle cabinet capacity150kvar/75A~600kvar/300AResponse time≤10msPower loss＜3%Compensation functionReactive power, harmonicsCompensation rateNot less than 90%CT scan requirements5A, both grid side and load side are possibleProtectionMultiple protection functions such as overcurrent, overheating, over and under voltage protection.IP gradeComplete machine: IP20; higher IP grades for the complete machine can be customized.Ambient temperatureWorking temperature: -10℃~ 50℃ (derating above 40°C);Storage temperature: -25°C ~70℃Ambient humidityWorking temperature: -10℃~ 50℃ (derating above 40°C);Storage temperature: -25°C ~70℃Altitude≤95% (45°C), no condensationIncoming mode<1000m; for altitudes over 1000 meters, use according to derating requirements specified in GB/T3859.2Overall dimensions(W×D×H: mm)Whole cabinet: Top entry line/bottom entry line/through-busbar on top of the cabinetDisplay screenComplete machine: 1400×1000×2200; dimensions of the complete machine can be customizedDisplay content7-inch touch screenCommunication interface and communication modeCurrent, voltage, power, distortion rate, etc.Communication protocolRS485
