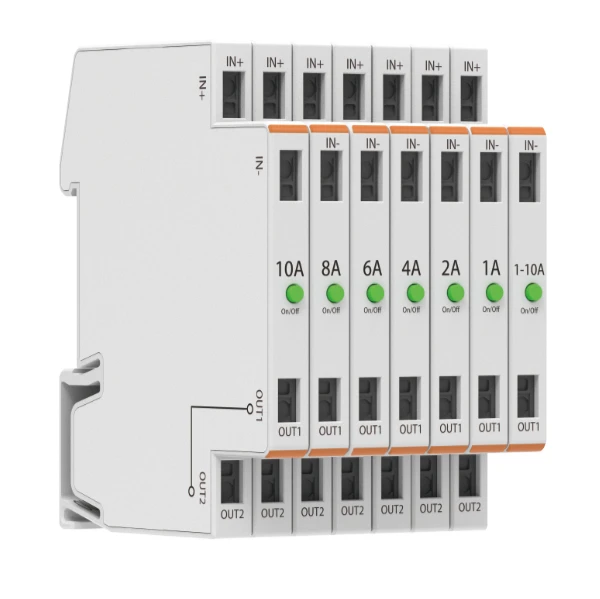

In industrial control applications, circuit breakers are critical components. Electronic components with active protection functions can provide optimal overload and short circuit protection for loads, ensuring that non faulty circuits are not affected and operate normally, thereby ensuring the uninterrupted operation of the production process. Single channel electronic circuit breakers can replace conventional MCBs with smaller volume and more functions.
| Product Type | PECB-1C-24DC/1-10A |
| Channels | 1 |
| Rated voltage | 24VDC |
| Rated current | 1A/2A/4A/6A/8A/10A unadjustable |
| Default value | 10A |
| Effciency | >99% |
| Capacitive loading | >80mF |
| Initialization time | 50ms-2s |
| Cooling time after shutdown | 10s |
| Undervoltage protection | ≤18VDC |
| Overvoltage protection | ≥30VDC |
| 0vercurrent protection | 0.01s (>1.5IN) |
| 2s (1.3IN... 1.5IN) | |
| 30s (1.1IN. ... 1.3lN) | |
| Short circuit tripping ability | 1000A |
| Backup protection fuse | 12A |
| Remote alarm signal | 24VDC/＜50mA |
| Remote reset | None |
| Remote control | None |
| Width x Height x Depth | 8.6mm x 71mm x 90mm |
