Product description

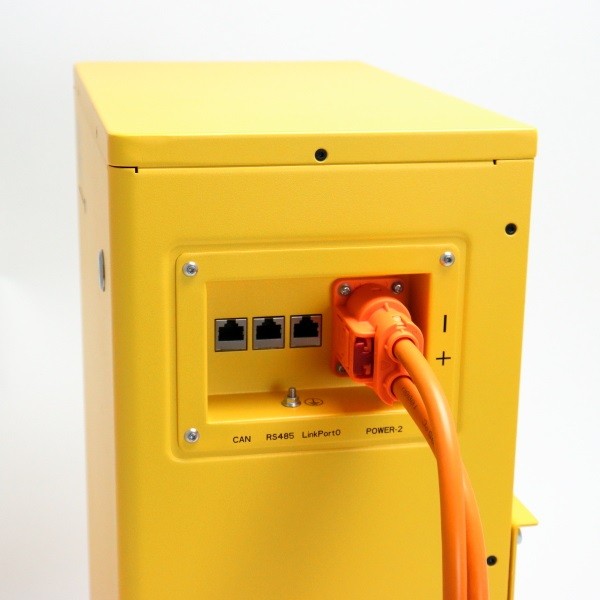

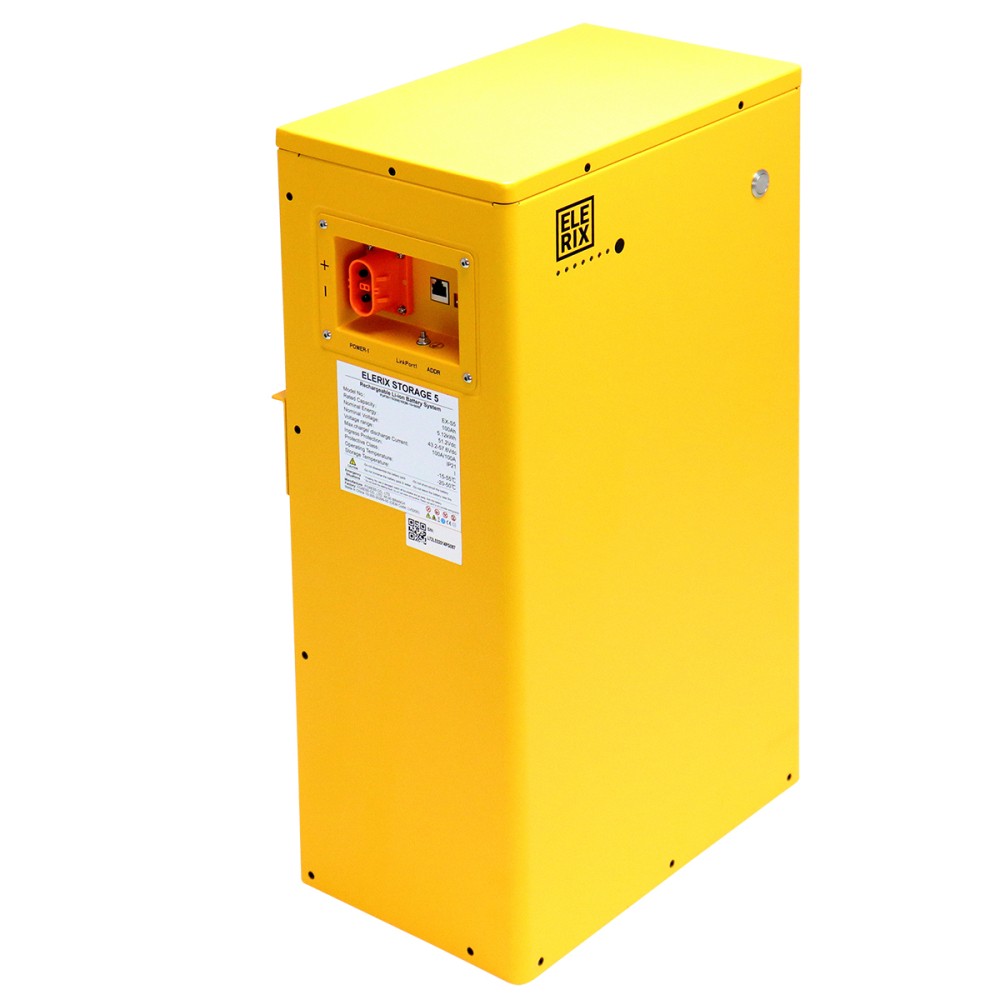

The energy storage is based on LiFePO4 batteries with integrated Battery Management System (BMS) and short-circuit protection. Power output is 48V 100A (5 kW), communication output is CAN and RS485. The outputs are on both sides of the box. The individual 5 kW modules can be scaled with system power and communication connections up to 12 units (master + 11 slaves). This increases the storage capacity up to 60 kWh, but the resulting output power and voltage remain the same - 5 kW /48V at the master output. Parallel interconnection of masters is not supported by the software.
Feature description
The battery is capable of powering a load and/or being charged via either power output (the outputs are connected in parallel internally). Using an integrated BMS, these outputs are regulated by a power semiconductor element. The state of charge is indicated on the LED indicator. The outputs are protected against short circuit by a 200A solid-state fuse (integrated).
Package contents
1 pc ELERIX Energy Storage
1 Set for anchoring to the wall (brackets, dowels, screws)
1 pc Power cable for connecting to the downstream installation (one end system connector for connection to the box, other end 8mm lugs, length 2 m
1 pc Connecting power cable between boxes (system connectors on both sides, length 0.5 m)
1 pc Grounding wire (length 0.5 m, M5 lugs)
1 pc Link communication cable between boxes (LinkPort, length 0.5 m)
