■ Product application
Energy storage cooling system
The engine cooling circulation pump
Motor control cooling cycle of 12M pure electric bus and hybrid bus
■ Product information
Ambient temperature:-40 to +125℃
Medium temperature:-40 to +120℃
Medium:Clear water/antifreeze
Weight:2.4Kg
Protection level:IP67
Insulation level:H
Service life:20000 hours

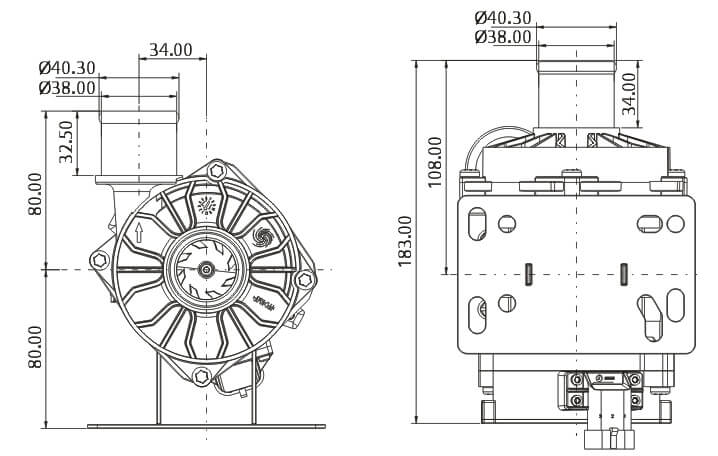

Inlet and outlet:38mm
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Power | Max Noise |
V | V | A | m | L/min | W | dB（A） |
24 | 12-30 | 10.5 | 24 | 100 | 252 | ≤60 |
24 | 12-30 | 12 | 25 | 110 | 288 | ≤60 |
