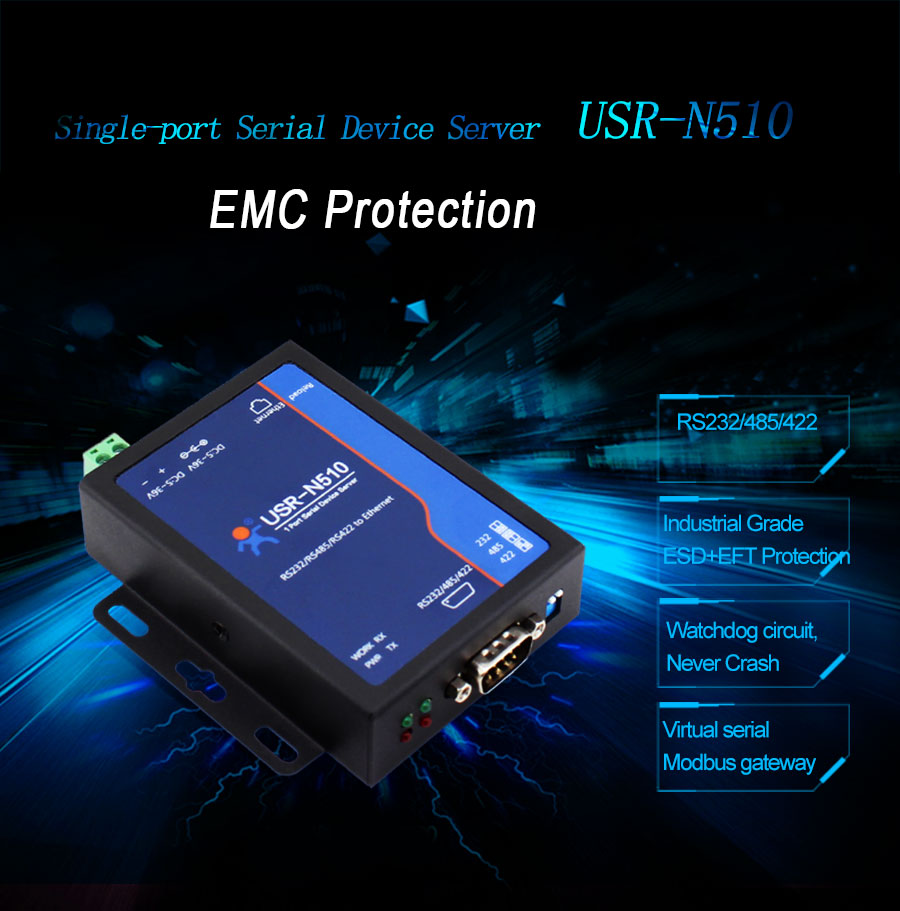

1 port Ethernet device servers USR-N510 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network. Simple settings via webpage or setup software can assign working details.
Ethernet device servers USR-N510 are based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
| Industrial Solution | TI Cortex M4 Solution, work temp at -40~85C |
| Power Supply | DC/Terminal type 5V~36V |
| Serial Port | RS232/RS485/RS422, 3-in-1 serial port |
| Serial Signal | RS232: TX/RX, CTS/RTS RS485:A/B/G |
| Flow Control | Software: XON/XOFF |
| Modbus Gateway | Modbus TCP to Modbus RTU in bi-directional Modbus Polling |
| Advanced Character | -Network Printing -Web socket: Serial to Webpage -Modify MAC -Hardware watchdog -ARP of server domain name |
| Certification | CE/FCC/RoHs/WEEE |
| Work Mode | TCP Server/ TCP client/ UDP Server/UDP Client/ httpsD Client |
| Built-in web page | Customized web page is acceptable |
| Protect | Surge Protection, ESD 2KV, for more harsh industrial environment |
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
