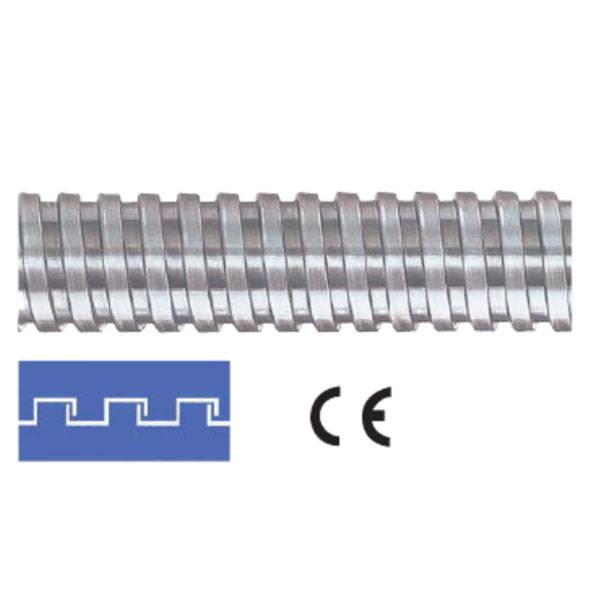

SPR-AS
| Material | Zinc plated steel belt wound, hooked profile |
| Properties | High flexible, stretch resistant latral compression resistant |
| Temperature Range | Max 220℃ |
| Protection Degree | IP40 according to EN60529 |
| Article no. | ID×OD | Bending radius | Weight | Packet |
| SPR-AS | mm×mm | mm±10% | kg/m±10% | units |
| SPR-AS AD10 | 8×10 | 28 | 0.064 | 50m |
| SPR-AS AD14 | 11×14 | 34 | 0.102 | 50m |
| SPR-AS AD17 | 14×17 | 40 | 0.130 | 50m |
| SPR-AS AD19 | 16×19 | 45 | 0.150 | 50m |
| SPR-AS AD21 | 18×21 | 50 | 0.173 | 50m |
| SPR-AS AD27 | 23×27 | 63 | 0.300 | 50m |
| SPR-AS AD36 | 31×36 | 85 | 0.526 | 25m |
| SPR-AS AD45 | 40×45 | 100 | 0.690 | 25m |
| SPR-AS AD56 | 51×56 | 125 | 0.820 | 25m |

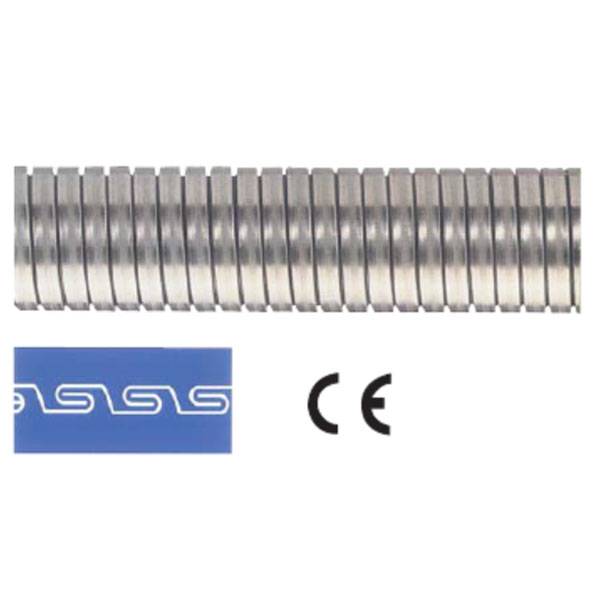

WEYERgraff-AS
| Material | Strip-wound galvanized metallic conduit, double overlapped profile |
| Properties | Very flexible, high tensile and twisting strength |
| Temperature Range | Max 220℃ |
| Protection Degree | IP40 |
| Article no. | ID×OD | Bending radius | Weight | Packet |
| WEYERgraff-AS | mm×mm | mm±10% | kg/m±10% | units |
| WEYERgraff-AS AD10 | 8×10 | 44 | 0.120 | 100m |
| WEYERgraff-AS AD14 | 12×14 | 45 | 0.130 | 100m |
| WEYERgraff-AS AD17 | 14×17 | 60 | 0.250 | 100m |
| WEYERgraff-AS AD19 | 16×19 | 63 | 0.280 | 100m |
| WEYERgraff-AS AD21 | 18×21 | 70 | 0.300 | 100m |
| WEYERgraff-AS AD27 | 24×27 | 90 | 0.390 | 50m |
| WEYERgraff-AS AD36 | 31×36 | 130 | 0.750 | 50m |
| WEYERgraff-AS AD45 | 40×45 | 170 | 0.950 | 50m |
| WEYERgraff-AS AD56 | 51×56 | 220 | 1.200 | 50m |
It has good flexibility, corrosion resistance, high temperature resistance, wear resistance and tensile resistance.
Good bending performance, smooth internal structure, easy to pass through when passing wires and cables.
