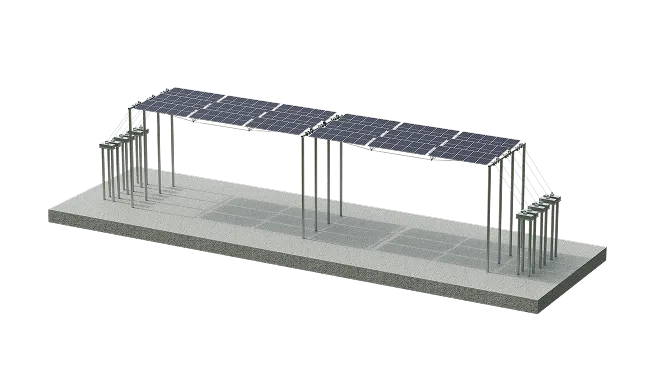

Application Scenarios Large-span rivers, large-area ponds, rugged mountains |
Longitudinal Span Single-layer cable can reach 25m, double-layer cable can reach 60m |
Force Characteristics Cable structures need to consider geometric nonlinearity, P-▲ effect, large displacement effect, temperature stress, etc. |
Module Layout nP form (n is the number of transverse modules, P is the number of longitudinal modules) |
Force Component Composition Column foundation, column, beam, load-bearing cable, diagonal rod, diagonal rod anchor foundation, etc. |
Support System Stabilizing cable, transverse inter-column support, load-bearing cable transverse connection system |
Anti-corrosion Form Divided into substrate surface hot-dip galvanized aluminum magnesium or hot-dip galvanized, cables can also be wrapped with PE material |
Wind Speed & Snow Load Values according to project location |
