Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
| Item number | 40606G |

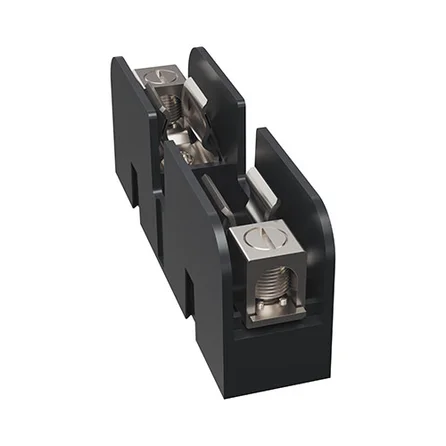

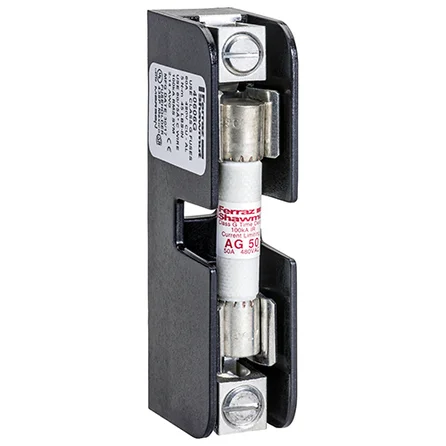

| Description | Fuse Block 480VAC 480VDC Class G 60A 1-Pole Box with Reinforced Clip |
| EAN/UPC Code | 782001675011 |
| Rated voltage AC UL | 480 V |
| Rated voltage DC UL | 480 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 60 A |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Class | Class G |
| Number of Poles | 1-Pole |
| Wiring range | Cu #10-14 |
| Fuse Installation Method | Clip-in |
| Torque Rating | 5.084 N m |
| Max Fuse Rating | 60 A |
| Installation Mounting | Direct Screw Mount |
| Product Width | 21.8 mm |
| Product Length | 96 mm |
| Product Height | 35.6 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.7167 kg |
| Sell Pack Width | 79.2 mm |
| Sell Pack Length | 269.7 mm |
| Sell Pack Height | 76.2 mm |
| Product group | Fuse Bases |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Product Weight | 0.068 kg |
