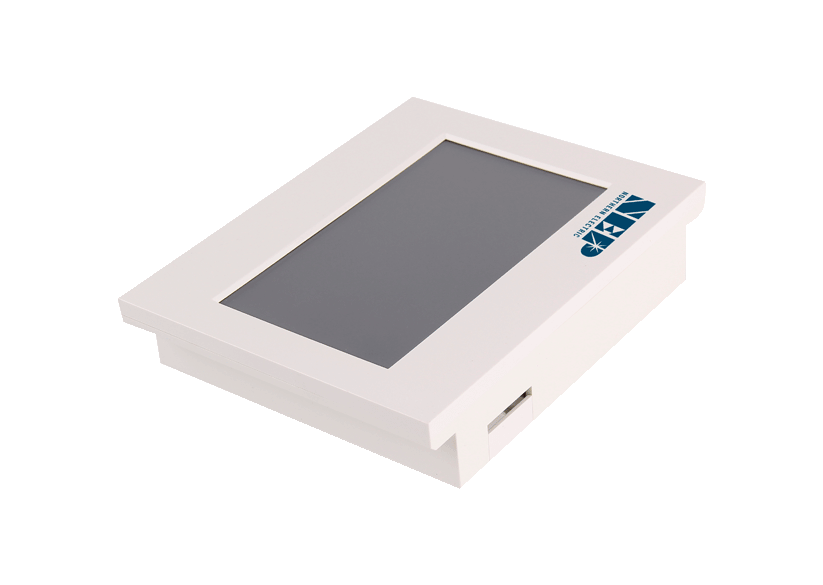

| Model | BDG-256P3 |
|---|---|
| Communication interface | |
| Communication with the microinverter | AC power line communication |
| Communication with RSD | DC power line |
| Ethernet | 10/100 Auto Detect, Auto Negotiation |
| USB | USB 2.0 interface, auto-detection, auto-negotiation |
| Monitoring capacity | 255 microinverters or RSD |
| Human interface | |
| Display | 7-in LCD touch screen |
| Power supply requirement | |
| Alternating current supply | Three-phase 208-380 VCA, 50/60 Hz |
| Consumed potence | Maximum 8 watts |
| Mechanical data | |
| Dimensions (LxWxH) | 7.83” x 6.34” x 1.81” (199 mm x 161 mm x 46 mm) |
| Weight | 5.29 oz (150g) |
| Ambient temperature range | -40 ?C a +55 ?C (-40 ? a 131 ?F) -40 ?C a +49 ?C (-40 ? a 120 ?F) if installed in an enclosure |
| Cooling | Natural convection – no fans |
| Environmental Rating | IP30. For installation indoors or in an NRTL-certified, NEMA type 3R enclosure. |
| Other features | |
| Standard warranty period | 1 year |
| Certifications | UL 60950-1 2 Edition Rev Dec 19, 2011 CSA C22.2 2 nd nd Edition Rev Dec 19, 2011 FCC Part 15 Class B AS/NZS 60950.1:2011 Inc A1 AS/NZS CISPR 22: 2009+A1:2010 EN 60950-1:2006+A11:2009+A1:2010+A12:2011 EN 55022:2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN 55024:2010 EMC Directive 2004/108/EC |
