Introduction of Cost-effective UART GSM Modules
Cost-effective UART GSM Modules USR-GPRS232-7S3 are used for data transparent transmission, which are highly-integrated UART to GSM/GPRS modules. Users can easily make communication with it among serial device, cellphone and network device. USR-GPRS232-7S3 is based on USR-GM3 gprs module. Clients can use the product to realize bidirectional transparent transmission from serial port to network through simple AT command.
Features of Cost-effective UART GSM Modules USR-GPRS232-7S3
Support GSM850/900,DCS1800/1900
Support GSM/GPRS and 2G/3G/4G card, but don’t support 3G/4G network
Support 2 sockets, Support TCP and UDP
4KB cache for each of sockets, user can choose to cache data or not
Support register packet and heartbeat packet
Support setting parameters via SMS message
Support multi work modes: SMS transmission mode, network transmission mode and httpsD mode
Support basic and extend AT command sets
Support class RFC2217, can dynamically modify serial parameter of module via network
Support flow control: RTS/CTS

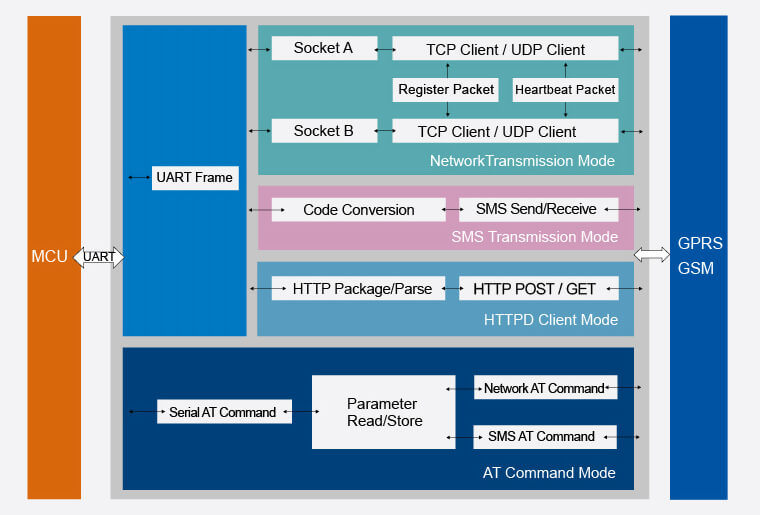

Function Structure of Cost-effective GSM Modules

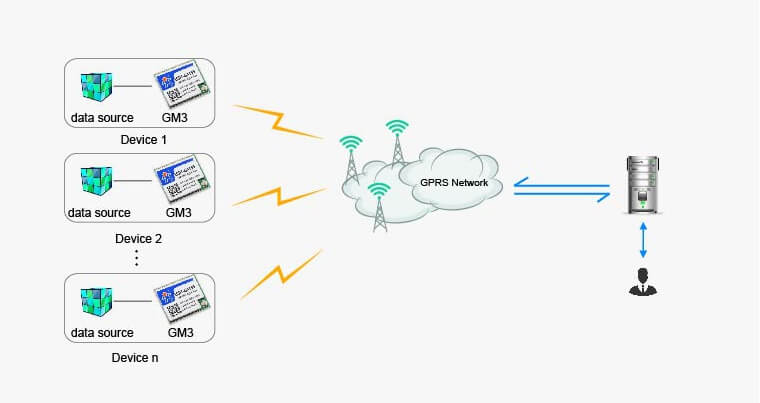

Application Field of Cost-effective GSM Modules
Power industry: power remote meter reading, substation monitoring, power line monitoring
Municipal industry: street lamp remote monitoring management, pipe network remote monitoring, urban energy consumption monitoring
Oil industry: remote monitoring of oil-gas well, GPRS remote oilfield automation detection monitoring system, Gas pipe network monitoring system solutions
Environmental protection industry: pollution sources monitoring, atmospheric environment monitoring, noise monitoring, dust monitoring
Agricultural application: greenhouse remote monitoring and management, aquaculture monitoring management, agricultural water pump monitoring management
