The Virtue 96V LiFePO4 battery system is designed specifically for photovoltaic, commercial and industrial energy storage applications. As a high voltage LiFePO4 battery manufacturer with multiple successful lead acid replacement cases, we provide high voltage lithium batteries ranging from 96V to 1000V and 5kWh to 1000kWh, widely used for UPS, home energy storage, industrial energy storage, commercial energy storage systems, etc.
Voltage range (V): 87~108V
Cell specification: 3.2V304Ah
Module specification: 15S1P
Number of series and parallel: 15S1P*2
Rated voltage (V): 96V
Rated capacity (Ah): 304
Rated energy (kWh): 29.1
Maximum output power (kW): 19.2
Maximum discharge current (A): 200
Standard charge current (A): 100
Discharge cut-off voltag (V): 87
Maximum charging voltage (V): 108
Cycle life (25℃ ,0.5C/1C,100%DOD): >6000
Charging temperature (℃ ): 0~55
Discharging temperature (℃ ): -15~55
Operating humidity: <95%R.H
Communication method: CAN/RS485
Dry contact: Customize
Battery size (W*D*H,mm): 442*680*235

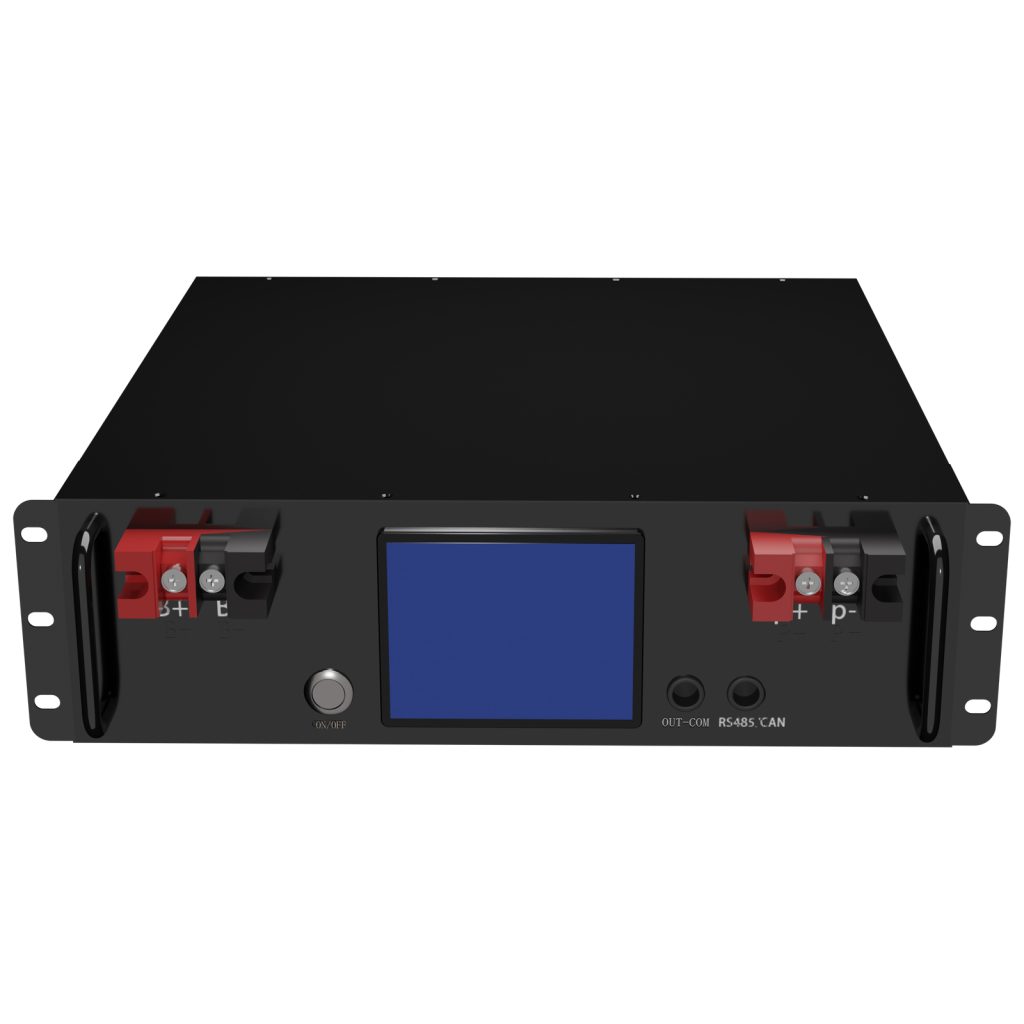

Control box size (W*D*H,mm): 442*440*130

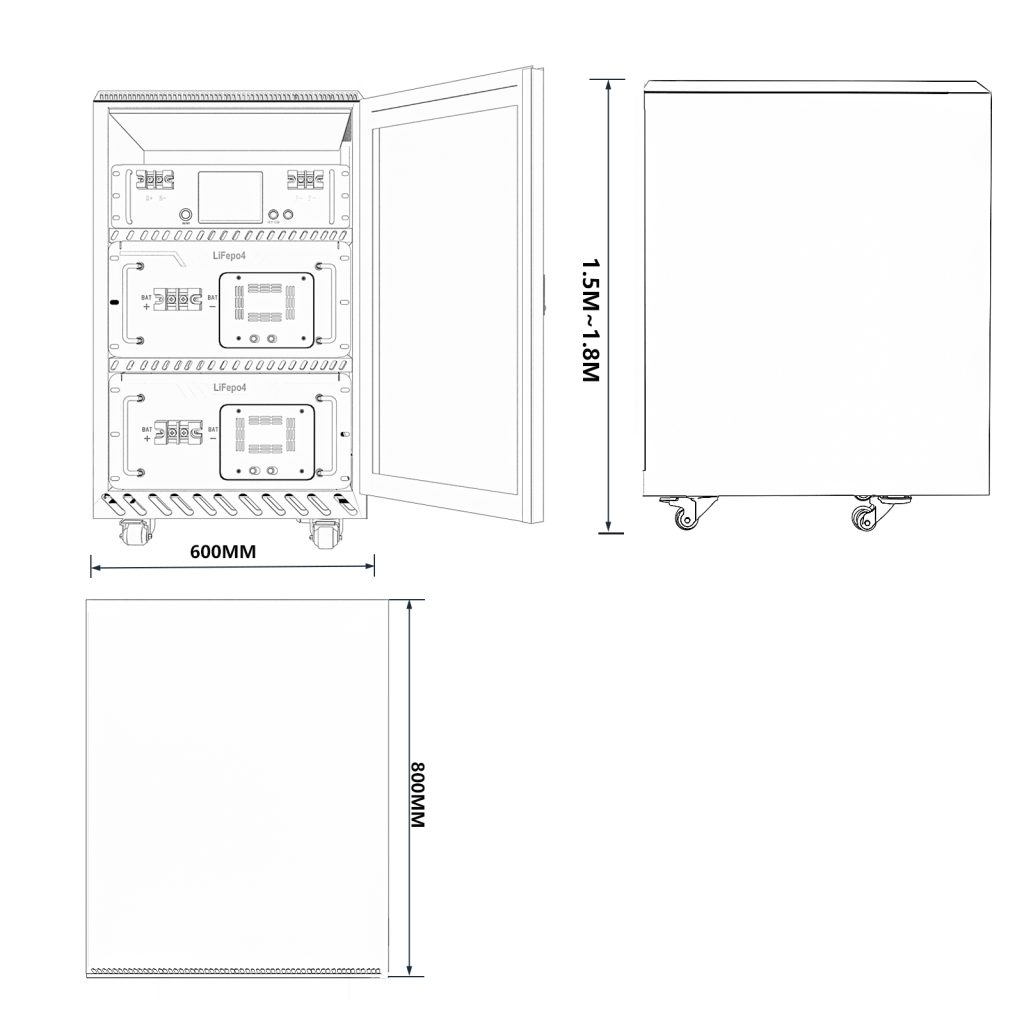

Cabinet size (W*D*H,mm): 600*800*1500
Protection rating: IP20
Weight (kg): Around270
Certification: CE/UN38.3
?Long service life (Capable of charging and deep discharging for over 6000 times which is 10 times that of lead-acid batteries)
?Higher conversion efficiency (Charging and discharging efficiency up to 99% with minimal energy conversion loss)
?Full protection (Built in intelligent battery management system providing comprehensive protection)
?Easy installation (Standardized design of battery modules for easy installation)
?Flexible expansion (Supports serial connection of 20 identical modules for future expansion)
?Data visualization(Battery data can be viewed through a touchable LCD screen)
?Perfect compatibility (Can be used in conjunction with mainstream brand inverters on the market)
?Remote upgrading (Easy maintenance with remote intelligent upgrade)
Strictly comply with international applicable safety standards: IEC62619, ROHS, CE-EMC, MSDS, UN38.3
Virtue 96V LiFePO4 battery is composed of EVE A-grade 3.2v 304ah LiFePO4 battery cells with a cycle life of over 6000 cycles. As a result, battery replacement costs are reduced, and it helps you to earn more profit.
The built-in intelligent 200A BMS monitors the battery status in real-time and collects data. The battery management system provides multiple protection functions to ensure the safe operation of the 96V battery.
The 96V high voltage battery module is welded by a laser welding machine with good consistency. The arrangement and spacing of the internal LiFePO4 battery cells are reasonable with uniform heat dissipation.
As a reliable Chinese manufacturer of high voltage lithium battery, we are committed to providing you with efficient high voltage LiFePO4 batteries with a voltage range of 96V to 1000V at the most competitive price. We customize solutions of replacing lead acid batteries with LiFePO4 batteries on different voltages and capacities based on your specific needs.
When replacing LiFePO4 batteries, it is required to match the voltage of the original lead acid batteries. Please provide us with information about the lead acid battery used in your system and make requests. We will provide you with a perfect Lead Acid Replacement solution.
The Virtue 96V high voltage LiFePO4 battery is matched with the 96V inverter.
96V 304Ah battery can load 19.2KW of equipment.
Our high voltage solar battery enjoy a 10-year warranty.
Please click on ‘Contact Us‘ to send an email to learn more about becoming a Virtue battery distributor.
