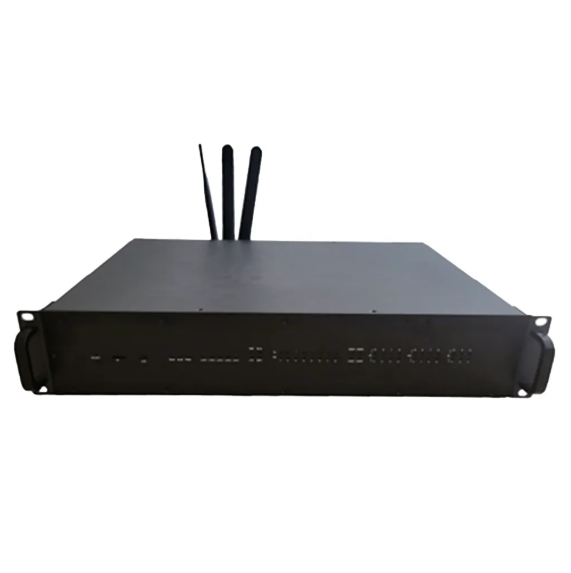

| Description | Specification | Product Type: CF-IPLES-1750K3440LC |
|---|---|---|
| Basic Information | Product Type | Ts-emu |
| Processor | NxP Im x 8 m Mini 4 Arm Cortex-a53 1.6 gh | |
| Ram | 4 gbyte Lpddr4 | |
| Operating System | Linux | |
| Storage | 32 gb Emmc Flash | |
| Power Supply | Dc 24 vdc | |
| Port | Di | 8way, supporting passive trunk nodes, 24 vdc |
| Do | 8way, supporting passive trunk nodes, 24 VDC | |
| Ai | 6 channels, input signal: 4-20mA/0-10 | |
| Usb Otg | 1 Waymicro, USB 2.0 | |
| Rs 485 | 8 way (1way And Rs232 Multiplexing), Supporting Modbus Rtu, Dl/t 645 Protocols | |
| Ethernet | 5way, 10/100mbps, Supporting Mqtt, Iec104, Modbustcp Protocols | |
| HDMI | HDMI Version: 1.4, Level 3 Electrostatic Protection | |
| Can | 2 Way Can 2.0b | |
| Minisd | Support | |
| Wi-fi | Integrated Wi? Moduel, u? Antenna 802.11 n | |
| Audio | Dual Channel Audio, For Headphone or Speaker | |
| Operating Temperature | -30~75°c | |
| Storage Temperature | -40~75°c | |
| Protecting Class | IP 20 | |
| Anti-corrosion Grade | C1 | |
| Size (WxDxH) | 479×300×88 mm | |
| Installation Method | Rack | |
| Weight | 5 kg |
