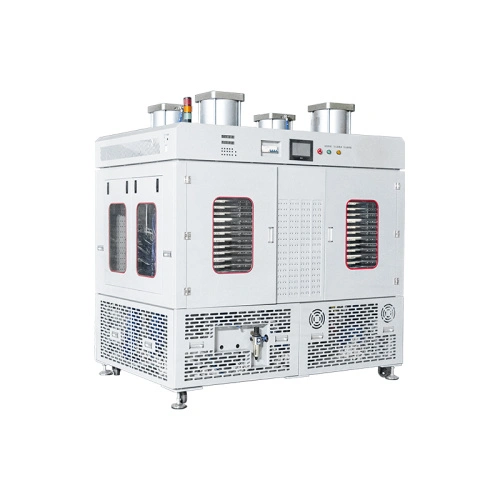

SRY12-1024-3A-4-3T(BC) Thermal Press Fixture Formation Equipment
Core Functional Highlights
?Layered Temperature Control System
The
Lithium Ion Battery Tester is equipped with 4 sets of fixtures, each with a temperature control system of 17 independent temperature-controlled heating plates to uniformly control temperature from room temperature to 90℃ (±2℃).
Each layer will be equipped with a temperature probe to monitor temperature during the testing to assure temperature is uniform throughout the cells.
Precision Pressure Control
Air-tight independent pressurization for 4 sets of fixtures with 5 stage pressure settings.
The 4-tier weight-reduction design of the layer plates ensures pressure control accuracy of ±10kg.?
Pneumatic pressurization in the system incises reliable electrical contact between the electrodes and the cells.
High-Density Testing Capability
The Lithium Ion Battery Tester has the ability to test 1024 channels simultaneously allowing for high demand of mass production polymer test cells.?
It also has a wide current range of 6mA - 3A supporting low activation current processes.?
The four-wire measurement method eliminates contact resistance errors with a voltage measurement accuracy of ±0.1% FS.?
Technical Advantages
Safety Protection System
Five Levels of Hardware Protection: Overvoltage, undervoltage, overcurrent, overtemperature, and leakage current protection.?
Intelligent Software Protection: Capacity deviation protection and power-off continuation function.?
Mechanical Safety Design: Light grid safety door, layered insulation and heat preservation structure.?
Application Scenarios
Mass Production of Pouch Batteries: Suitable for small-sized cells with dimensions of 5-60mm×5-50mm
R&D High-Energy-Density Batteries: It supports testing of pressure-sensitive materials.?
Process Optimization: Results in correlation between pressure, temperature, and capacity.?
Consistency Screening: Automatic sorting based on factors such as open-circuit voltage and capacity.?
This
Battery Charge Discharge Test Equipment provides a highly effective approach to polymer battery production through layered temperature control, precision pressurization, and high-density design. It has capability to customize the fixture and a 72-hour rapid response to service all in effort to sustain R&D and production time.
